Date Code 20151029 Protection Manual SEL-411L Relay
Installation
Jumpers
Positions D and A are for SEL use. Figure 2.14 shows the jumper header with
the circuit breaker/control jumper in the ON position and the password jumper
in the OFF position; these are the normal jumper positions for an in-service
relay. Table 2.4 lists the jumper positions and functions.

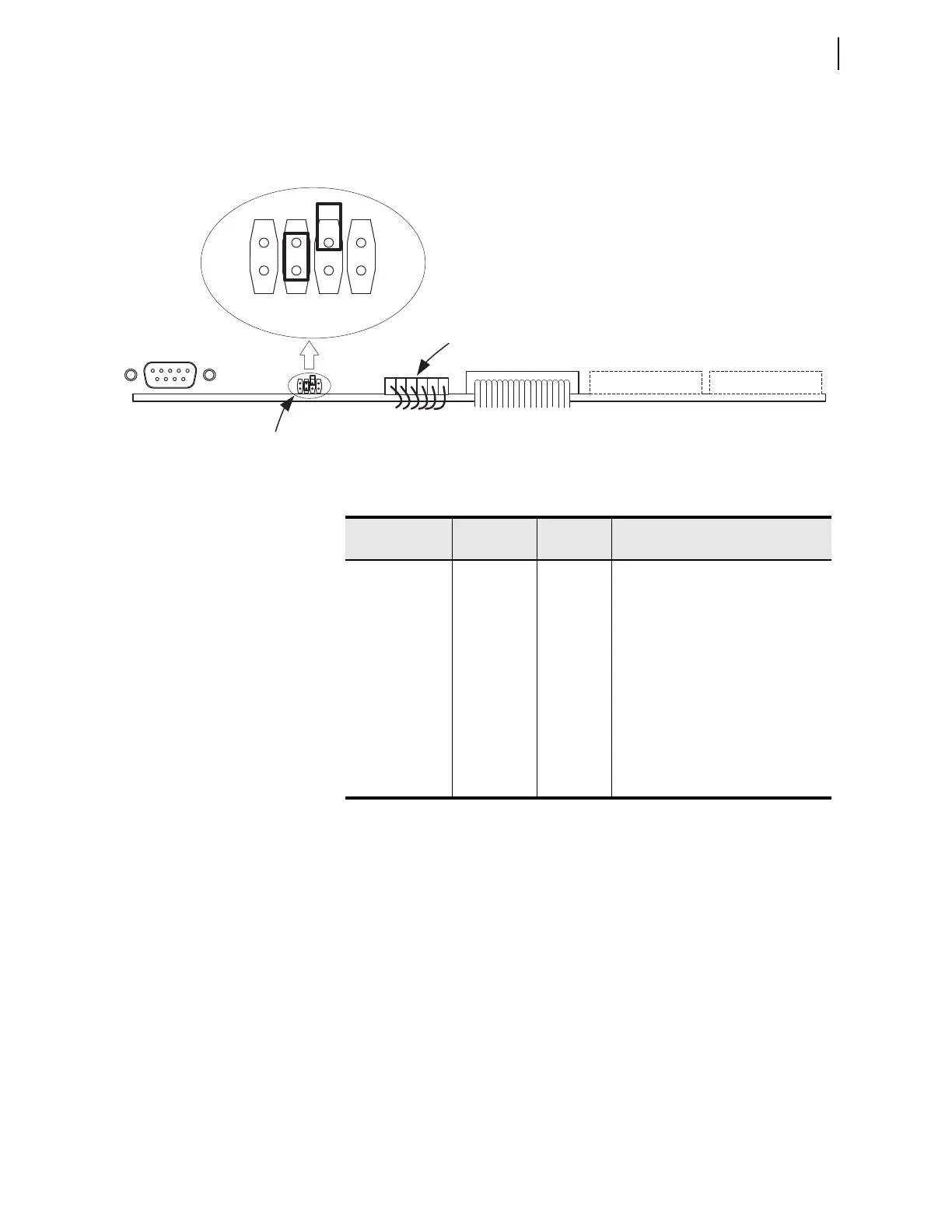

Figure 2.14 Jumper Location on the Main Board
The password disable jumper, PASSWORD, is for temporary or emergency
suspension of the relay password protection mechanisms. Under no
circumstance should you install PASSWORD jumper on a long-term basis. To
ensure the PASSWORD jumper, in particular, is not inadvertently left in the
ON position, the relay asserts Relay Word bits PASSDIS and BRKENAB to
indicate the presence of the password disable jumper (PASSDIS) and the
breaker jumper (BRKENAB). The relay ships with password disable jumper
PASSWORD OFF (passwords enabled). For temporary unprotected access to
a particular access level, use the PAS n DISABLE command (n is the access
level: n = 1, B, P, A, O, 2). For more information on this command and setting
passwords, see Password on page P.7.13.
The circuit breaker control enable jumper, BREAKER, supervises the
CLOSE n command, the OPEN n command, the PULSE OUTnnn
command, and front-panel local bit control. To use these functions, you must
Jumper Location
5 4 3 2 1
9 8 7 6
Power Connector
J18
ON
OFF
PASSWORD
BREAKER
ON
OFF
A
B
C
D
D
A
Table 2.4 Main Board Jumpers
Jumper
Jumper
Location
Jumper
Position
a
a
ON is the jumper shorting both pins of the jumper. Place the jumper over one pin only for OFF.
Function
A Front OFF For SEL use only
PASSWORD Front OFF Enable password protection
(normal and shipped position)
ON Disable password protection
(temporary or emergency only)
BREAKER Front OFF Disable circuit breaker commands
(OPEN and CLOSE) and output
PULSE commands
b
b
Also affects the availability of the Fast Operate Breaker Control Messages and the front-panel
LOCAL CONTROL > BREAKER CONTROL, and front-panel LOCAL CONTROL >
OUTPUT TESTING
screens.
ON Enable circuit breaker commands
(OPEN and CLOSE) and output
PULSE commands
b
(shipped position)
D Front OFF For SEL use only
