Sel 411L - Figure 3.69 ESS:= Y, Tapped Line; Table 3.51 ESS:= Y, Tapped Line

P.3.117
Date Code 20151029 Protection Manual SEL-411L Relay
Protection Functions
Current and Voltage Source Selection

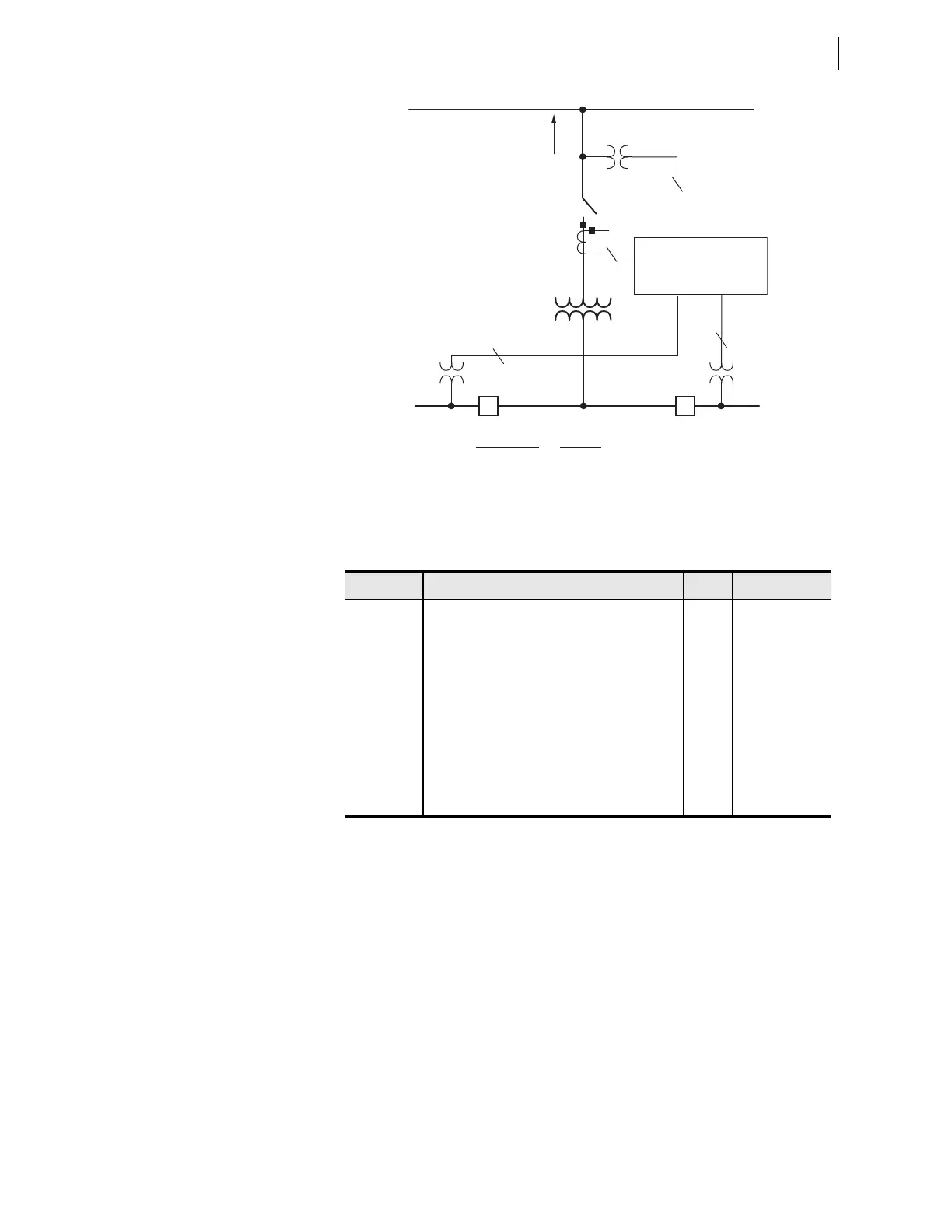

Figure 3.69 ESS := Y, Tapped Line
Single Circuit Breaker With Current Polarizing Source
Figure 3.70 shows a single circuit breaker situated by an autotransformer. The
relay uses the delta-connected tertiary as a current polarizing source for the
zero-sequence current-polarized directional element 32I. For example,
connect to current to input IAX (set IPOL
:= IAX).
Table 3.51 ESS := Y, Tapped Line
Setting Description Entry Comments
NUMBK Number of circuit breakers in scheme (1, 2) 2
LINEI Line current source (IW, COMB) IW
ALINEI Alternate current source (IX, NA) NA
ALTI Alternate current source (SEL
OGIC equation) NA Hidden
a
a
Hidden when preceding setting is NA.
BK1I Breaker 1 current source (IW, IX, NA) NA
BK2I Breaker 2 current source (IX, COMB, NA) NA
IPOL Polarizing current (IAX, IBX, ICX, NA) NA
ALINEV Alternate line voltage source (VZ, NA) NA Default
ALTV Alternate voltage source (SEL
OGIC equation) NA Hidden
(HV)
(LV)
MOD
Relay
IW
VY
1
1
3
3
VAZ
VBZ
CB2CB1
Analog Input
IW
VY
VAZ
VBZ
Function
Line protection
Line protection
Synchronism check Circuit Breaker 1
Synchronism check Circuit Breaker 2
Tripping
Direction
