Sel 411L - Figure 10.16 Assigning an Additional Close Output: AC SEL ERATOR Quickset

P.10.26
SEL-411L Relay Protection Manual Date Code 20151029
Basic Relay Operations
Operating the Relay Inputs and Outputs

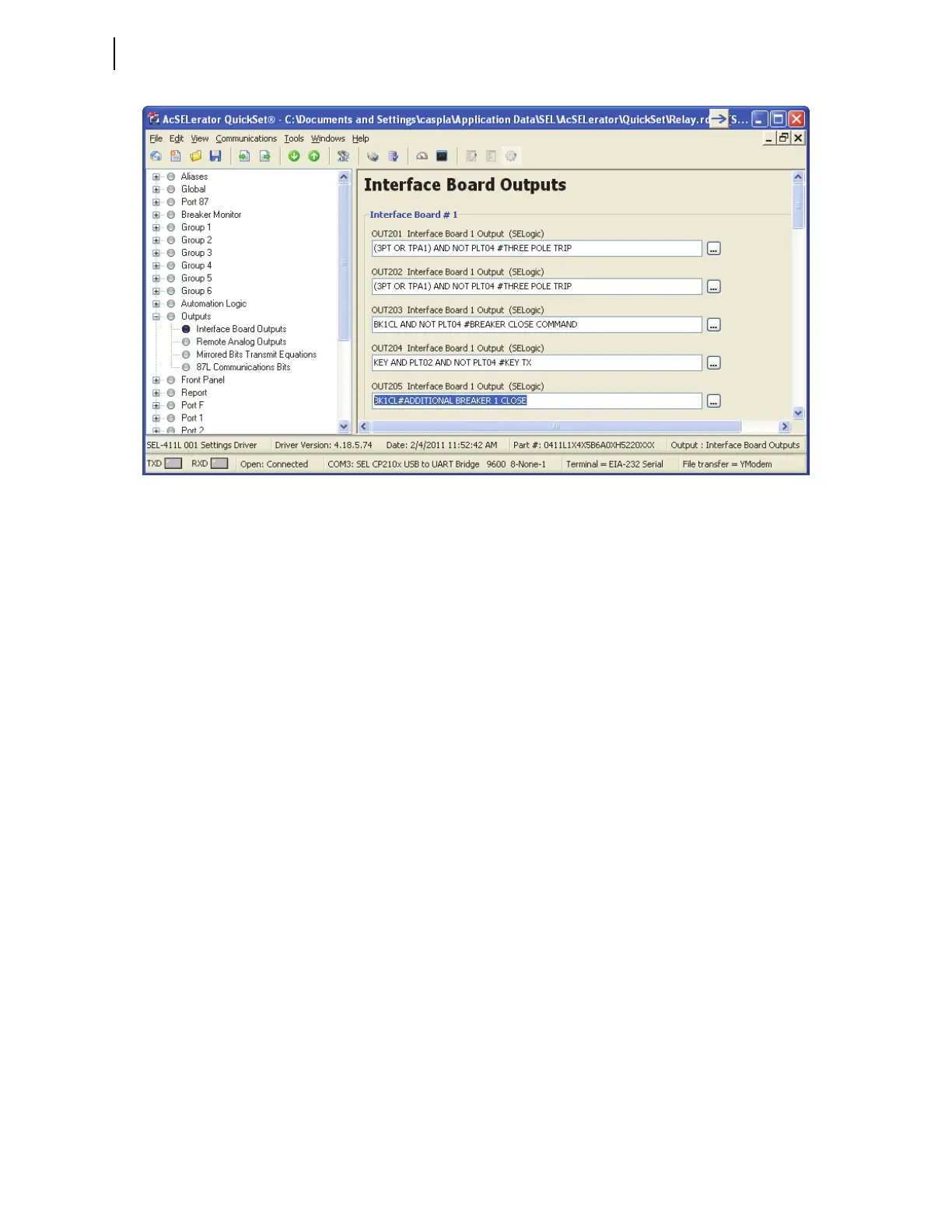

Figure 10.16 Assigning an Additional Close Output: ACSELERATOR QuickSet
Step 5. Assign a control output for the close bus.
a. In the Interface Board Outputs dialog box, click the
OUT205 text box and type the following:
BK1CL #ADDITIONAL BREAKER 1 CLOSE
(The # indicates that a comment follows.)
b. Click or tab to another text box.
ACSELERATOR QuickSet checks that your entry is
valid.
Step 6. Click File > Save to save the new settings in
ACSELERATOR
QuickSet.
Step 7. Upload the new settings to the relay.
a. Click File > Send.
ACSELERATOR QuickSet prompts you for the settings
class or instance you want to send to the relay.
b. Click the check box for Outputs as shown in the first
dialog box of Figure 10.17.
c. Click OK.
ACSELERATOR QuickSet responds with the second
dialog box of Figure 10.17.
If you see no error message, the new settings are loaded
in the relay.
