Bay Control
Bay Control Front-Panel Operations

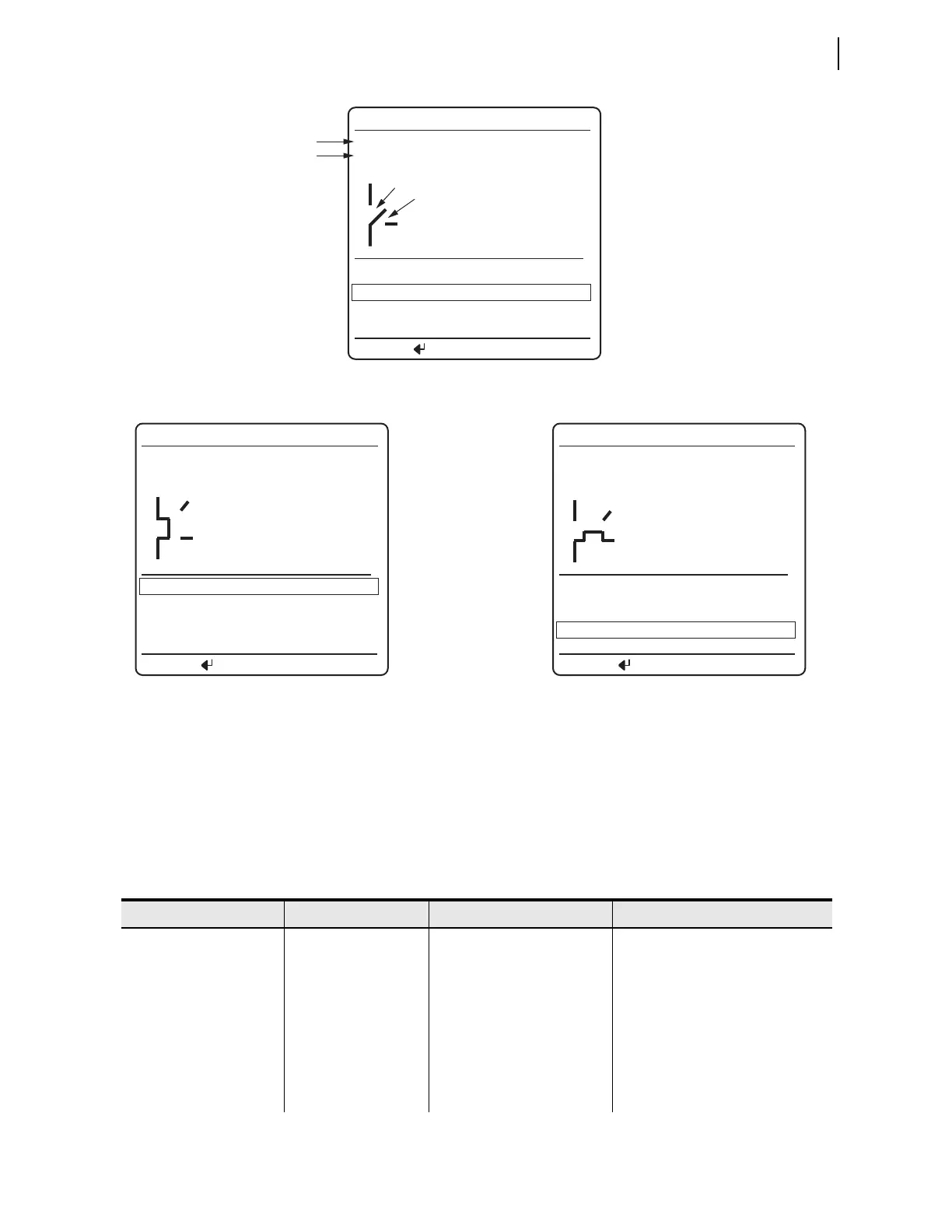

Figure 12.15 Three-Position Disconnect Control Screens
The three-position disconnect logic is identical to two standard disconnects,
but control actions are limited as shown in Table 12.5. A control action is only
available if the disconnect name is listed next to the action as indicated in the
Control Options Displayed column. For example, in the second set of control
actions, where Disconnect SW3 is closed and Disconnect SW4 is open, the
only control actions available are to open or close Disconnect SW3.
Figure 12.15 (b) shows the control screen for this condition.
BAYNAME
OPEN
CLOSE SW3
CLOSE SW4
OPENED SW3
OPENED SW4
SW3
SW4
PRESS TO ACTIVATE
In-Line Disconnect
Ground (perpendicular) Disconnect
BAYNAME
OPEN SW4
CLOSE
CLOSE SW4
OPENED SW3
CLOSED SW4
SW3
SW4
PRESS TO ACTIVATE
BAYNAME
OPEN SW3
CLOSE SW3
CLOSE
CLOSED SW3
OPENED SW4
SW3
SW4
PRESS TO ACTIVATE
Status of the in-line
disconnect SW3
Status of the ground
disconnect SW4
(a) Three-Position Disconnect Open
(b) Three-Position Disconnect Closed In-Line (c) Three-Position Disconnect Closed to Ground
Table 12.5 Three-Position Disconnect Switch Control Screen Status and Control Options (Sheet 1 of 2)
State of Disconnects Status Displayed Control Options Displayed Control Actions Available
Disconnect SW3: Open
Disconnect SW4: Open
OPENED
OPENED
SW3
SW4
CLOSE SW3
OPEN
a
CLOSE SW4
CLOSE SW3
NO OPEN CONTROL
CLOSE SW4
Disconnect SW3: Closed
Disconnect SW4: Open
CLOSED
OPENED
SW3
SW4
CLOSE SW3
b
OPEN SW3
CLOSE
CLOSE SW3
OPEN SW3
NO CONTROL for SW4
Disconnect SW3: Open
Disconnect SW4: Closed
OPENED
CLOSED
SW3
SW4
CLOSE
OPEN SW4
CLOSE SW4
c
NO CONTROL for SW3
OPEN SW4
CLOSE SW4
