Sel 411L - Table 1.1 Communications Cards Options (Excluding EIA-232 Card)

P.1.7
Date Code 20151029 Protection Manual SEL-411L Relay
Introduction and Specifications
Models and Options
Table 1.1 summarizes the communications cards options (see Section 2:
Installation for more information).

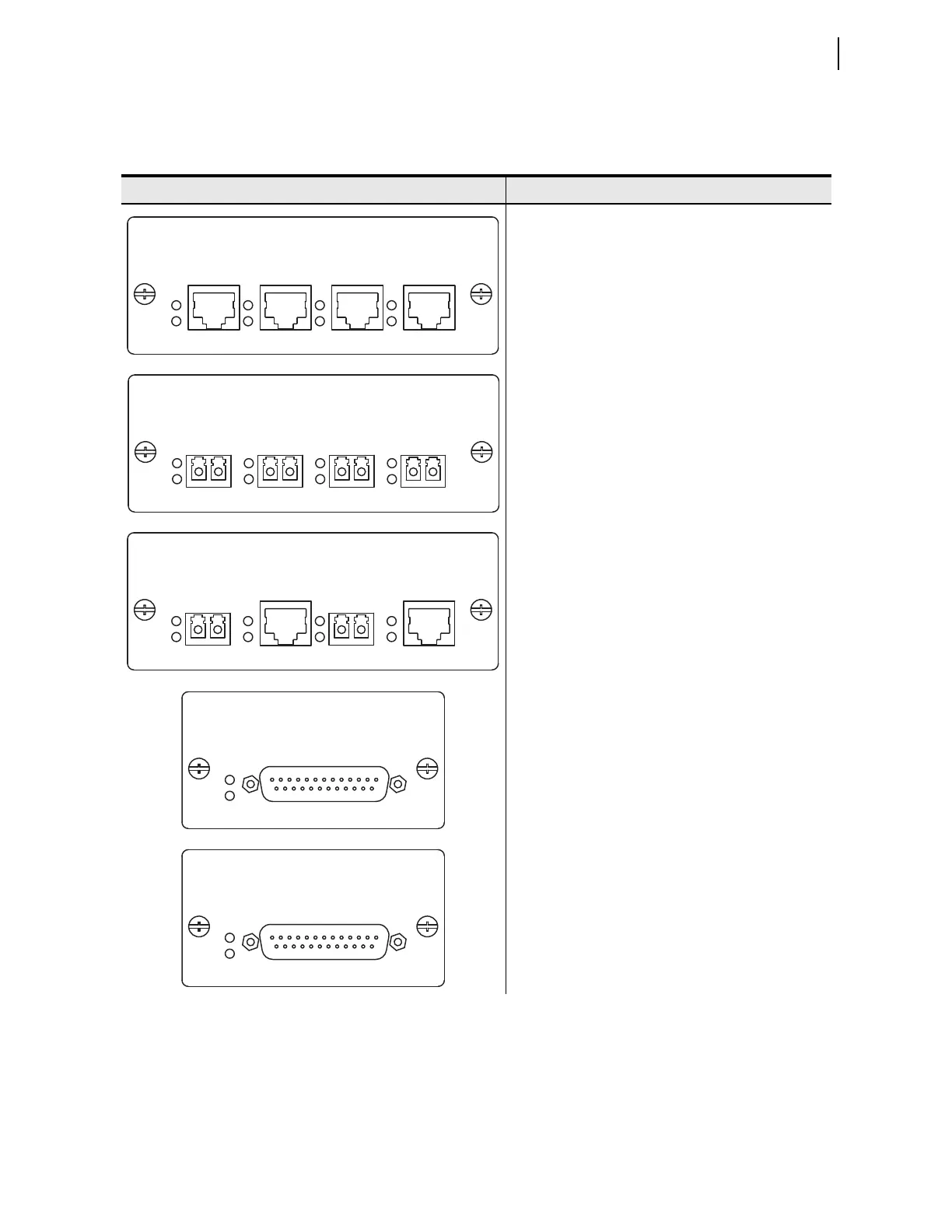

Table 1.1 Communications Cards Options (Excluding EIA-232 Card) (Sheet 1 of 2)
Card Description
Communication: 10/100BASE-T, Ethernet
Communications Medium: copper
Connector Type: RJ45
Bay Position: Bay 3
Model Option Table Digit: 6
Communication: 100BASE-FX, Ethernet
Communications Medium: fiber
Connector Type: LC
Bay Position: Bay 3
Model Option Table Digit: 7
Communication: 100BASE-FX/10/100BASE-T, Ethernet
Communications Medium: fiber/copper
Connector Type: LC/RJ45
Bay Position: Bay 3
Model Option Table Digit: 8
87L Communication: EIA-422, Serial
Communications Medium: copper
Connector Type: DB-25
Bay Position: Bay 1 or 2
Model Option Table Digit: A
87L Communication: G.703, Serial
Communications Medium: copper
Connector Type: DB-25
Bay Position: Bay 1 or 2
Model Option Table Digit: B
ACT
PORT 5DPORT 5CPORT 5A PORT 5B
10/100BASE-T
LNK
ACT
LNK
ACT
LNK
ACT
LNK
ACT
ACT
PORT 5C PORT 5DPORT 5BPORT 5A
100BASE-FX
LNK
ACT
LNK
ACT
LNK
ACT
LNK
ACT
PORT 5DPORT 5CPORT 5A PORT 5B
10/100BASE-T / 100BASE-FX
LNK
ACT
LNK
ACT
LNK LNK
ACT
ACT
EIA-422
TX
RX
1
25
G.703
TX
RX
1
25
