Sel 411L - Figure 3.118 Logic that Determines Positive-Sequence Impedance Trajectory (EOOS = Y1)

P.3.176
SEL-411L Relay Protection Manual Date Code 20151029
Protection Functions
Out-of-Step Logic (Zero Settings)

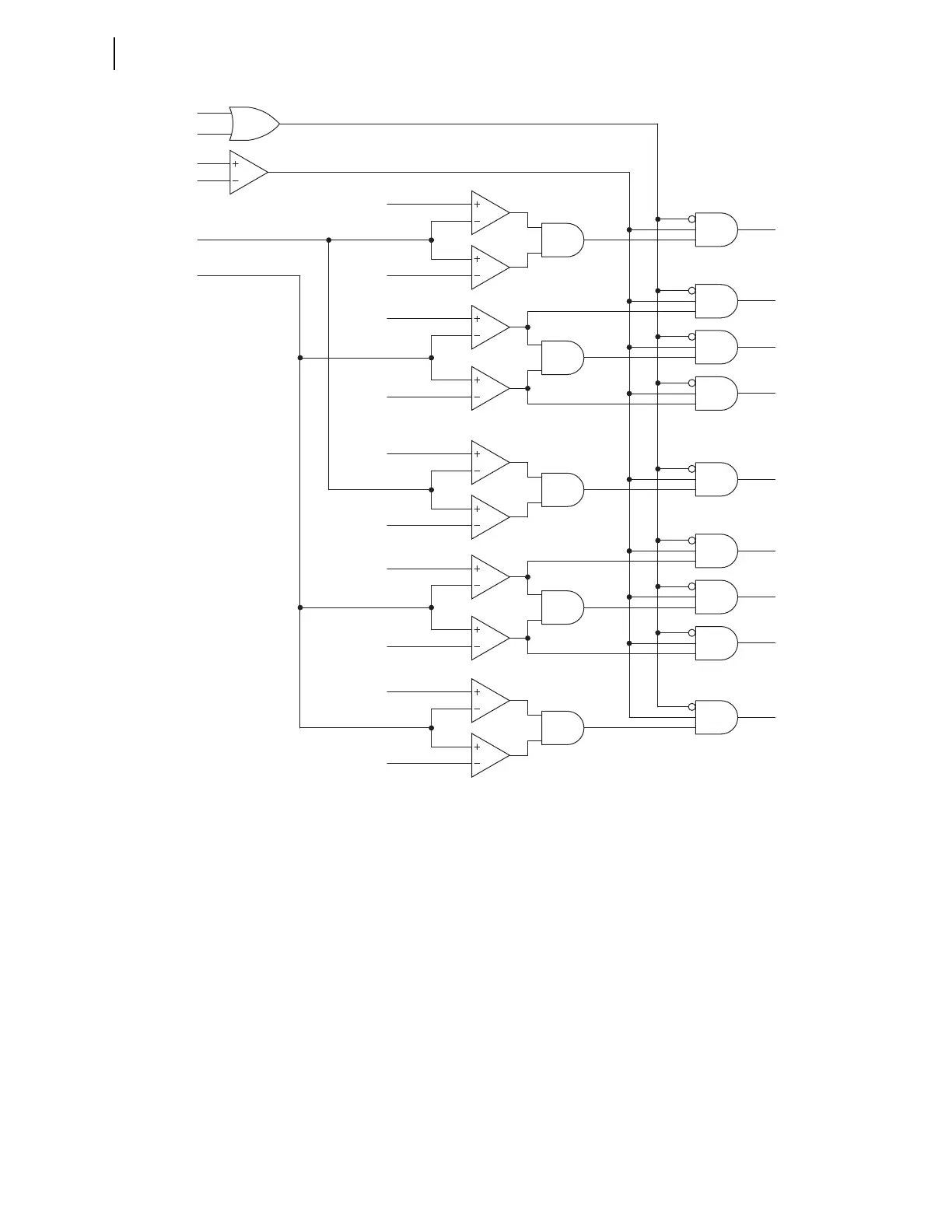

Figure 3.118 Logic that Determines Positive-Sequence Impedance Trajectory (EOOS = Y1)
Figure 3.119 shows the logic for the different EOOST settings (EOOST = N,
I, O, C) when EOOS = Y1. Setting EOOST = N turns gate AND 1 off. When
AND 1 turns off, all three outputs (OSTI, OST, and OSTO) are also turned off.
IA1LFM
X1T7_C
X1B7_C
R1R7_C
R1L7_C
X1T6_C
X1B6_C
R1R6_C
R1L6_C
R1RB_C
R1LB_C
Re (Z1)
Im (Z1)
3PO
ILOP
50ABCP
(setting)
X7T
X6T
RR7
R7T
RL7
RR6
R6T
RL6
R1T
