Sel 411L - Figure 13.5 Setting OUT108 in AC SEL ERATOR Quickset

P.13.7
Date Code 20151029 Protection Manual SEL-411L Relay
Time-Synchronized Measurements
Configuring High-Accuracy Timekeeping
Figure 13.4 Programming a PSV in ACSELERATOR QuickSet
Step 6. Configure a control output to alarm a loss of HIRIG mode.
a. In the Settings tree view, double-click Outputs and
then click Interface Board Outputs (see Figure 13.5).
b. In the OUT208 Interface Board Outputs text box,
enter the OR NOT PSV01 condition to the preexisting
OUT208 := NOT (SALARM OR HALARM) equation,
as shown in Figure 13.5.

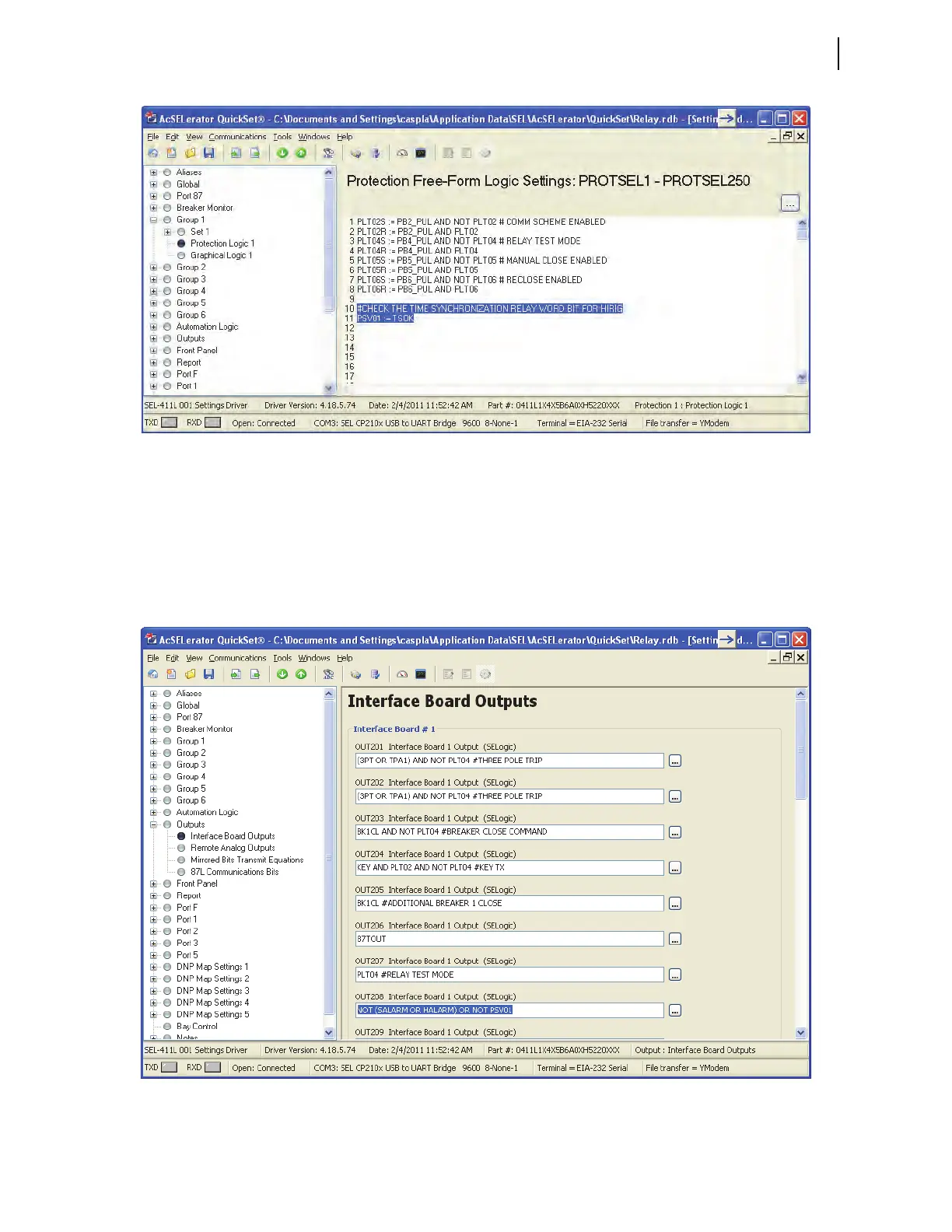

Figure 13.5 Setting OUT108 in ACSELERATOR QuickSet
