Sel 411L - Figure 12.44 Left Breaker Bay Without Ground Switch (Option 15); Figure 12.45 Right Breaker Bay Without Ground Switch (Option 16)

P.12.45
Date Code 20151029 Protection Manual SEL-411L Relay
Bay Control
Predefined Bay Control One-Line Diagrams

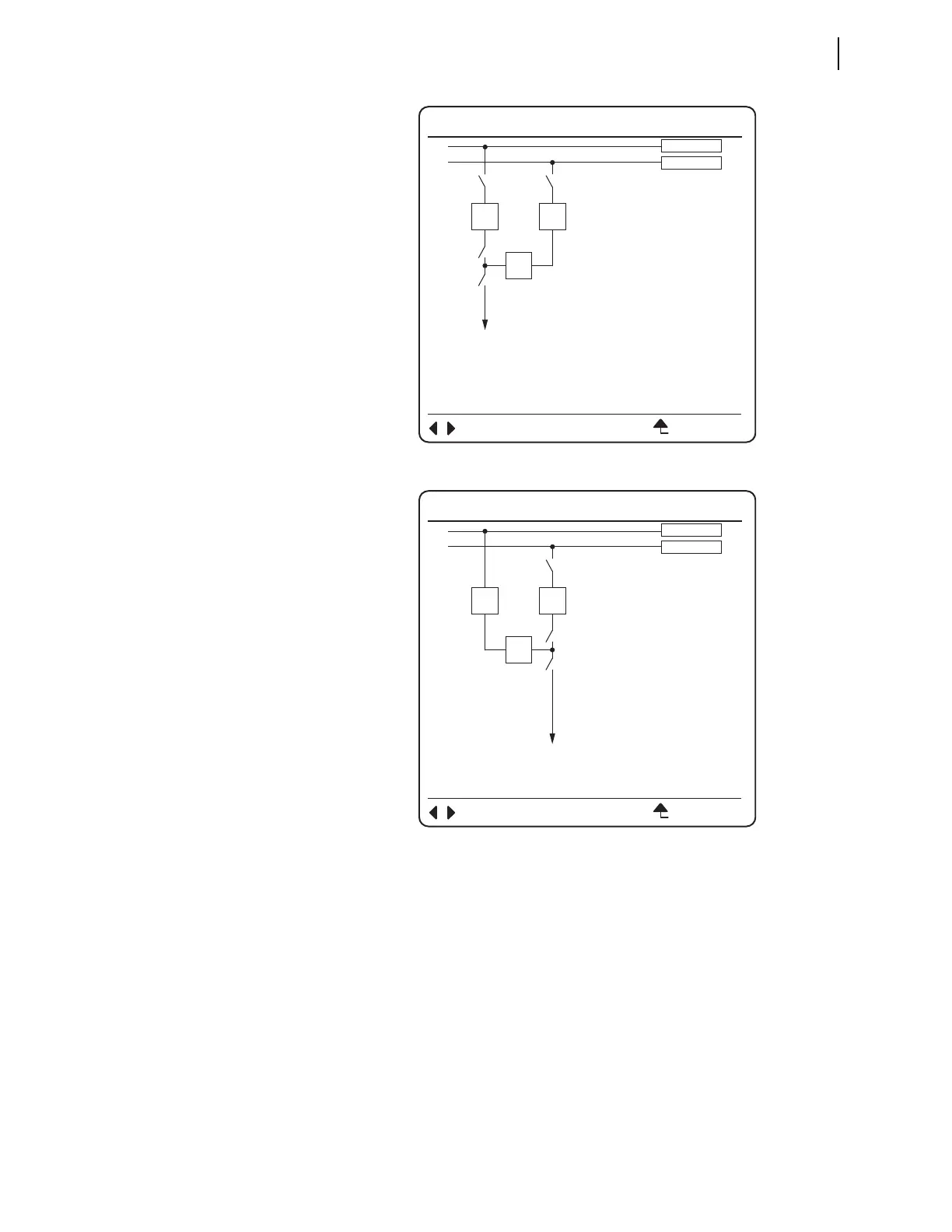

Figure 12.44 Left Breaker Bay Without Ground Switch (Option 15)
Figure 12.45 Right Breaker Bay Without Ground Switch (Option 16)
BAYNAME
BUSNAM1
AQ_1
AQ_2
AQ_3
AQ_4
AQ_5
AQ_6
ESCNAVIG
BUSNAM2
SW3
SW2
BK1 BK3
BK2
SW1
BAYNAME
BUSNAM1
ESCNAVIG
BUSNAM2
SW3
SW2
BK1BK3
BK2
SW1
AQ_1
AQ_2
AQ_3
AQ_4
AQ_5
AQ_6
