Highlight a relay setting in the A database, select Copy or Move, and click the
“>” button to create a new relay setting in the B database. Reverse this process
to take relay settings from the B database to the A database. Copy creates
identical relay settings that appear in both databases. Move removes the relay
settings from one database and places the settings in another database.

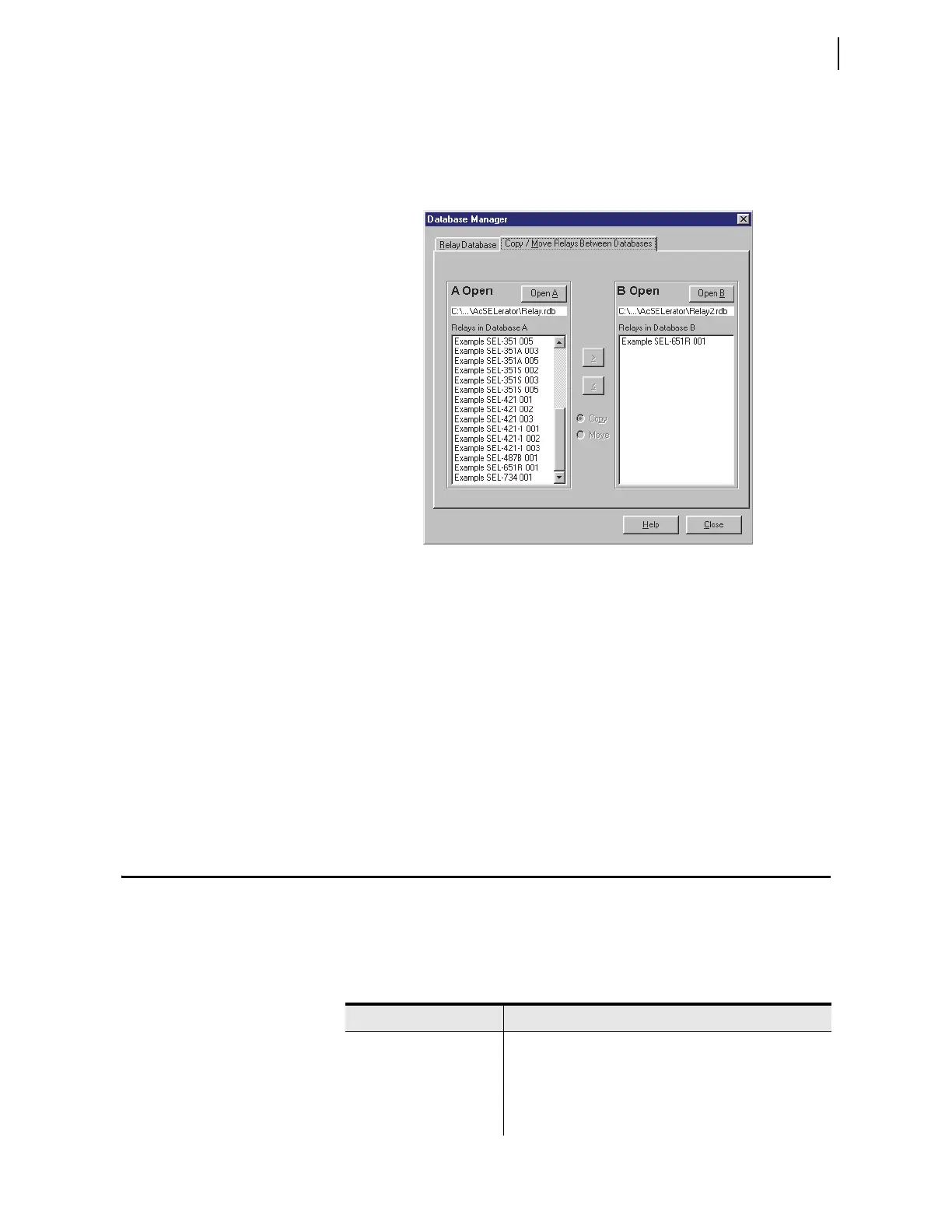

Figure 6.22 Database Manager Copy/Move
Create a New Database
To create and copy an existing database of relays to a new database, click
File > Database Manager and select the Copy / Move Relays Between
Databases tab on the Database Manager dialog box.
ACSELERATOR
QuickSet opens the last active database and assigns it as Database A (as
shown in Figure 6.22).
Click the Open B button;
ACSELERATOR QuickSet prompts you for a file
location. Type a new database name, click the Open button, and answer Yes ;
the program creates a new empty database. Load relay settings into the new
database as in Copy /Move Relays Between Databases.
ACSELERATOR QuickSet Help
Various forms of ACSELERATOR QuickSet help are available as shown in
Table 6.5. Press <F1> to open a context-sensitive help file with the
appropriate topic as the default. Other ways to access help are shown in
Table 6.5.
Ta b l e 6 . 5 H el p (Sheet 1 of 2)
Help Description
General ACSELERATOR
QuickSet
Select Help > Contents from the main menu bar.
HMI Application Select Help > HMI Help from the main menu bar.
Relay Settings Select Help > Settings Help from the from the main menu
bar.
To Next Page
