ACSELERATOR QuickSet Settings Database Management
ACSELERATOR QuickSet Settings Database
Management
ACSELERATOR QuickSet uses a database to save device settings.
ACSELERATOR QuickSet contains sets of all settings files for each device
specified in the Database Manager. Choose appropriate storage backup
methods and a secure location for storing database files.
Active Database
Change the active database to the one that needs to be modified by selecting
File > Active Database on the main menu bar.
Database Manager
Select File > Database Manager on the main menu bar to create new
databases and manage records within existing databases.
Relay Database
Open the Database Manager to access the database by clicking File >
Database Manager. A dialog box similar to Figure 6.21 appears.
The default database file already configured in
ACSELERATOR QuickSet is
Relay.rdb. Enter descriptions for the database and for each relay in the
database in the Database Description and Relay Description dialog boxes.

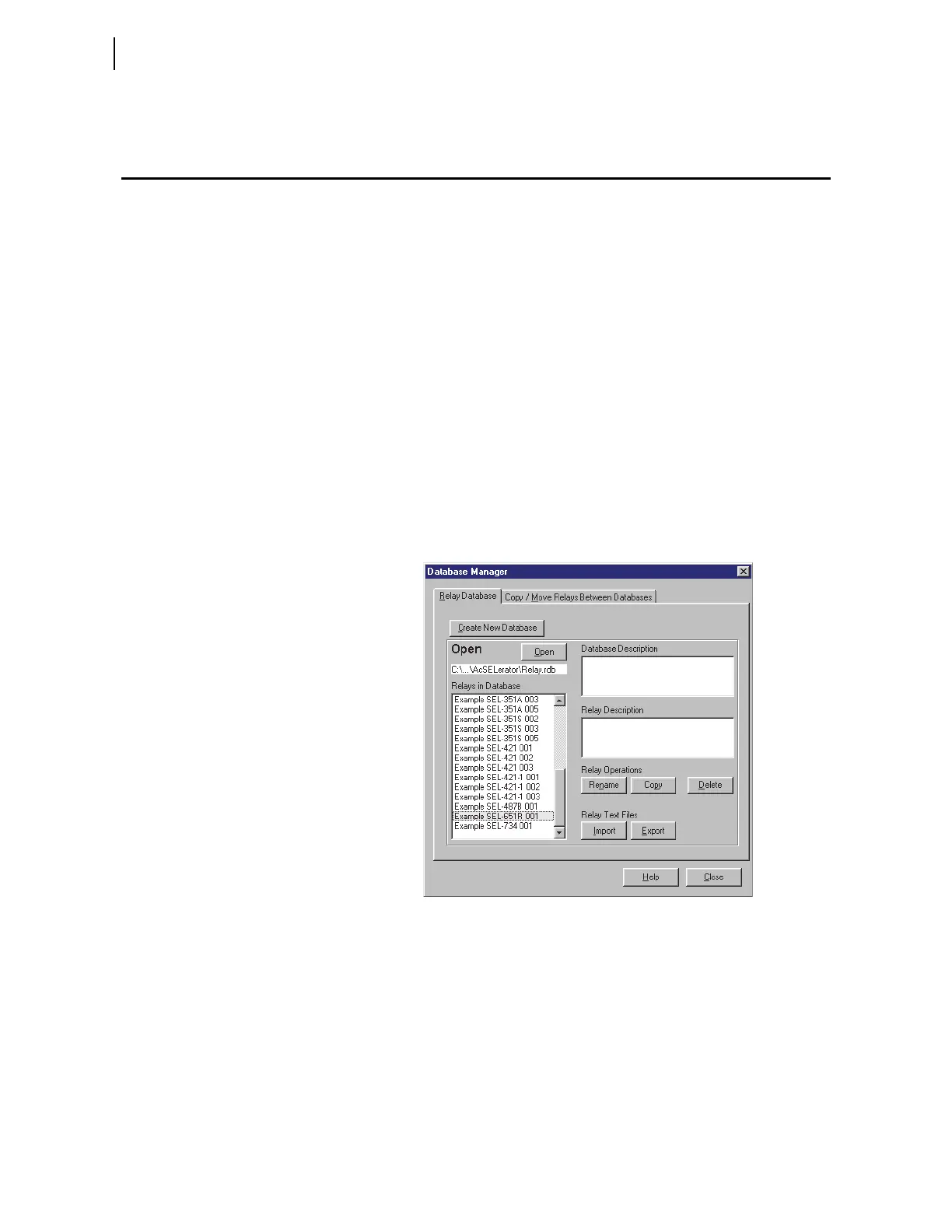

Figure 6.21 Database Manager
Highlight one of the devices listed in Relays in Database and select the Copy
button to create a new collection of settings.
ACSELERATOR QuickSet prompts
for a new name. Be sure to enter a new description in Relay Description.
Copy/Move Relays Between Databases
Select the Copy/Move Relays Between Databases tab to create multiple
databases with the Database Manager; these databases are useful for
grouping similar protection schemes or geographic areas. An example dialog box is
shown in Figure 6.22. Click the Open B option button to open a database. Type a
filename and click Open; for example, Relay2.rdb is the B relay in Figure 6.22.
