Front-Panel Operations
Front-Panel Operator Control Pushbuttons
Front-Panel Operator Control Pushbuttons
The front panel features large operator control pushbuttons coupled with
amber annunciator LEDs for local control. Figure 7.46 shows this region of
the relay front panel with factory default configurable front-panel label text.

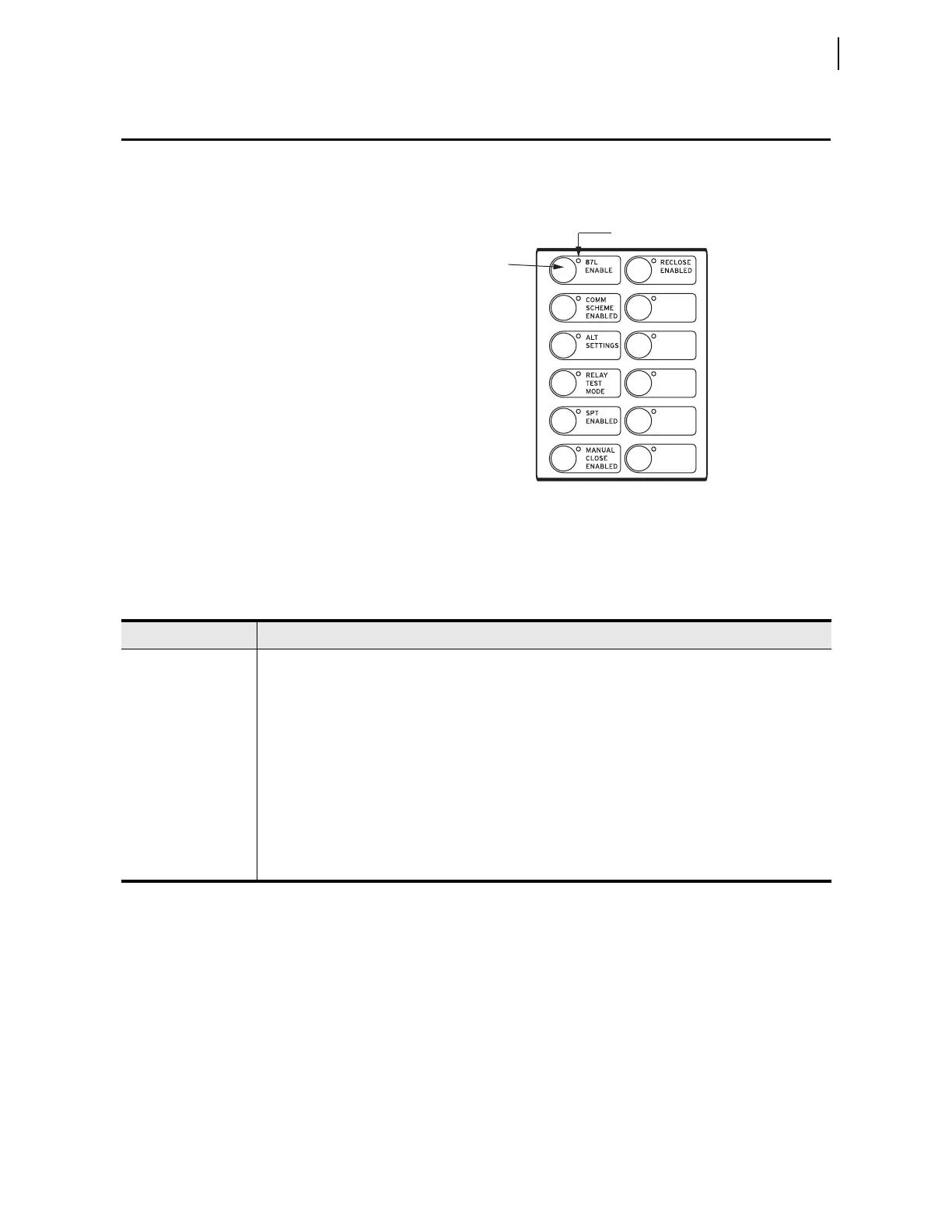

Figure 7.46 Operator Control Pushbuttons and LEDs
Factory default programming associates specific relay functions with the top
eight pushbuttons and LEDs, as listed in Table 7.13. For a concise listing of
the default programming for the front-panel pushbuttons and LEDs, see Front-
Panel Settings on page P.5.11.
Press the operator control pushbuttons momentarily to toggle on and off the
functions listed adjacent to each LED/pushbutton combination. The CLOSE and
TRIP pushbuttons momentarily assert the close and trip relay outputs after a
short delay.
The operator control pushbuttons and LEDs are programmable. Figure 7.47
describes the factory defaults for the operator controls.
There are two ways to program the operator control pushbuttons. The first is
through front-panel settings PBn_HMI. These settings allow any of the
operator control pushbuttons to be programmed to display a particular HMI
screen category. The HMI screen categories available are Alarm Points,
Display Points, and Event Summaries, and SER. Front-panel setting
NUM_ER allows the user to define the number of event summaries that are
Operator
Control
Pushbutton
Annunciator LED
BREAKER
CLOSED
BREAKER
OPEN
Table 7.13 Operator Control Pushbuttons and LEDs—Factory Defaults
Label Function
87L ENABLED Enable current differential protection
COMM SCHEME ENABLED Enable communications scheme
ALT SETTINGS Switch between setting Group 1 and setting Group 2. The LED is illuminated when Group 1 is not the
active setting group.
RELAY TEST MODE Enter test mode
SPT ENABLE Enable single-pole tripping
MANUAL CLOSE ENABLED Enable manual closing
RECLOSE ENABLED Enable automatic reclosing
BREAKER CLOSED Close Circuit Breaker 1
BREAKER OPEN Open Circuit Breaker 1
