Universal synchronous/asynchronous receiver transmitter (USART/UART) RM0367

770/1043 RM0367 Rev 7

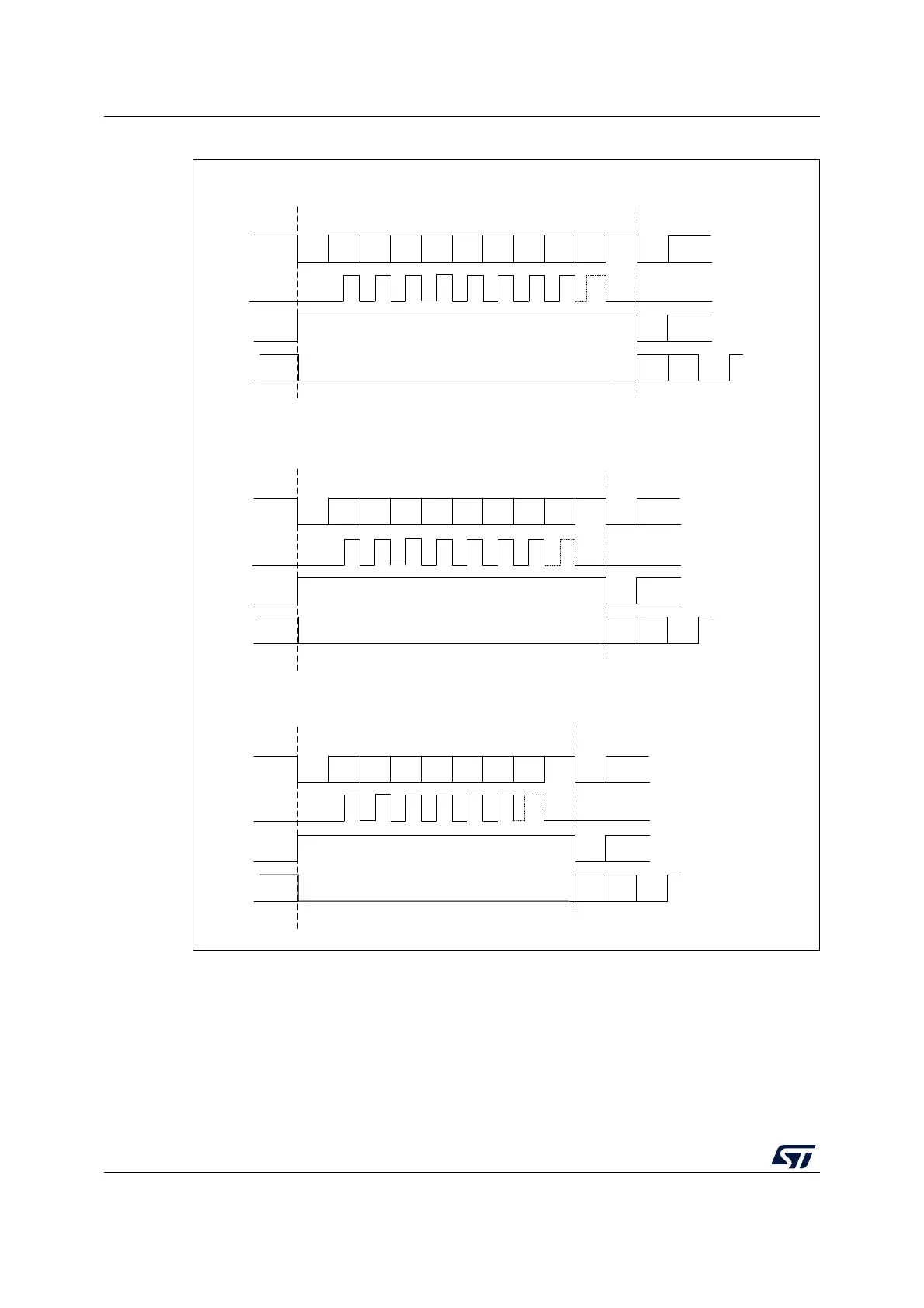

Figure 243. Word length programming

MS33194V2

Bit0 Bit1 Bit2 Bit3 Bit4 Bit5 Bit6 Bit7 Bit8

Start

bit

Stop

bit

Start

bit

Idle frame

9-bit word length (M = 01 ), 1 Stop bit

Possible

Parity

bit

Break frame

Data frame

Clock **

Start

bit

Stop

bit

Start

bit

Stop

bit

Bit0 Bit1 Bit2 Bit3 Bit4 Bit5 Bit6 Bit7

Start

bit

Stop

bit

Start

bit

Idle frame

8-bit word length (M = 00 ), 1 Stop bit

Possible

Parity

bit

Break frame

Data frame

Clock **

Start

bit

Stop

bit

Start

bit

Stop

bit

Bit0 Bit1 Bit2 Bit3 Bit4 Bit5 Bit6

Start

bit

Stop

bit

Start

bit

Idle frame

7-bit word length (M = 10 ), 1 Stop bit

Possible

Parity

bit

Break frame

Data frame

Clock

** LBCL bit controls last data clock pulse

Start

bit

Stop

bit

Start

bit

Stop

bit
