RM0367 Rev 7 777/1043
RM0367 Universal synchronous/asynchronous receiver transmitter (USART/UART)
872
Programming the ONEBIT bit in the USART_CR3 register selects the method used to
evaluate the logic level. There are two options:
• The majority vote of the three samples in the center of the received bit. In this case,
when the 3 samples used for the majority vote are not equal, the NF bit is set
• A single sample in the center of the received bit
Depending on the application:
– select the three samples’ majority vote method (ONEBIT=0) when operating in a
noisy environment and reject the data when a noise is detected (refer to
Figure 140) because this indicates that a glitch occurred during the sampling.
– select the single sample method (ONEBIT=1) when the line is noise-free to
increase the receiver’s tolerance to clock deviations (see Section 29.5.5:
Tolerance of the USART receiver to clock deviation on page 781). In this case the
NF bit will never be set.
When noise is detected in a frame:
• The NF bit is set at the rising edge of the RXNE bit.
• The invalid data is transferred from the Shift register to the USART_RDR register.
• No interrupt is generated in case of single byte communication. However this bit rises
at the same time as the RXNE bit which itself generates an interrupt. In case of
multibuffer communication an interrupt will be issued if the EIE bit is set in the
USART_CR3 register.
The NF bit is reset by setting NFCF bit in ICR register.
Note: Oversampling by 8 is not available in LIN, Smartcard and IrDA modes. In those modes, the
OVER8 bit is forced to ‘0’ by hardware.

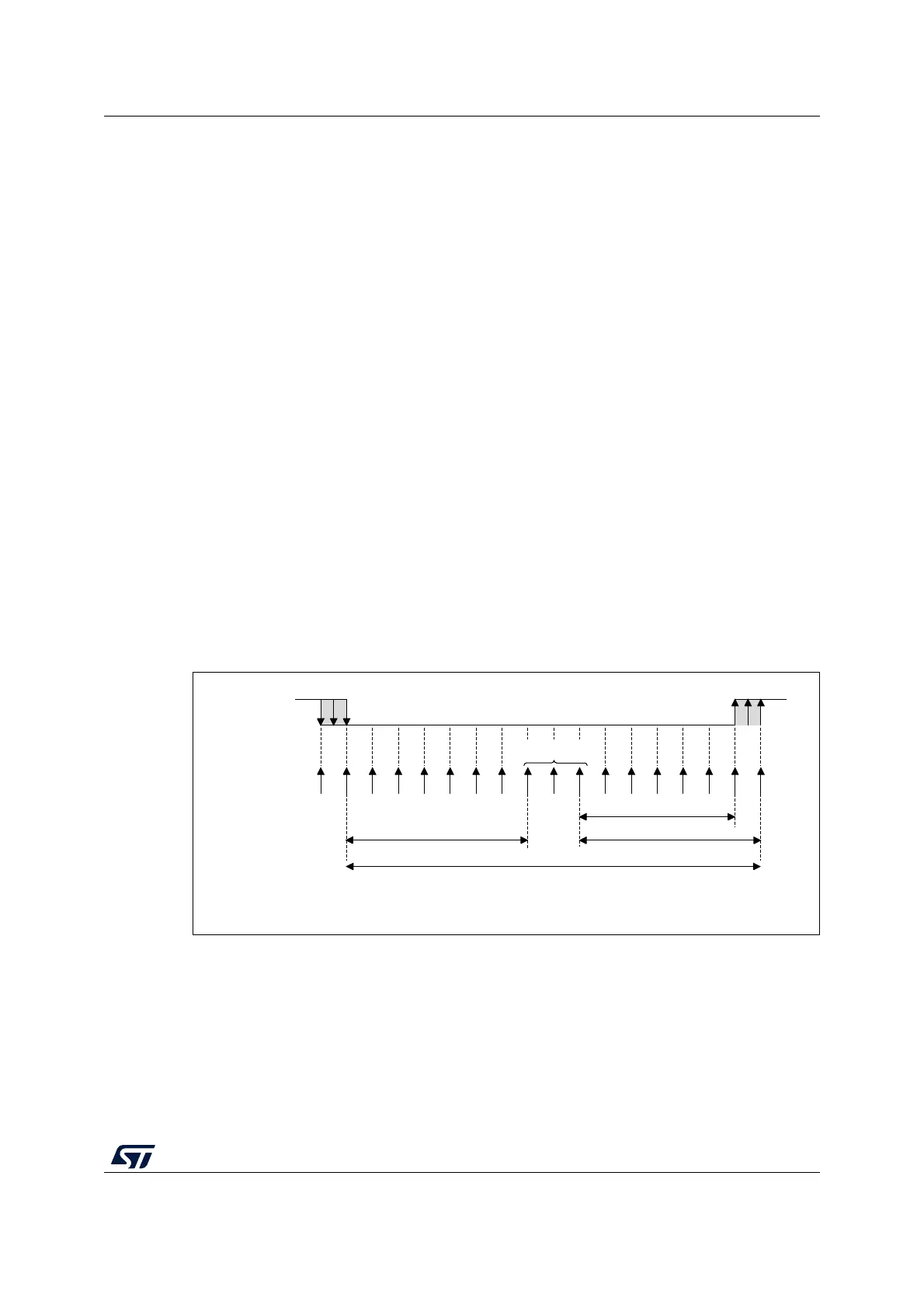

Figure 247. Data sampling when oversampling by 16
MSv31152V1
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
sampled values
6/16
7/167/16
One bit time
Sample clock
RX line
