Universal synchronous/asynchronous receiver transmitter (USART/UART) RM0367
778/1043 RM0367 Rev 7

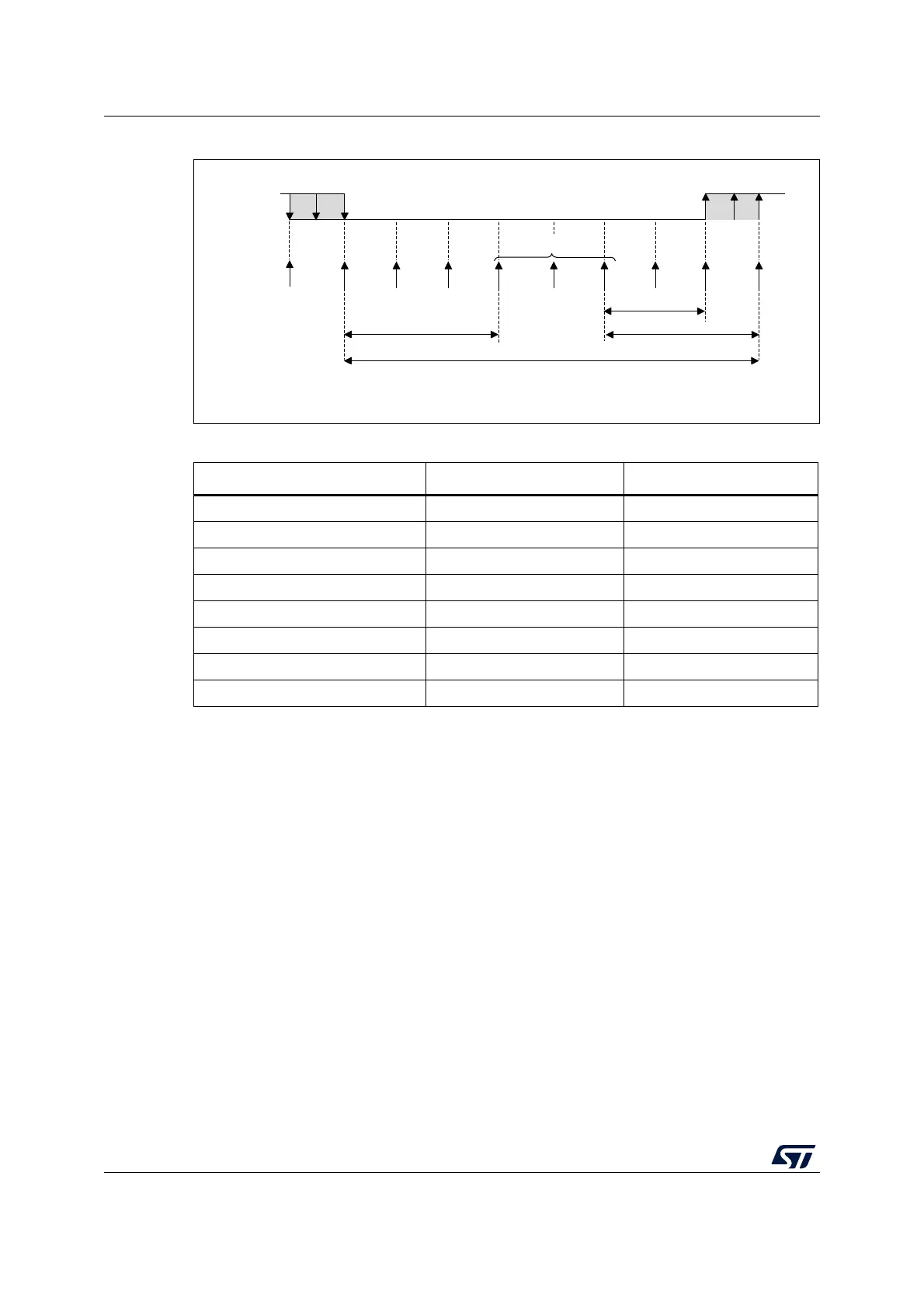

Figure 248. Data sampling when oversampling by 8
Framing error
A framing error is detected when the stop bit is not recognized on reception at the expected
time, following either a de-synchronization or excessive noise.
When the framing error is detected:
• The FE bit is set by hardware
• The invalid data is transferred from the Shift register to the USART_RDR register.
• No interrupt is generated in case of single byte communication. However this bit rises
at the same time as the RXNE bit which itself generates an interrupt. In case of
multibuffer communication an interrupt will be issued if the EIE bit is set in the
USART_CR3 register.
The FE bit is reset by writing 1 to the FECF in the USART_ICR register.
Table 140. Noise detection from sampled data
Sampled value NE status Received bit value
000 0 0
001 1 0
010 1 0
011 1 1
100 1 0
101 1 1
110 1 1
111 0 1
MSv31153V1
1 2 3 4 5 6 7
sampled values
2/8
3/8
3/8
One bit time
Sample
clock (x8)
RX line
8
