Inter-integrated circuit (I2C) interface RM0367

736/1043 RM0367 Rev 7

that case the total number of TXIS interrupts is NBYTES-1 and the content of the

I2C_PECR register is automatically transmitted if the master requests an extra byte after the

NBYTES-1 data transfer.

Caution: The PECBYTE bit has no effect when the RELOAD bit is set.

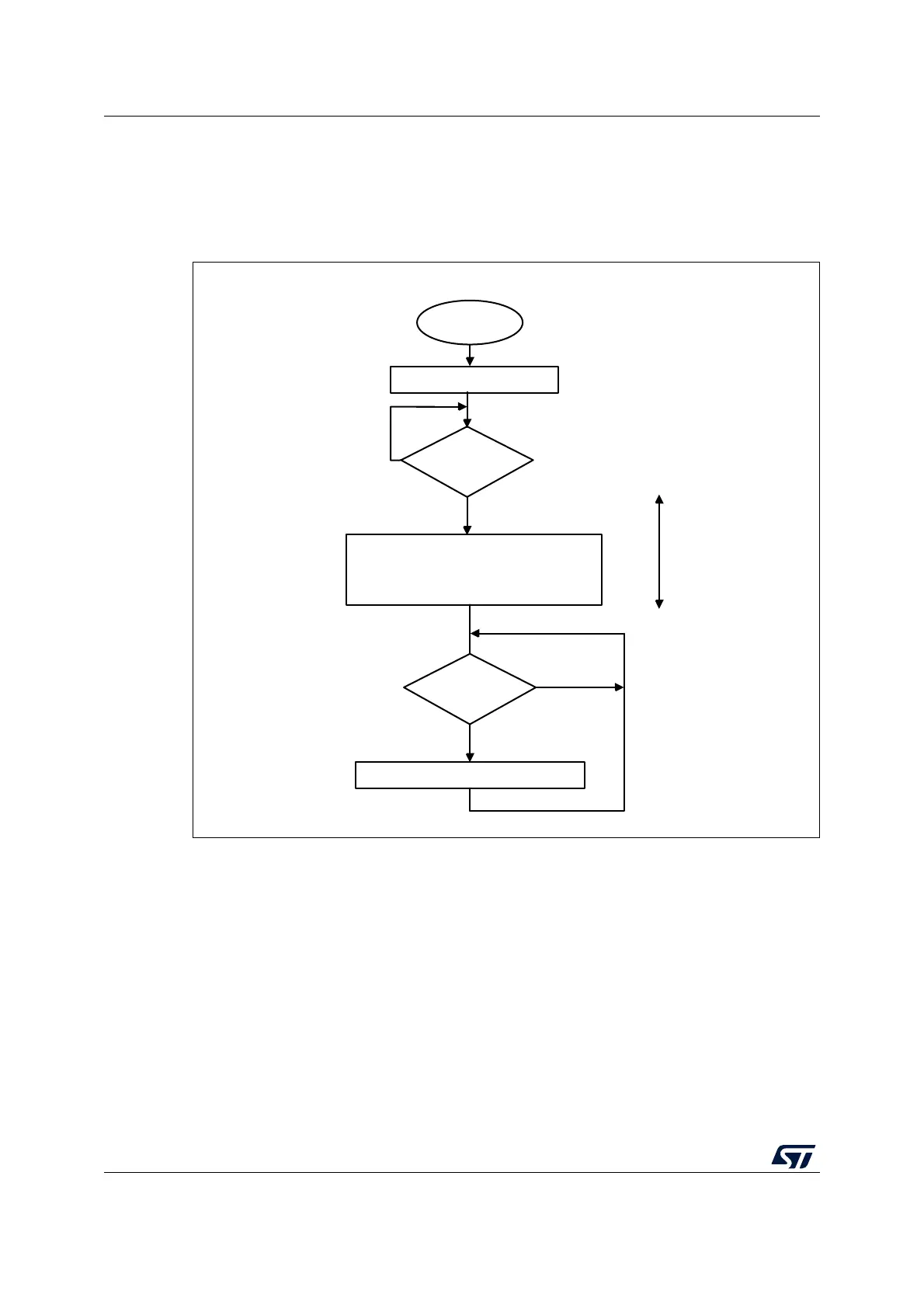

Figure 236. Transfer sequence flowchart for SMBus slave transmitter N bytes + PEC

MS19867V2

Slave initialization

SMBus slave

transmission

Write I2C_TXDR.TXDATA

I2C_ISR.TXIS

=1?

Yes

I2C_ISR.ADDR =

Yes

Read ADDCODE and DIR in I2C_ISR

I2C_CR2.NBYTES = N + 1

PECBYTE=1

Set I2C_ICR.ADDRCF

SCL

stretched
