RM0367 Rev 7 319/1043

RM0367 Analog-to-digital converter (ADC)

352

14.4.5 Example timing diagrams (single/continuous modes

hardware/software triggers)

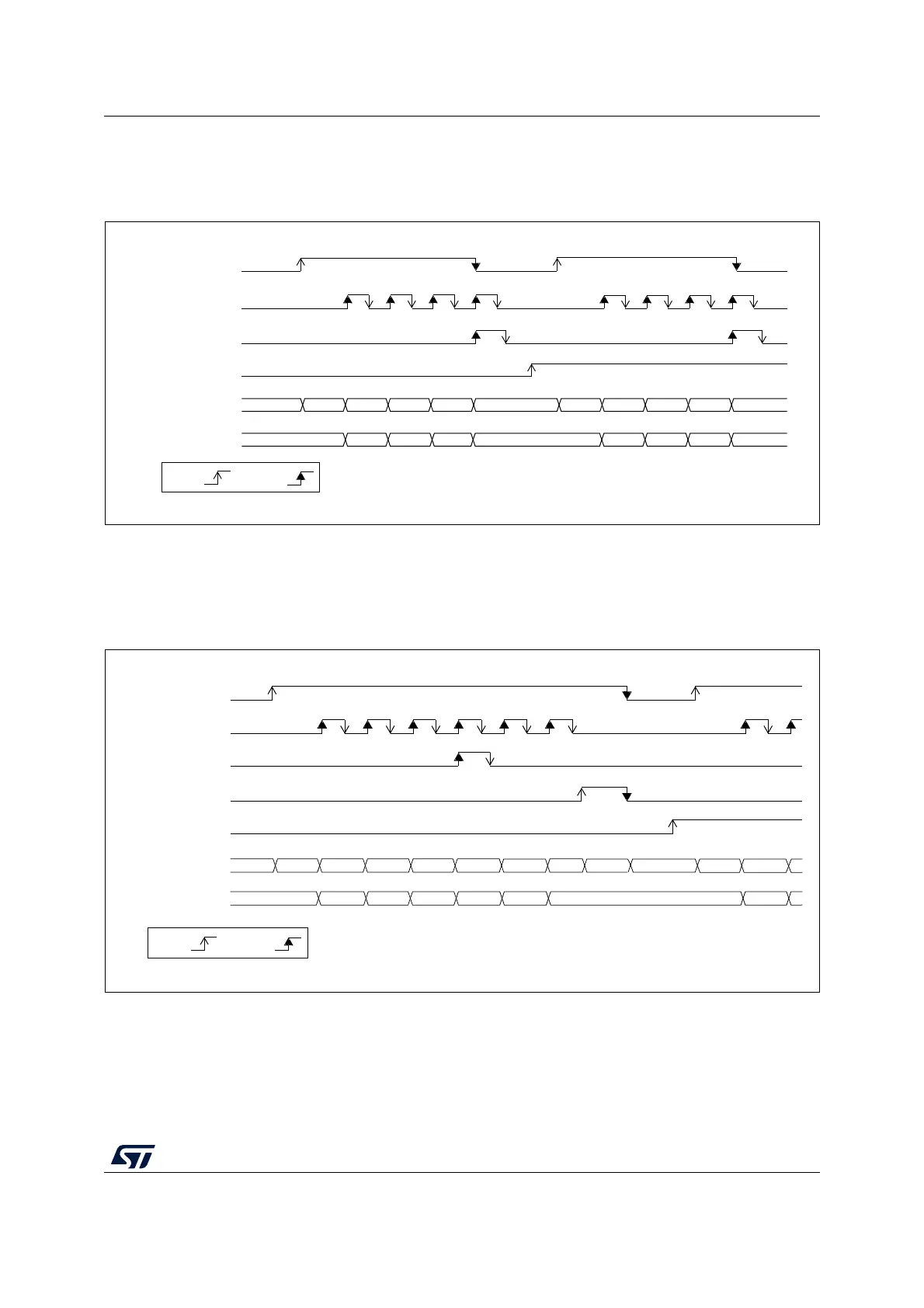

Figure 40. Single conversions of a sequence, software trigger

1. EXTEN = 00, CONT = 0

2. CHSEL = 0x20601, WAIT = 0, AUTOFF = 0

For code example, refer to A.8.5: Single conversion sequence code example - Software

trigger.

Figure 41. Continuous conversion of a sequence, software trigger

1. EXTEN = 00, CONT = 1,

2. CHSEL = 0x20601, WAIT = 0, AUTOFF = 0

For code example, refer to A.8.6: Continuous conversion sequence code example -

Software trigger.

MSv30338V3

RDY

EOC

SCANDIR

CH9 CH17 CH9

ADC_DR

D0 D10 D17 D10 D9 D0

ADC state

(2)

ADSTART

(1)

EOS

D17

RDYCH0

CH10

RDY

CH17

CH10CH0

by S/W by H/W

MSv30339V2

ADSTP

CH9 CH17 STP

D0 D10

CH9

D0 D9

CH10

D17

EOC

SCANDIR

ADC_DR

ADC state

(2)

ADSTART

(1)

EOS

RDY CH17CH10CH0

by S/W by H/W

RDY CH0 CH10

D9 D17
