ST STM32L0x3 - Figure 305. Operations Required to Transmit 0 X3478 Ae; Figure 306. Operations Required to Receive 0 X3478 Ae; Figure 307. LSB Justified 16-Bit Extended to 32-Bit Packet Frame with CPOL = 0

RM0367 Rev 7 903/1043
RM0367 Serial peripheral interface/ inter-IC sound (SPI/I2S)
922
• In transmission mode:
If data 0x3478AE have to be transmitted, two write operations to the SPIx_DR register
are required by software or by DMA. The operations are shown below.

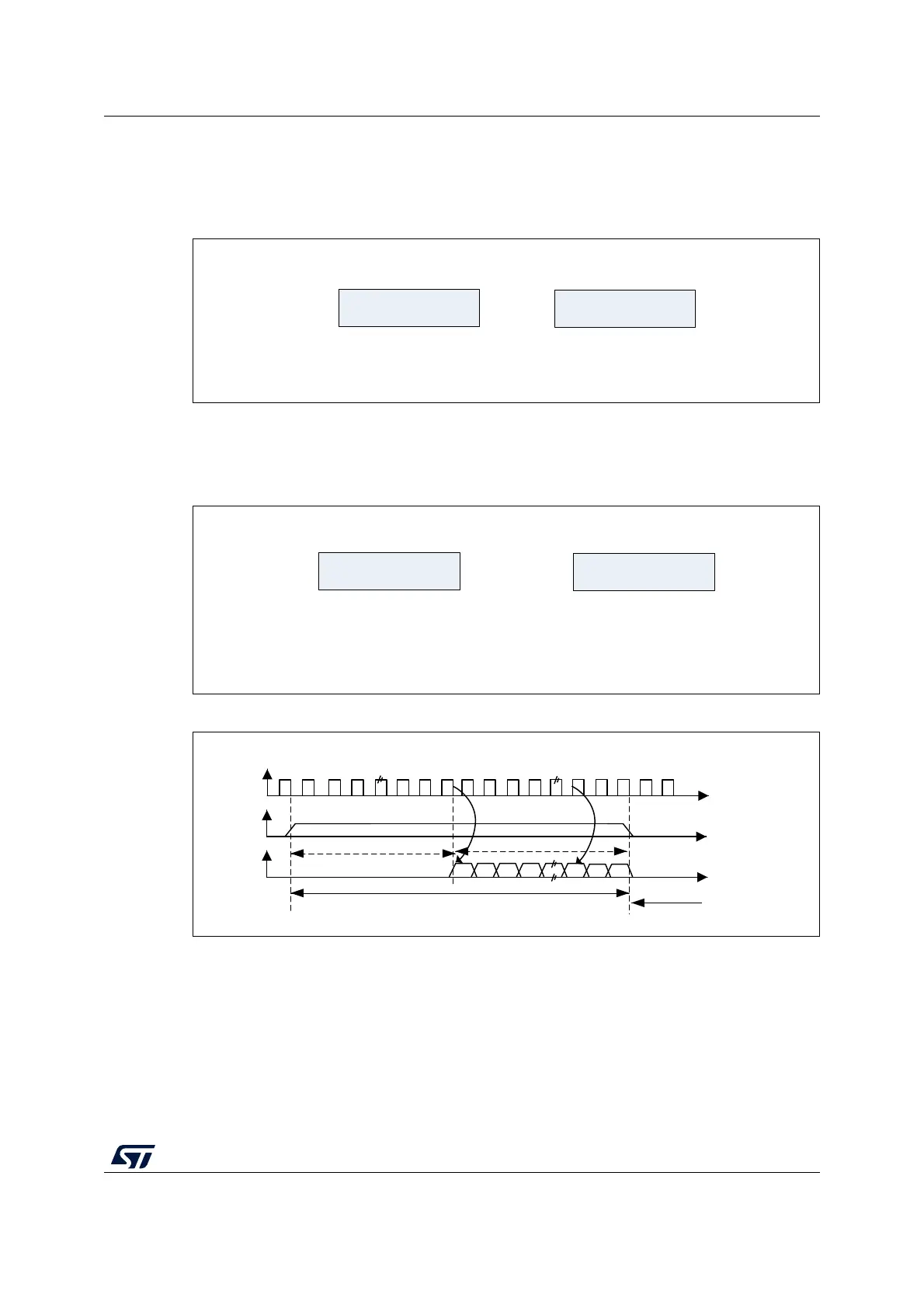

Figure 305. Operations required to transmit 0x3478AE
• In reception mode:
If data 0x3478AE are received, two successive read operations from the SPIx_DR
register are required on each RXNE event.
Figure 306. Operations required to receive 0x3478AE
Figure 307. LSB justified 16-bit extended to 32-bit packet frame with CPOL = 0
When 16-bit data frame extended to 32-bit channel frame is selected during the I
2
S
configuration phase, Only one access to the SPIx_DR register is required. The 16 remaining
bits are forced by hardware to 0x0000 to extend the data to 32-bit format. In this case it
corresponds to the half-word MSB.
If the data to transmit or the received data are 0x76A3 (0x0000 76A3 extended to 32-bit),
the operation shown in Figure 308 is required.
0xXX34
0x78AE
First write to Data register
conditioned by TXE=1
Second write to Data register
conditioned by TXE=1
Only the 8 LSB of the
half-word are significant.
A field of 0x00 is forced
instead of the 8 MSBs.
MS19596V1
0xXX34
0x78AE
First read from Data register
conditioned by RXNE=1
Second read from Data register
conditioned by RXNE=1
Only the 8 LSB of the
half-word are significant.
A field of 0x00 is forced
instead of the 8 MSBs.
MS19597V1
MS30105V1
CK
WS
SD
Transmission
Reception
16-bit data
0 forced
MSB
LSB
Channel left 32-bit
Channel right
16-bit remaining
