RM0367 Serial peripheral interface/ inter-IC sound (SPI/I2S)

922

– NSS output enable (SSM=0,SSOE = 1): this configuration is only used when the

MCU is set as master. The NSS pin is managed by the hardware. The NSS signal

is driven low as soon as the SPI is enabled in master mode (SPE=1), and is kept

low until the SPI is disabled (SPE =0).

– NSS output disable (SSM=0, SSOE = 0): if the microcontroller is acting as the

master on the bus, this configuration allows multimaster capability. If the NSS pin

is pulled low in this mode, the SPI enters master mode fault state and the device is

automatically reconfigured in slave mode. In slave mode, the NSS pin works as a

standard “chip select” input and the slave is selected while NSS line is at low level.

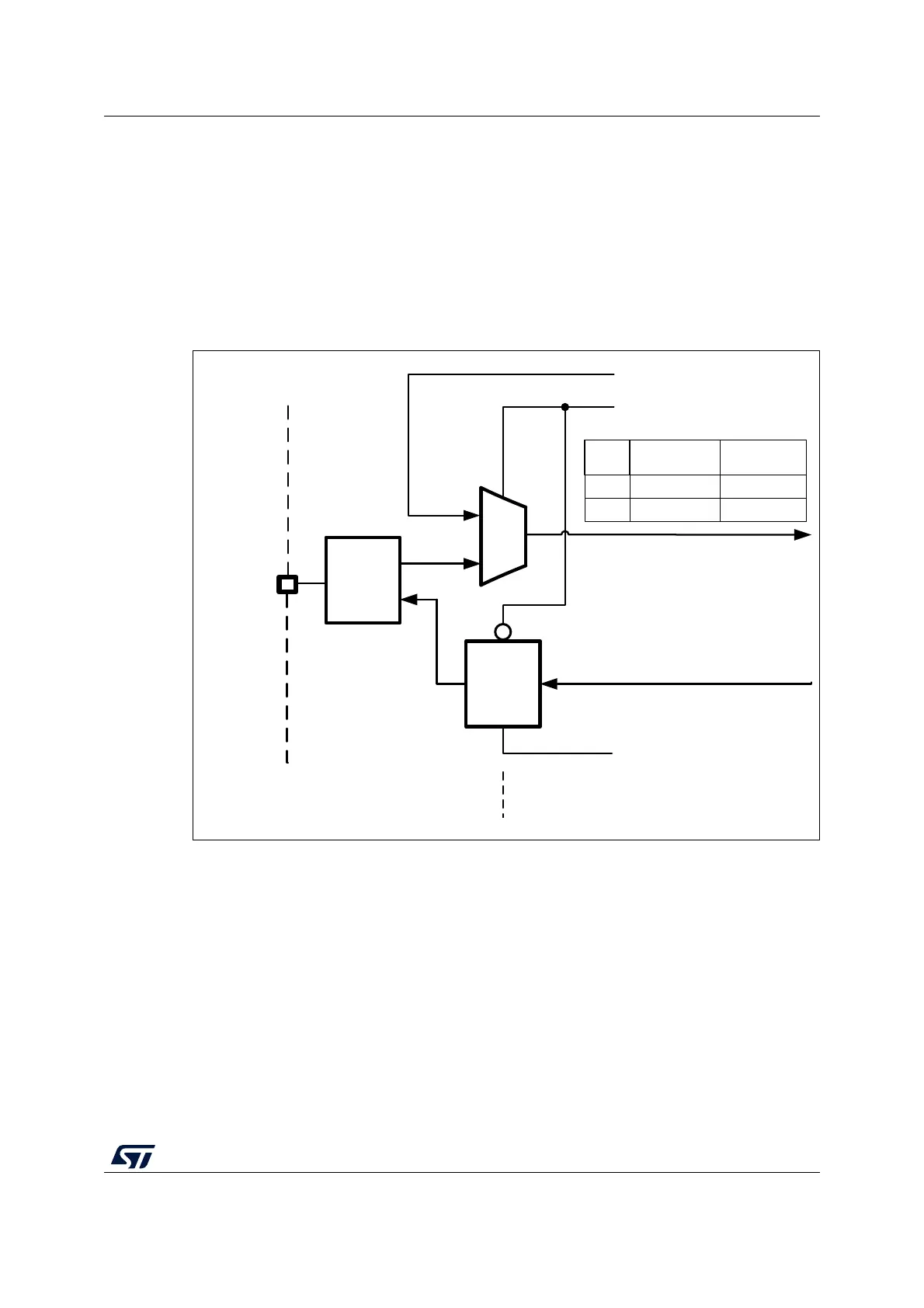

Figure 285. Hardware/software slave select management

NSS Input

SSM control bit

SSI control bit

SSOE control bit

NSS Output

NSS

(used in Master mode & NSS

HW management only)

NSS

Output

Control

Master

mode

Slave mode

Non activeOKVdd

NSS

Inp.

ActiveConflictVss

NSS external logic

NSS internal logic

GPIO

logic

aiv14746e
