31.3.3 Standard multi-slave communication
In a configuration with two or more independent slaves, the master uses GPIO pins to
manage the chip select lines for each slave (see Figure 283.). The master must select one
of the slaves individually by pulling low the GPIO connected to the slave NSS input. When
this is done, a standard master and dedicated slave communication is established.

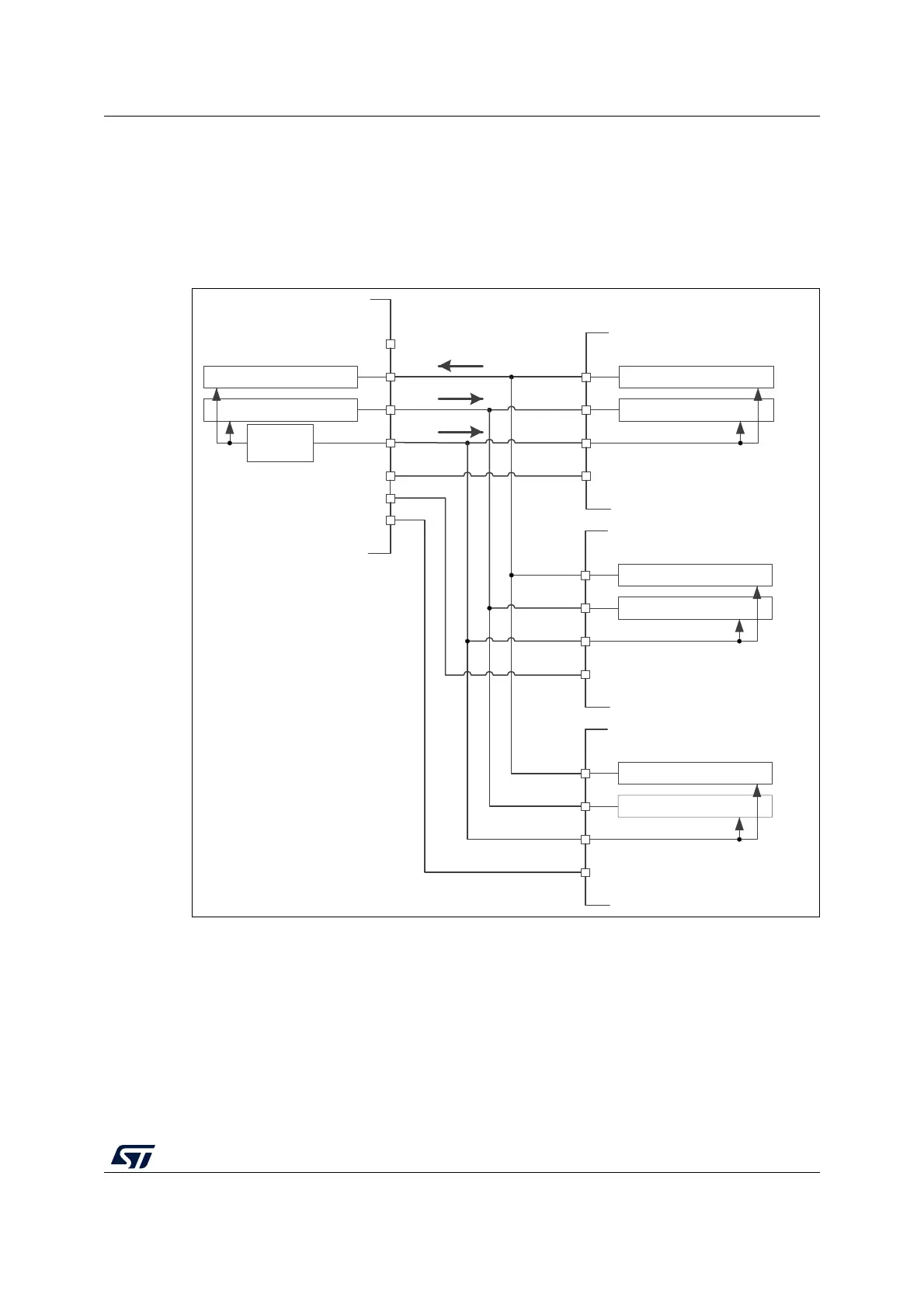

Figure 283. Master and three independent slaves
1. NSS pin is not used on master side at this configuration. It has to be managed internally (SSM=1, SSI=1) to
prevent any MODF error.
2. As MISO pins of the slaves are connected together, all slaves must have the GPIO configuration of their
MISO pin set as alternate function open-drain (see Section 9.3.7: I/O alternate function input/output on
page 242).
Rx shift register
Tx shift register Rx shift register
Tx shift register
SPI clock
generator
Master
Slave 1
MISO
MOSI
SCK
NSS
MISO
MOSI
SCK
NSS
(1)
Rx shift register
Tx shift register
Slave 2
Rx shift register
Tx shift register
Slave 3
IO1
IO2
IO3
MISO
MOSI
SCK
NSS
MISO
MOSI
SCK
NSS
MSv39626V1
