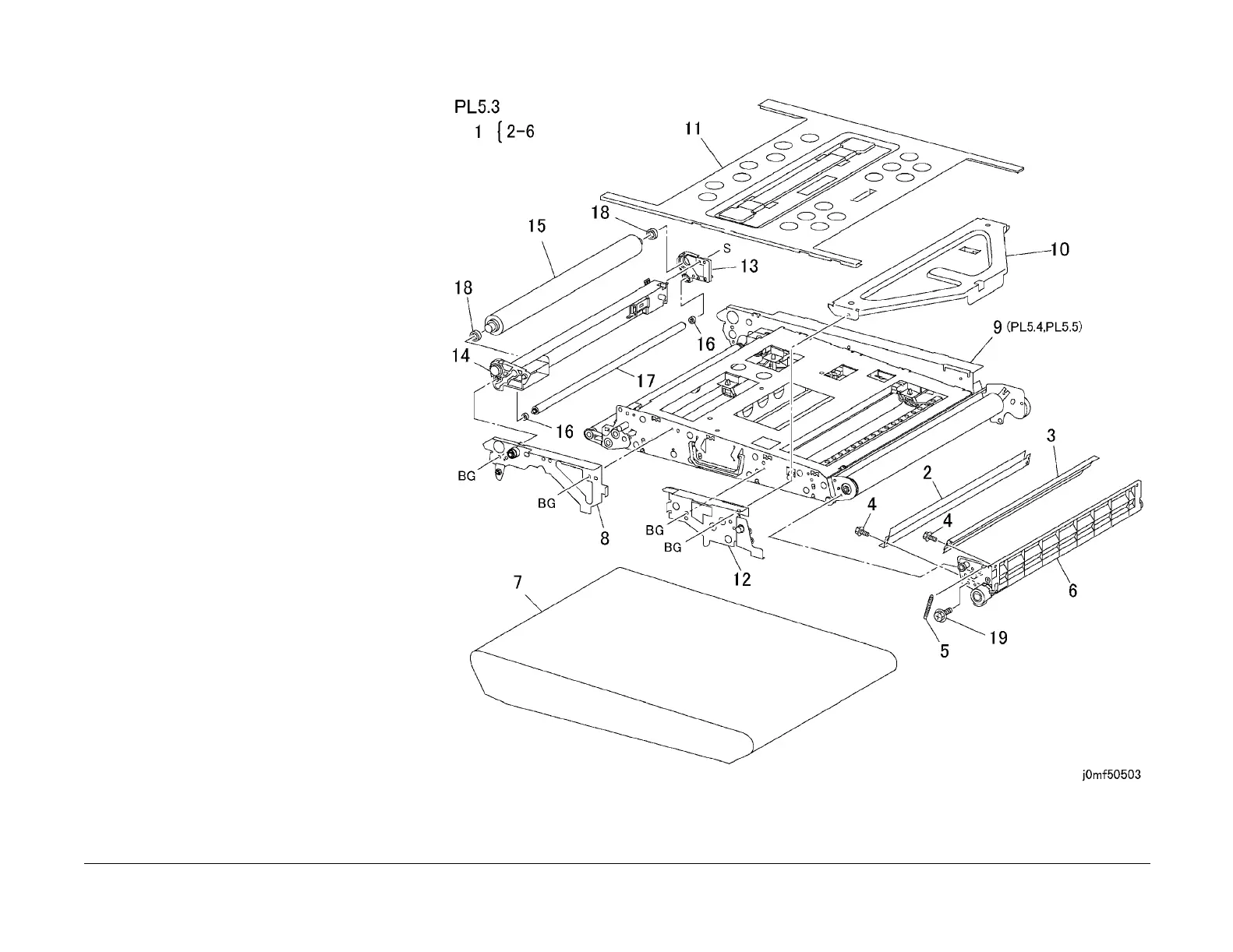

PL 5.3 IBT Belt Assembly
Item Part Description
1 – IBT Belt Cleaner Assembly (P/O PL
5.2 Item 1) (REP 9.16)
2 – Blade (P/O PL 5.3 Item 1)
3 – Seal (P/O PL 5.3 Item 1)
4 – Screw (P/O PL 5.3 Item 1)
5 – Spring (P/O PL 5.3 Item 1)
6 – Housing (P/O PL 5.3 Item 1)
7 064K91451 Transfer Belt (REP 9.22,ADJ 9.6)
8 – Support (P/O PL 5.2 Item 9)
9 – IBT Frame (P/O PL 5.2 Item 9)
10 – Right Handle (P/O PL 5.2 Item 9)
11 – Left Handle (P/O PL 5.2 Item 9)
12 – Bracket (P/O PL 5.2 Item 9)
13 – Housing (P/O PL 5.2 Item 9)
14 – Housing (P/O PL 5.2 Item 9)
15 059K23150 Backup Roll
16 – Bearing (P/O PL 5.2 Item 9)
17 – Pre Roll (P/O PL 5.2 Item 9)
18 013E18980 Bearing
19 – Screw (P/O PL 5.2 Item 1)
To Next Page
