DC 3535/2240/1632, WC M24
PL 2.15
Parts List
Initial issue

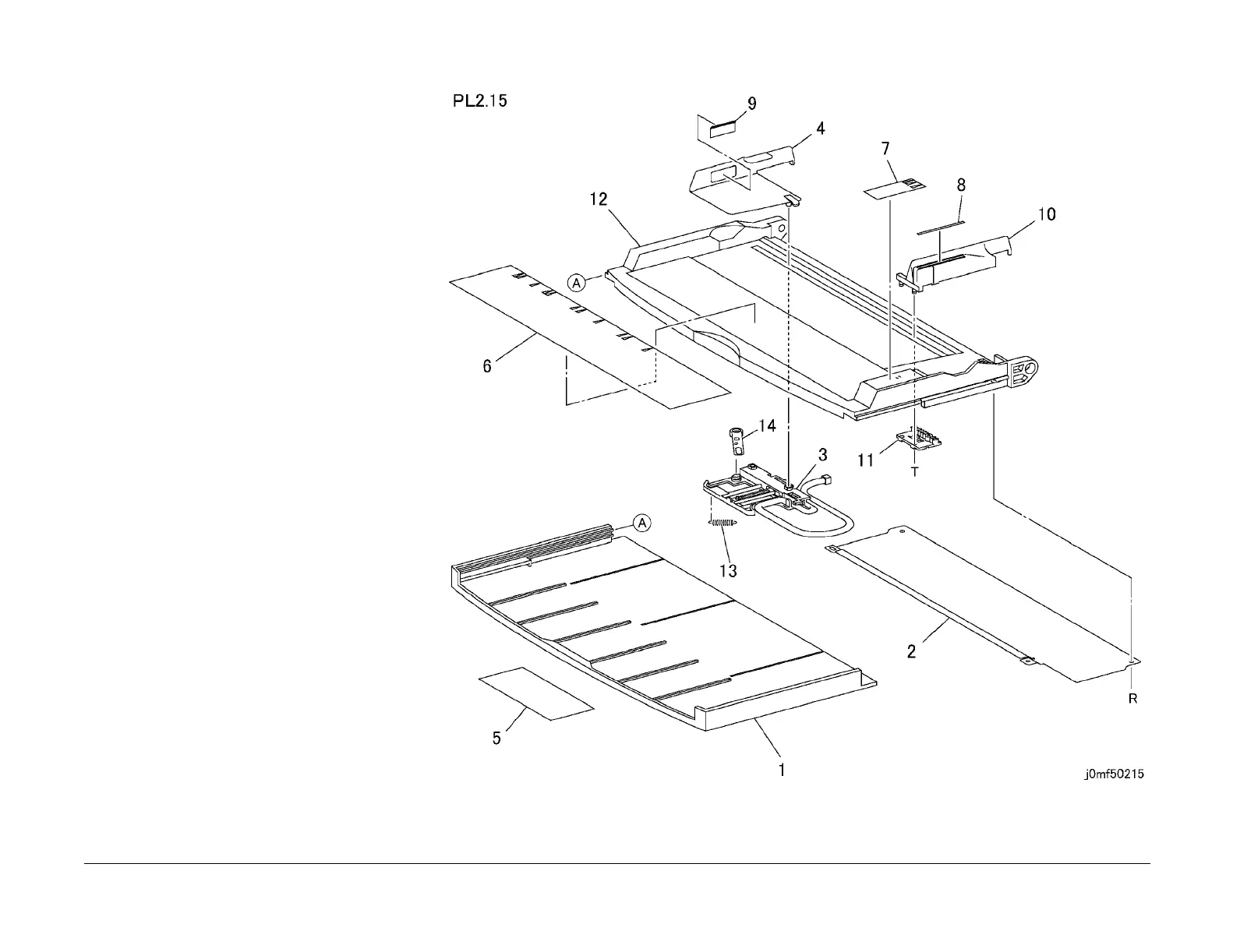

PL 2.15 Tray 5 Assembly
Item Part Description
1 – Lower Tray (Not Spared)
2 – Cover (Not Spared)
3 – Paper Size Sensor (Not Spared)
4 – Side Guide (Not Spared)
5 – Attention Label (Not Spared)
6 – Instruction Label (Not Spared)
7 – Label (Not Spared)
8 – Label (Not Spared)
9 – Max Label (Not Spared)
10 – Registration Guide (Not Spared)
11 – Holder (Not Spared)
12 – Tray (Not Spared)
13 – Spring (Not Spared)
14 – Link (Not Spared)
