09/03
5-22
DC 3535/2240/1632, WC M24
PL 2.14
Initial issue
Parts List

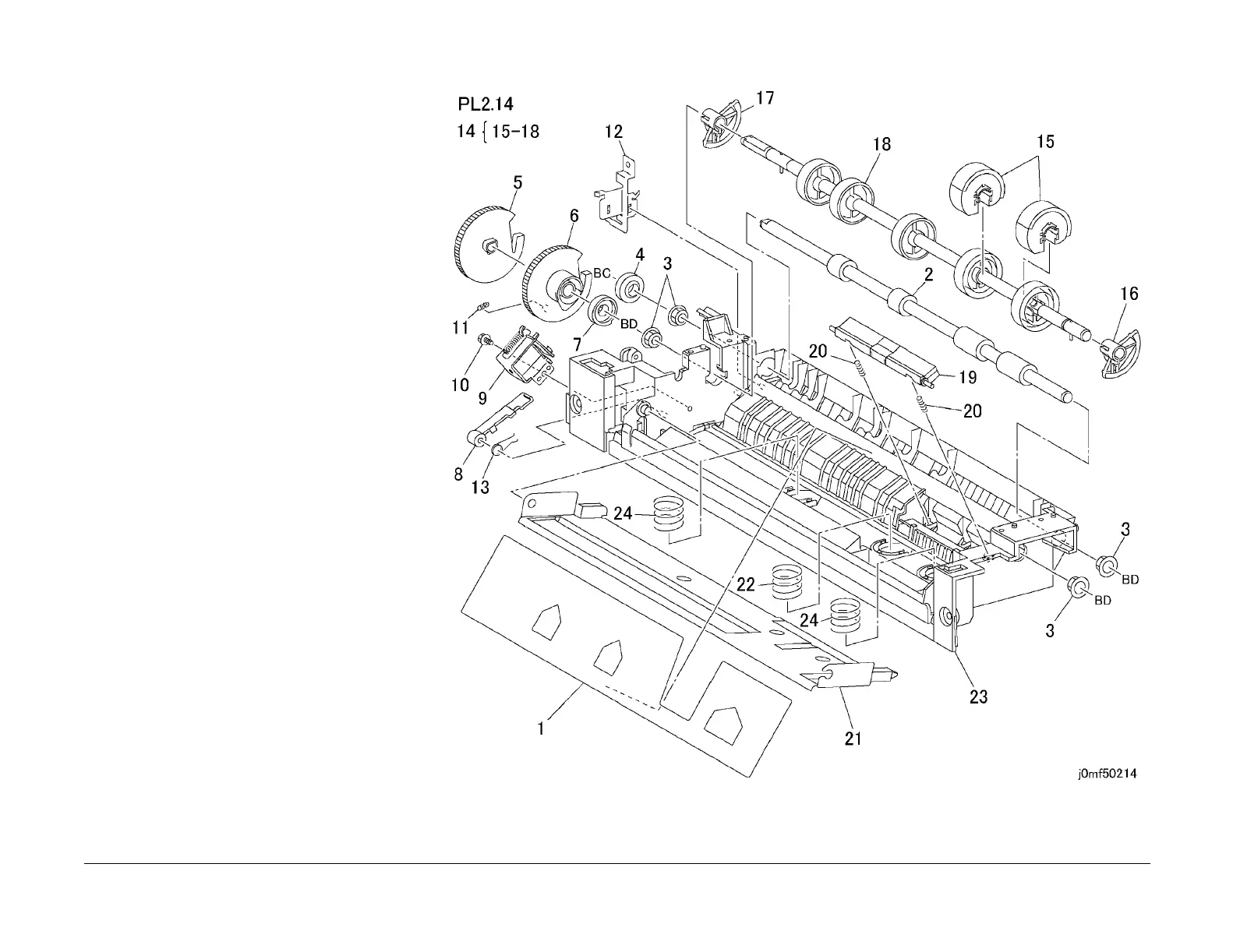

PL 2.14 Tray 5 Feed Assembly
Item Part Description
1 038E23560 Paper Guide
2 – Takeaway Roll (Not Spared)
3 – Bearing (Not Spared)
4 – Gear (Not Spared)
5 – Pick-up Gear (Not Spared)
6 – Cam Gear (Not Spared)
7 – Stop Lever (Not Spared)
8 – Gear Lever (Not Spared)
9 121E87830 Tray 5 Feed Solenoid
10 – Screw (Not Spared)
11 – Spring (Not Spared)
12 – Ground Plate (Not Spared)
13 – Spring (Not Spared)
14 059K24020 Feed Roll Assembly
15 059K24010 Feed Roll (REP 7.2)
16 – Cam (P/O PL 2.14 Item 14)
17 – Cam (P/O PL 2.14 Item 14)
18 – Shaft (P/O PL 2.14 Item 14)
19 019K97130 Retard Pad
20 – Spring (Not Spared)
21 – Bottom Plate (Not Spared)
22 – Spring (Not Spared)
23 – Lower Frame (Not Spared)
24 – Spring (Not Spared)
To Next Page
