Xerox DocuColor 2240 Service Manual

09/03
3-38
DC 3535/2240/1632, WC M24
Wrinkled Image, Cloud Defect
Initial issue
Image Quality
Wrinkled Image

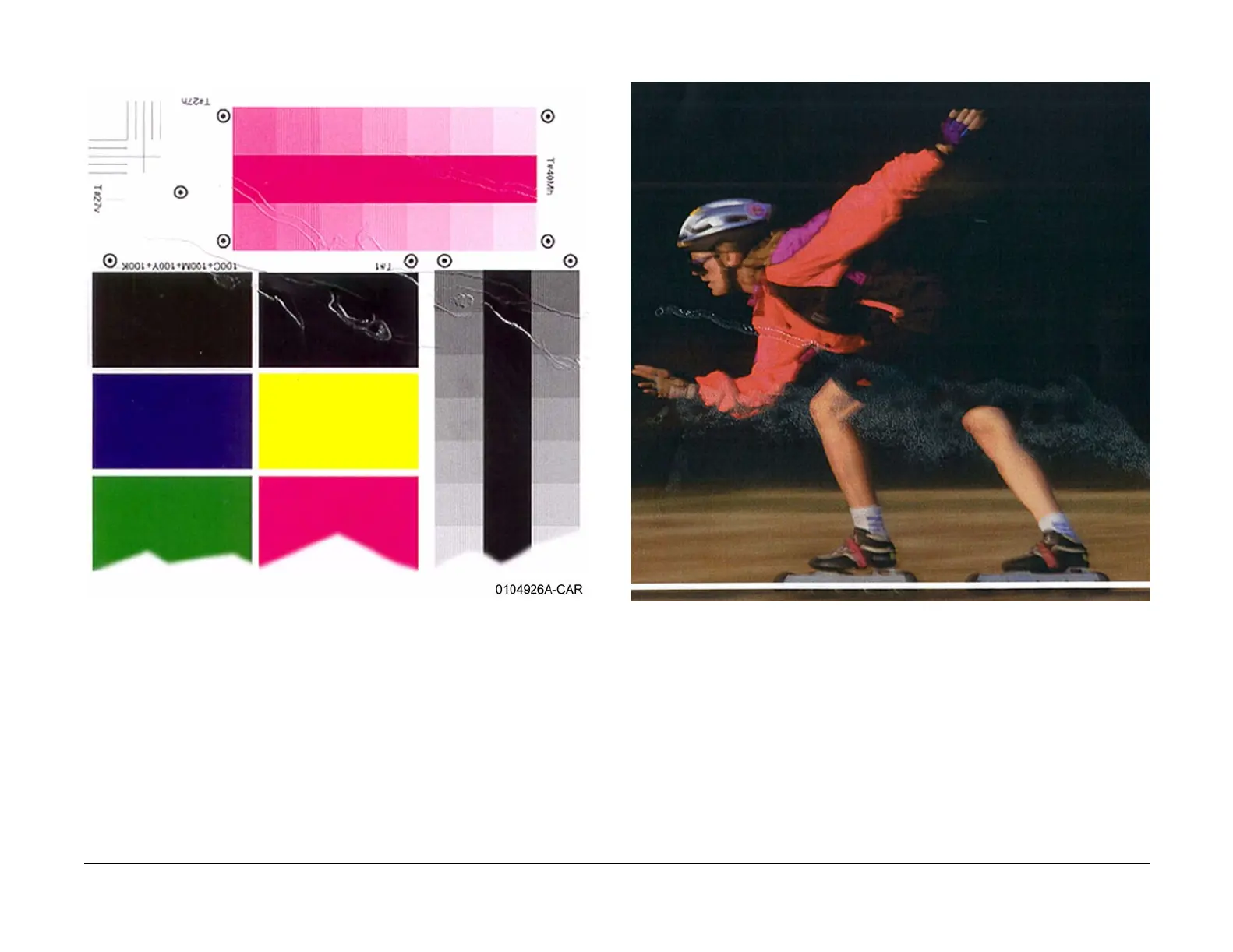

Figure 1 Wrinkled Image Defect Sample
Cause
Non-uniform paper buckle between IBT and Fuser; Fuser “tenting” of paper. Actual wrinkling of
the paper itself can also occur.
Corrective Action
Go to the IQ4 RAP.
Cloud Defect
Figure 1 Cloud Defect Sample
Cause
Non-uniform paper buckle between IBT and Fuser; Fuser “tenting” of paper
Corrective Action
Go to the IQ4 RAP.
