09/03
4-26
DC 3535/2240/1632, WC M24
REP 5.4, REP 5.5
Initial issue
Repairs and Adjustments
REP 5.4 DADF Control PWB
Parts List on PL PL 20.3
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment activities with
the power switch on or electrical power applied to the machine.
1. Remove Rear Cover (REP 5.18).
CAUTION
PWBs can be damaged by electrostatic discharge. Observe all ESD procedures.
2. Remove DADF Control PWB (Figure 1).

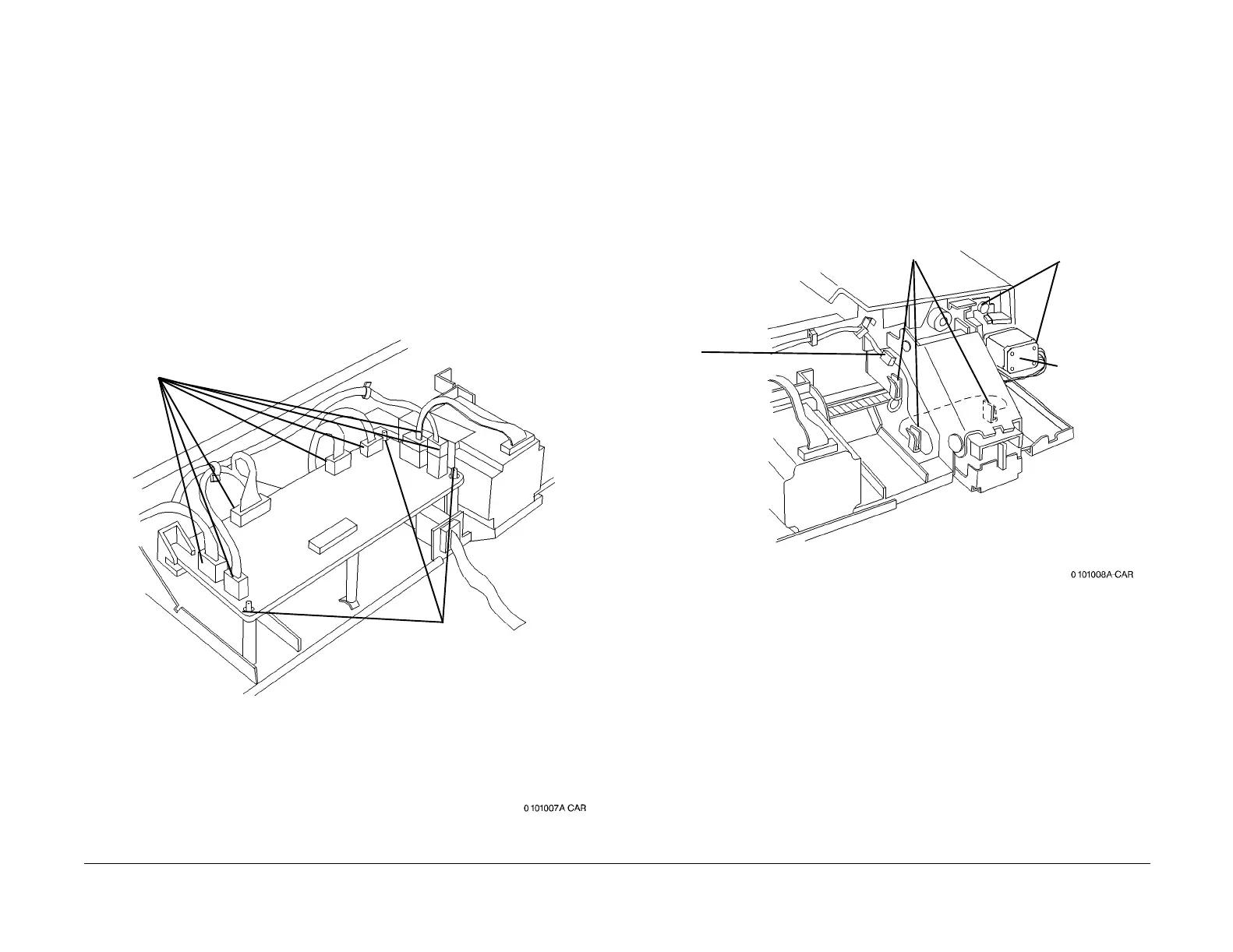

Figure 1 Removing DADF Control PWB
REP 5.5 Feed Motor Assembly
Parts List on PL 20.4
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment activities with
the power switch on or electrical power applied to the machine.
1. Remove Rear Cover (REP 5.18).
2. Remove Feed Motor Assembly (Figure 1).
Figure 1 Removing Feed Motor Assembly
1
Disconnect connectors (7)
2
Remove PWB from
PWB supports (3)
1
Disconnect
connector
2
Release clamps and
remove harness
3
Loosen
screws
4
Remove
Feed Motor
Assembly
