Repairs and Adjustments
REP 12.13 Stacker Motor Assembly
Parts List on PL 17.11
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment activities with
the power switch on or electrical power applied to the machine.
1. Remove the Rear Cover (PL 17.5).
2. Lower the Stack Tray (REP 12.20).
3. Remove the screws on PWB Chassis (Figure 1).

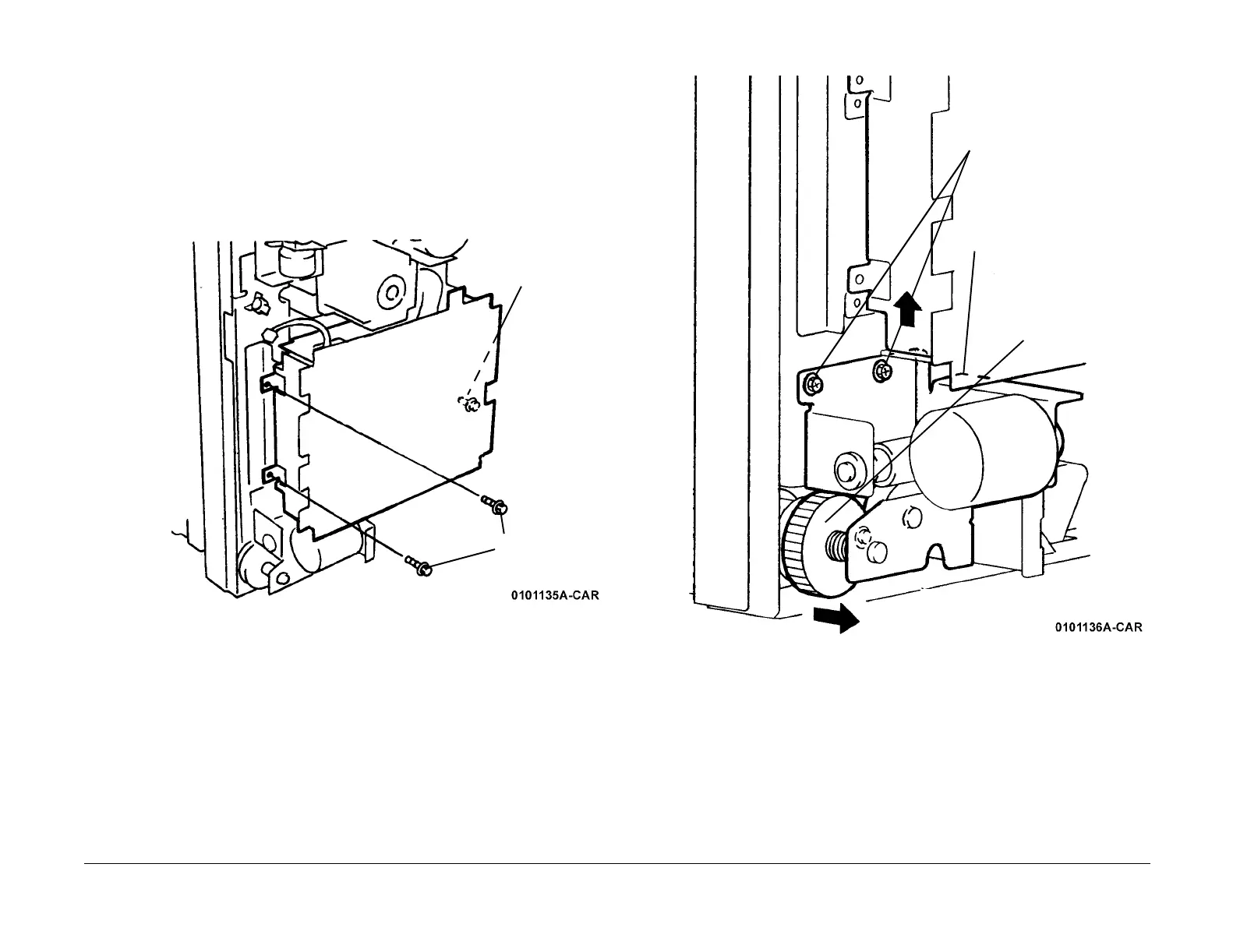

Figure 1 Removing Screws on PWB Chassis
4. Remove the Stacker Motor Assembly (Figure 2).
Figure 2 Removing Stacker Motor Assembly
1
Loosen
Screw
2
Remove
Screws (2)
1
Lift PWB Chassis
and Remove
Screws (2)
2
Remove Screw (1)
(Hidden)
3
Move Gear and
Remove Stacker
Motor. Disconnect
Connector
To Next Page
