Xerox DocuColor 2240 Service Manual

09/03
2-275
DC 3535/2240/1632, WC M24
12-281
Status Indicator RAPs
Initial issue
12-281 Set Clamp
The Set Clamp Home Sensor does not actuate after the Set Clamp started operation.
Procedure
Remove the Rear Cover (PL 17.5). Enter dC330 [012-211] and press Start. Actuate the Set
Clamp Home Sensor (PL 17.8) (Figure 1). The display changes.
YN
Press Stop. Check the circuit of the Set Clamp Home Sensor (Figure 2). Refer to the OF
99-2 RAP for troubleshooting procedure.
Press Stop. Enter dC330 [012-040] and press Start. The Set Clamp Solenoid (PL 17.8)
energized.
YN
Press Stop. Check the circuit of the Set Clamp Solenoid (Figure 3). Refer to the OF 99-4
RAP for troubleshooting procedure.
Press Stop. Enter dC330 [012-034] and press Start to energize Eject Clamp up and then [12-
032] and press Start to lower the Eject Clamp. Enter dC330 [012-041] and press Start. The
Set Clamp (PL 17.12) rotated.
YN
Enter dC330 [012-030] and press Start. The Eject Motor (PL 17.8) energized.
YN
Remove the Rear Cover (PL 17.5). +24 VDC is measured between P/J881- 2 and
5 on the Eject Motor and GND (Figure 4).
YN
+24 VDC is measured between P/J846- 6 and 12 on the Finisher PWB and
GND.
YN
Replace the Finisher PWB (PL 17.13).
Check wiring between P/J846- 6 and 12 and P/J881- 2 and 5 for damage or
poor contact.
+24 VDC is measured between P/J881- 1, 3, 4 and 6 on the Eject Motor and
GND.
YN
Replace the Eject Motor (PL 17.8).
Check the wires from P/J846 to P/J881 for damage or poor contact. If the check is
OK, replace the Finisher PWB (PL 17.13).
Check the following:
• Eject Roll for wear and a drive failure (PL 17.8).
• Eject Shaft for wear and a drive failure (PL 17.8).
• Each Driver Gear for wear, a drive failure, and breakage (PL 17.8).
• Belt for disengagement, breakage, and improper tension (PL 17.8).
Press Stop.
• Ensure that the connectors shown in the circuit diagrams (Figure 2, Figure 3, Figure 4)
are securely connected and that the wires are not damaged.
• Replace the Set Clamp Home Sensor (PL 17.8).
• If the problem persists, replace the Finisher PWB (PL 17.13) (Figure 5).

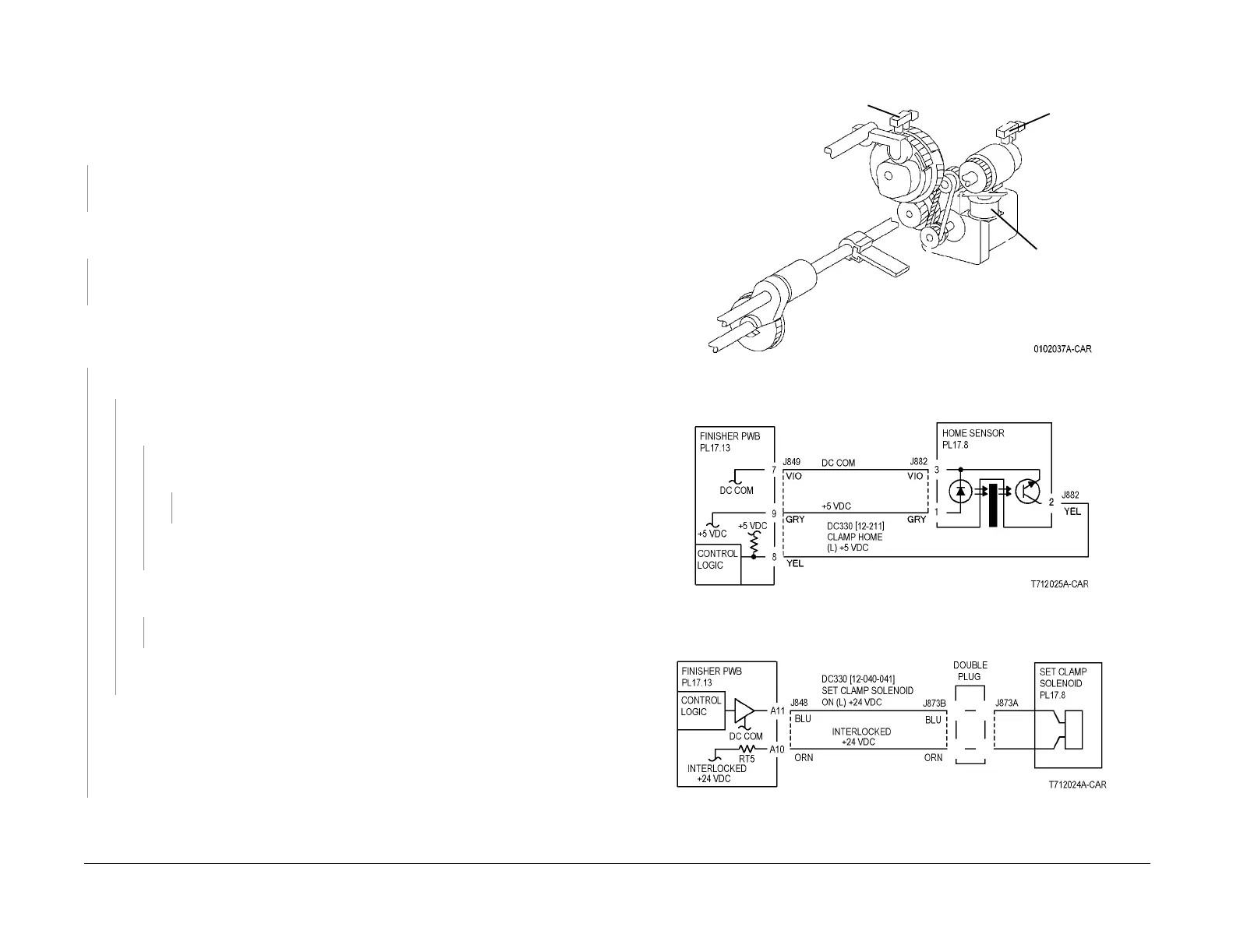

Figure 1 Component Location
Figure 2 12-281 RAP Circuit Diagram - Set Clamp Home Sensor
Figure 3 12-281 RAP Circuit Diagram - Set Clamp Solenoid
Eject Clamp Home Sensor
Set
Clamp
Home
Sensor
Set
Clamp
Solenoid
