Xerox DocuColor 2240

09/03
3-37
DC 3535/2240/1632, WC M24
Residual Image, Streak Deletion in Process Direc-
Image Quality
Initial issue
Residual Image

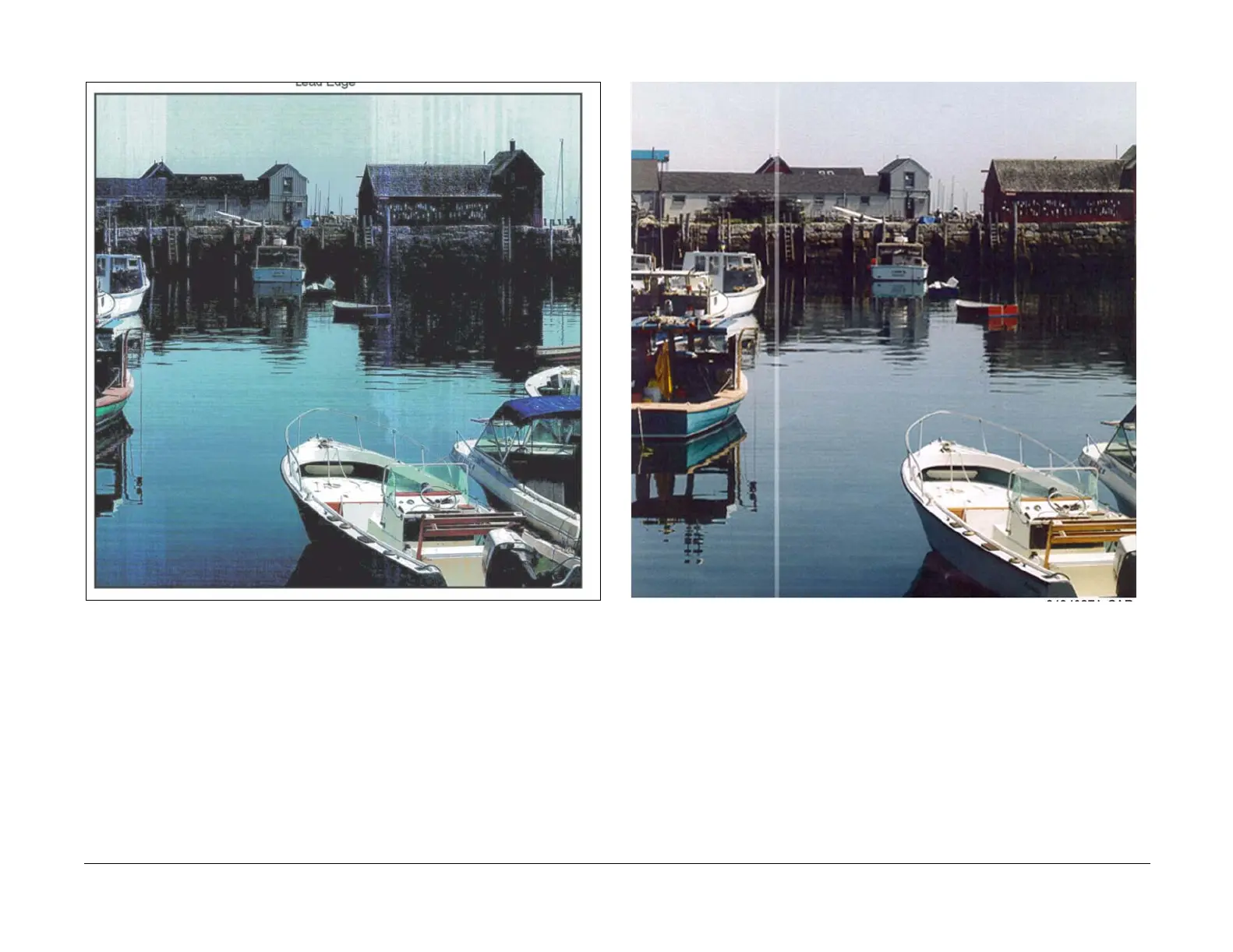

Figure 1 Residual Image Defect Sample
Cause
Improper IBT cleaning and/or defective IBT Belt.
Corrective Action
Go to the IQ5 RAP.
Streak Deletion in Process Direction
Figure 1 Streak Deletion Defect Sample
Cause
Contamination of ROS window, damage to or contact with Transfer Belt or Drum Cartridge
Corrective Action
Go to the IQ12 RAP.
