09/03
4-83
DC 3535/2240/1632, WC M24
REP 9.10, REP 9.11
Repairs and Adjustments
Initial issue

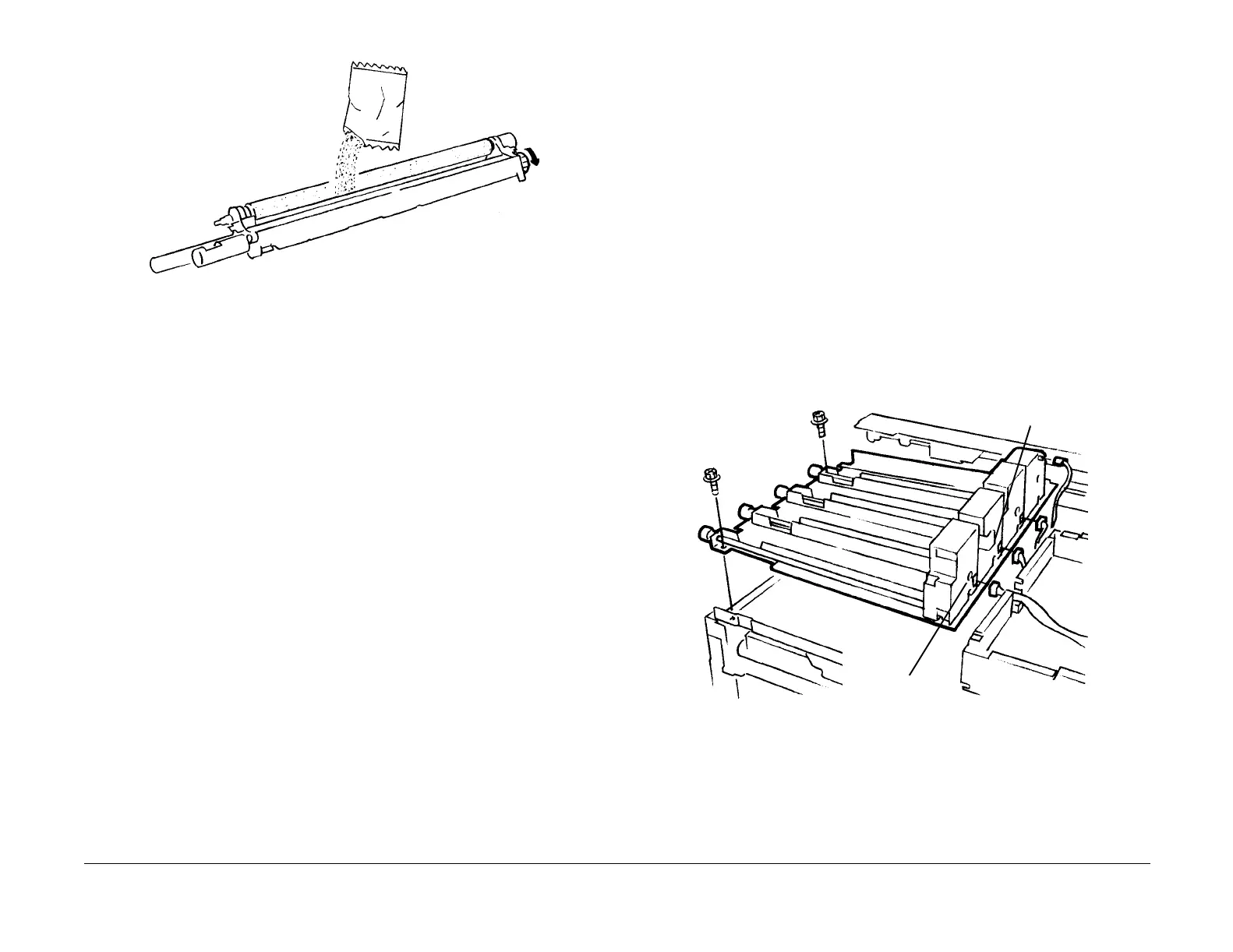

Figure 4 Installing Developer
2. Install Developer Housing.
a. Ensure pin at rear of Developer Housing engages hole in rear frame of machine.
b. Reassemble machine.
c. Perform dC921 ATC Sensor Setup (ADJ 9.2).
REP 9.11 Toner Dispenser Base Assembly
Parts List on PL 6.1
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment activities with
the power switch on or electrical power applied to the machine.
1. Open Front Cover.
2. Remove Drum Cartridges (REP 9.1).
3. Remove Fuser Cover (REP 14.8).
4. Remove Dispenser Cover (REP 9.6).
5. Remove all Toner Dispensers (REP 9.7).
6. Remove Top Cover (REP 14.1).
7. Remove Right Cover (REP 14.3).
8. Remove Toner Dispenser Base Assembly (Figure 1).
a. Remove screws (2).
b. Carefully observe position of wiring harness for later reinstallation
c. Disconnect motor connectors (4).
d. Lift to remove.
Figure 1 Removing Toner Dispense Module
Harness
Screws (2)
Motor Connectors
To Next Page
