Xerox DocuColor 2240 Service Manual

09/03
4-29
DC 3535/2240/1632, WC M24
REP 5.8, REP 5.9
Repairs and Adjustments
Initial issue
REP 5.8 Lower Chute Assembly
Parts List on PL 20.5
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment activities with
the power switch on or electrical power applied to the machine.
1. Open the DADF Top Cover.
2. Remove the DADF Front Cover (PL 20.1).
3. Remove the Entrance Tray (PL 20.1).
4. Remove the Lower Chute Assembly (Figure 1).

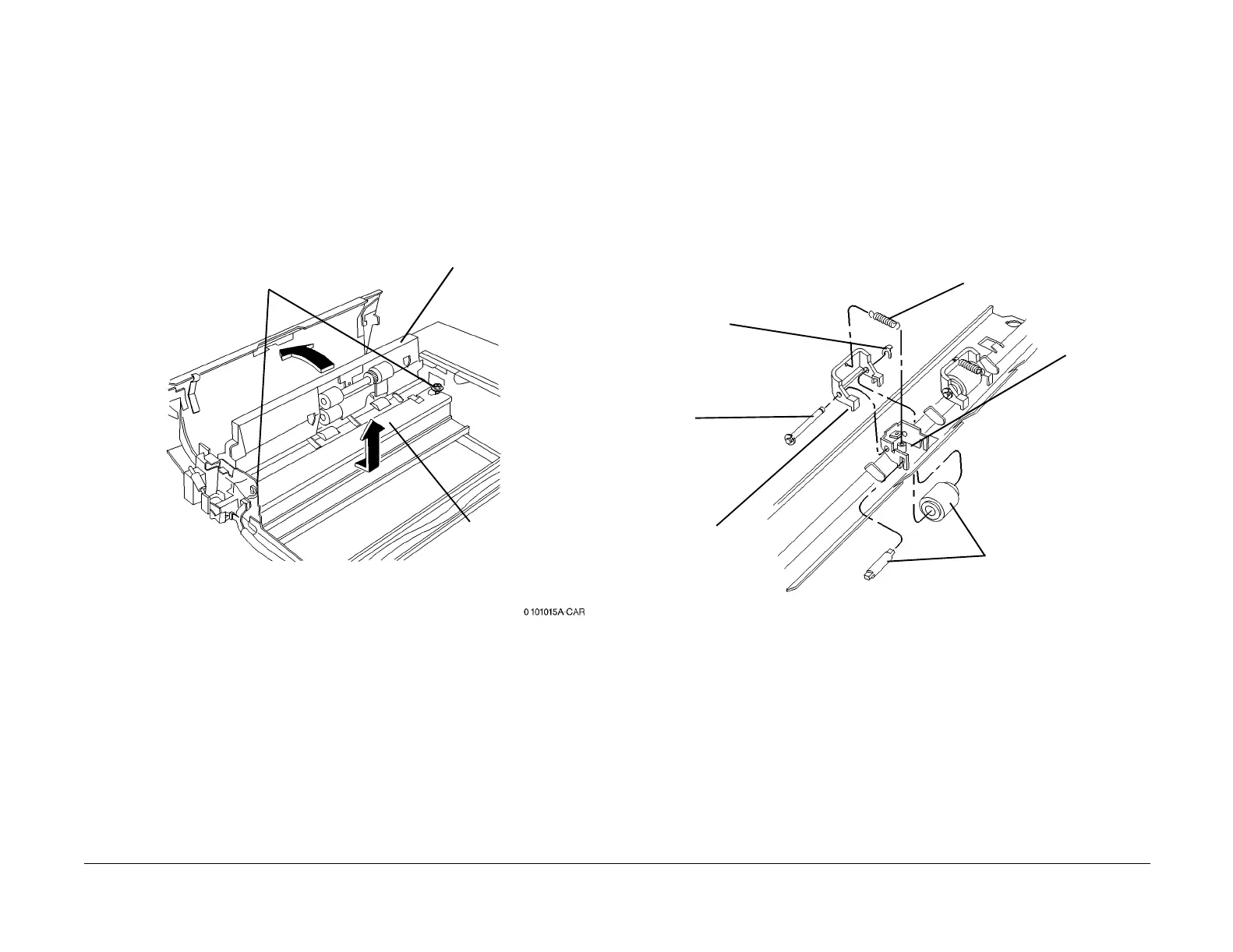

Figure 1 Removing Lower Chute Assembly
REP 5.9 Retard Roll
Parts List on PL 20.5
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment activities with
the power switch on or electrical power applied to the machine.
1. Open Top Cover.
2. Remove the DADF Front Cover (PL 20.1).
3. Remove the Entrance Tray (PL 20.1).
4. Remove Lower Chute Assembly (REP 5.8).
5. Remove Retard Roll (Figure 1).
Figure 1 Removing Retard Roll
Replacement
CAUTION
While replacing Retard Roll, make sure that Retard Roll Plastic Guide is in correct position.
2
Loosen screws (2)
1
Open the Document
Feed Upper Chute
3
Remove Lower
Chute Assembly
2
Remove Spring
3
Remove Clip
4
Remove Shaft
5
Remove
Bracket
6
Remove Shaft
and Retard Roll
1
Note the
position of
plastic guide
