09/03
5-75
DC 3535/2240/1632, WC M24
PL 16.15
Parts List
Initial issue

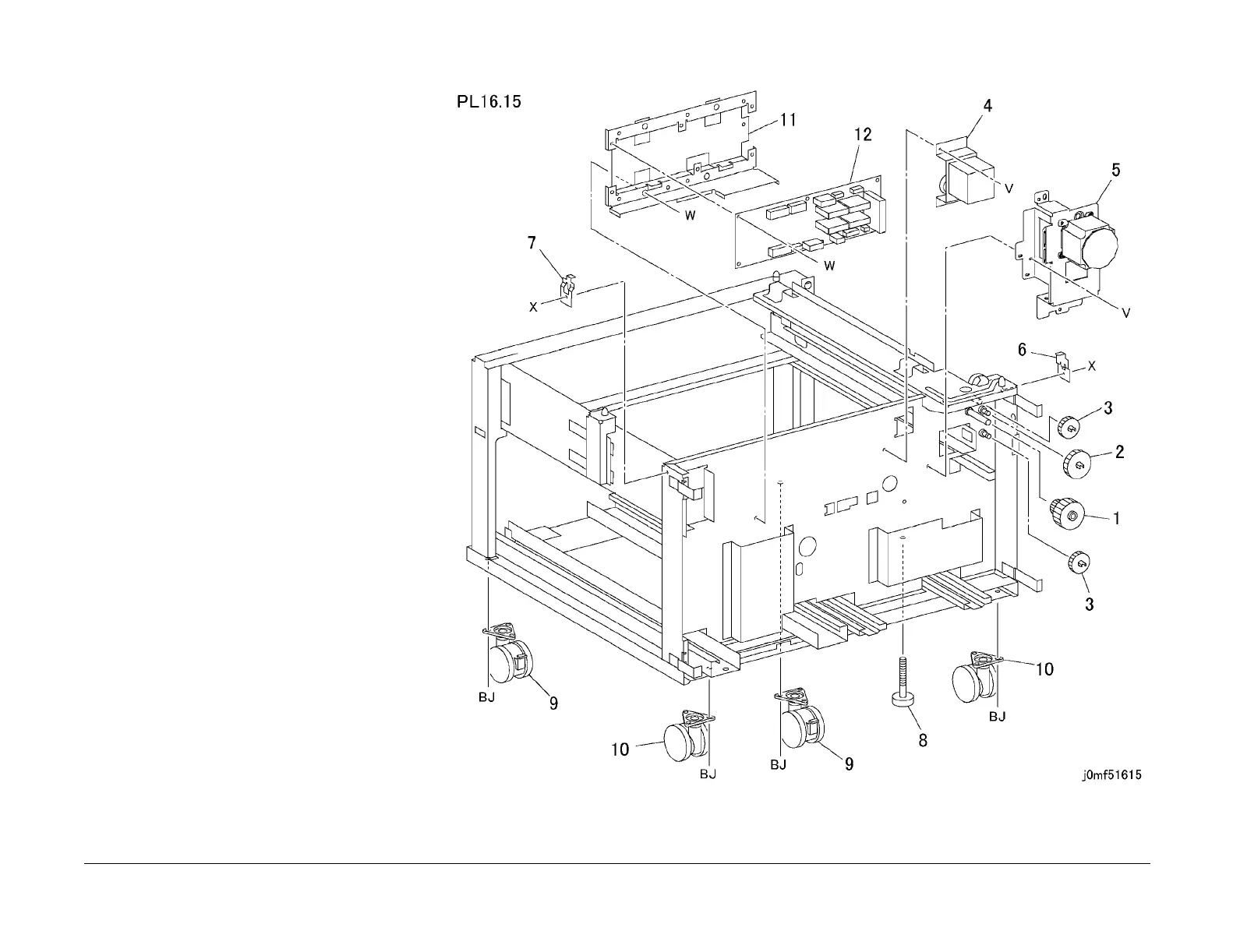

PL 16.15 Electrical Components and
Casters
Item Part Description
1 007E66060 Gear (23/46T)
2 007E66070 Gear (46T)
3 007E66050 Gear (33T)
4 127K31840 Takeaway Motor 2
5 127K36020 Takeaway Motor 1
6 – Left Coupling (Not Spared)
7 – Right Coupling (Not Spared)
8 – Foot (Not Spared)
9 017K92350 Caster
10 017K92360 Caster
11 – Bracket (Not Spared)
12 160K85980 Tray Module PWB
(DC2240/1632/WC24)
– 160K91011 Tray Module PWB (DC3535)
