Xerox DocuColor 2240 Service Manual

09/03
4-77
DC 3535/2240/1632, WC M24
REP 9.5, REP 9.6
Repairs and Adjustments
Initial issue
REP 9.5 Full Toner Sensor
Parts List on PL 4.1
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment activities with
the power switch on or electrical power applied to the machine.
1. Open Front Cover.
2. Remove Waste Toner Cartridge (REP 9.4).
3. Remove Waste Cartridge Toner Cover (REP 9.3).
4. Access Full Toner Sensor (Figure 1).
a. Lift left end slightly and pull left to disengage mounting tabs.
b. Rotate Sensor Support and remove. Left end harness connection limits movement.

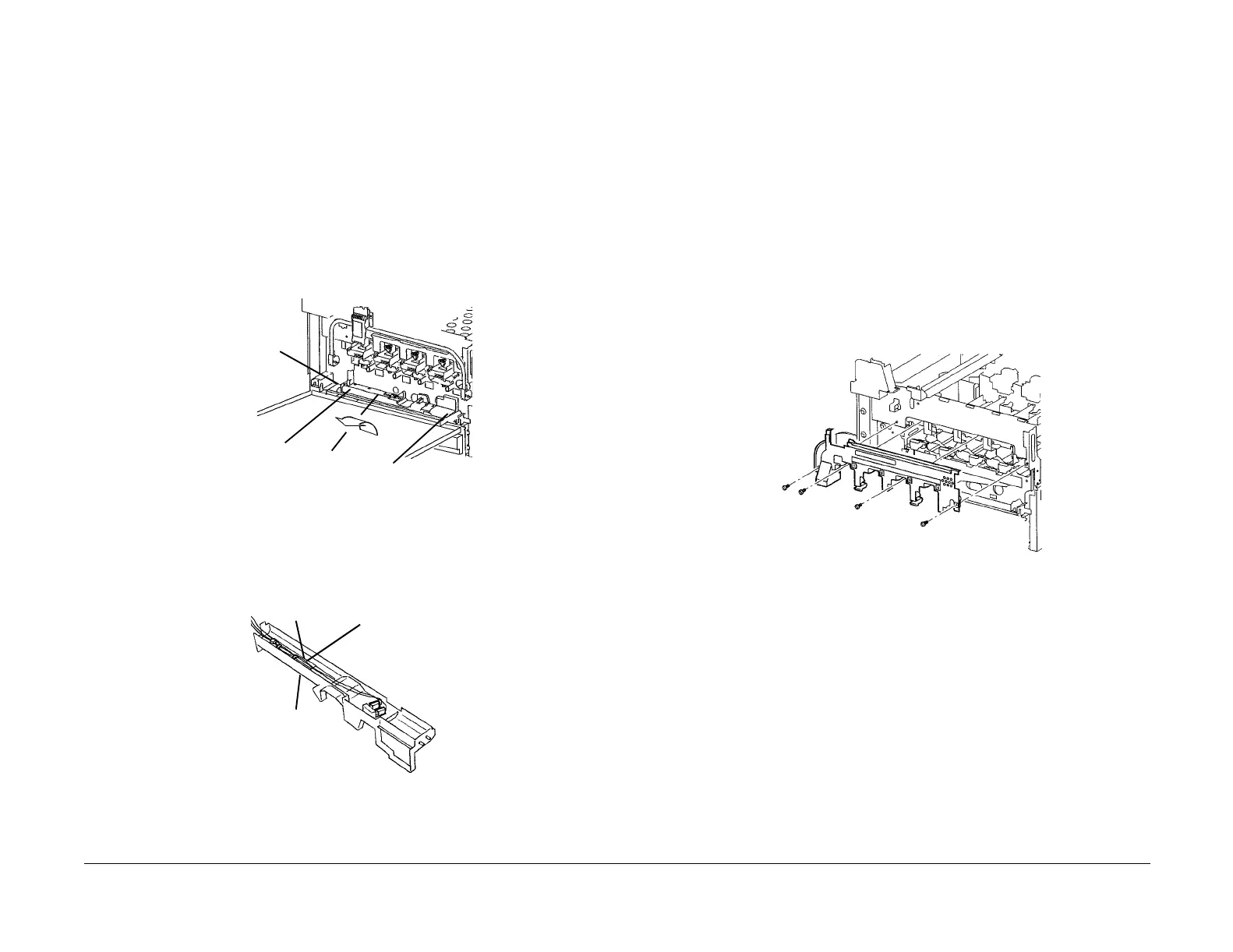

Figure 1 Accessing Full Toner Sensor
5. Remove Full Toner Sensor (Figure 2).
a. Push against sensor head while releasing locking tabs.
b. Disconnect sensor from harness.
Figure 2 Removing Full Toner Sensor
REP 9.6 Dispenser Cover
Parts List on PL 10.2
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment activities with
the power switch on or electrical power applied to the machine.
1. Open Front Cover.
2. Open Left Cover Assembly.
3. Remove the Waste Toner Cartridge (REP 9.4).
4. Remove all four Drum Cartridges (REP 9.1).
5. Remove Fuser Cover (REP 14.8).
6. Release Lever and move half way down.
7. Remove Dispenser Cover (Figure 1).
a. Remove Screws (4).
b. Remove Dispenser Cover.
Figure 1 Removing Dispenser Cover
Left
End
Mounting Tabs
Sensor
Support
Connected
Harness
Locking
Tabs
Full Toner
Sensor
Sensor
Head
Screws (4)
