09/03
4-25
DC 3535/2240/1632, WC M24
REP 5.3
Repairs and Adjustments
Initial issue
REP 5.3 Left/Right Counterbalance
Parts List on PL 20.3
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment activities with
the power switch on or electrical power applied to the machine.
1. Remove DADF (REP 5.1).
2. Remove Rear Cover (REP 5.18).
3. To remove Left Counterbalance, go to step 5.
4. To remove Right Counterbalance, go to step 6.
NOTE: If counterbalance is to be reinstalled, mark as “Left” before removing.
5. Remove Left Counter Balance (Figure 1).

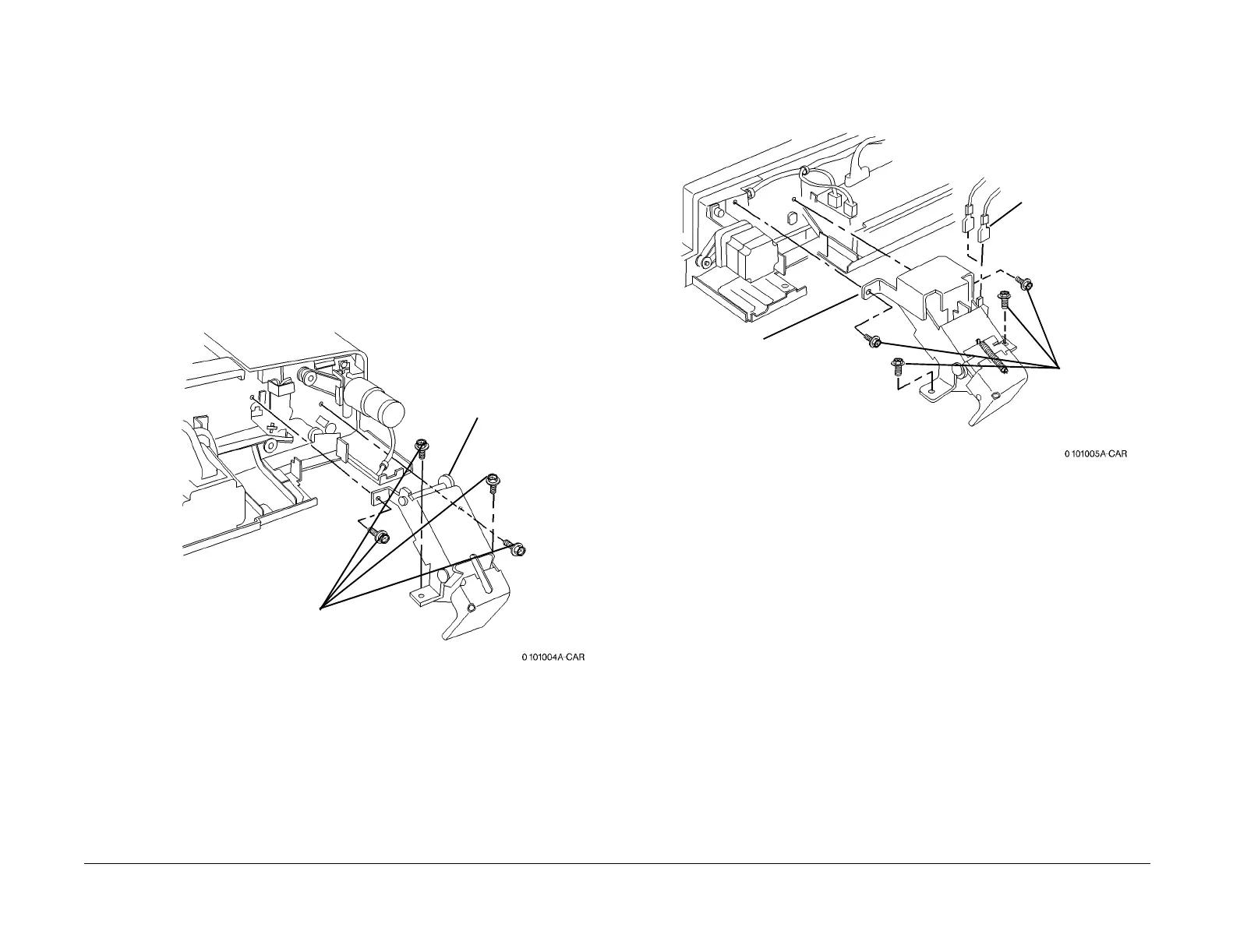

Figure 1 Removing Left Counterbalance
NOTE: If counterbalance is to be reinstalled, mark as “Right” before removing.
6. Remove Right Counterbalance (Figure 2).
Figure 2 Removing Right Counterbalance
Replacement
1. If existing counterbalances are reinstalled, install according to marks made in steps 4 or
5.
1
Remove
screws
2
Remove Left Coun-
terbalance
1
Disconnect
Terminals (2)
2
Remove
screws
3
Remove Right
Counterbalance
To Next Page
