Xerox DocuColor 2240

09/03
2-217
DC 3535/2240/1632, WC M24
9-932, 9-933
Status Indicator RAPs
Initial issue
9-932 Magenta Drum Cartridge Not Detected
The machine logic detected that Magenta Drum Cartridge is not installed.
Initial Actions
• Ensure Magenta Drum Cartridge is installed correctly.
• Switch the power off, then on.
Procedure
Swap Magenta Drum Cartridge with Drum (Y), (C) or K). The problem is corrected.
YN
Check that P/J405 on the MCU PWB and P/J624 are connected. Go to Figure 1 and
check the wires for an open or short. If the check is OK, replace the MCU PWB (PL 13.1).
If the problem continues, replace the ESS PWB (PL 13.1).
Replace the defective Drum Cartridge (refer to Section 6, Machine Consumables).

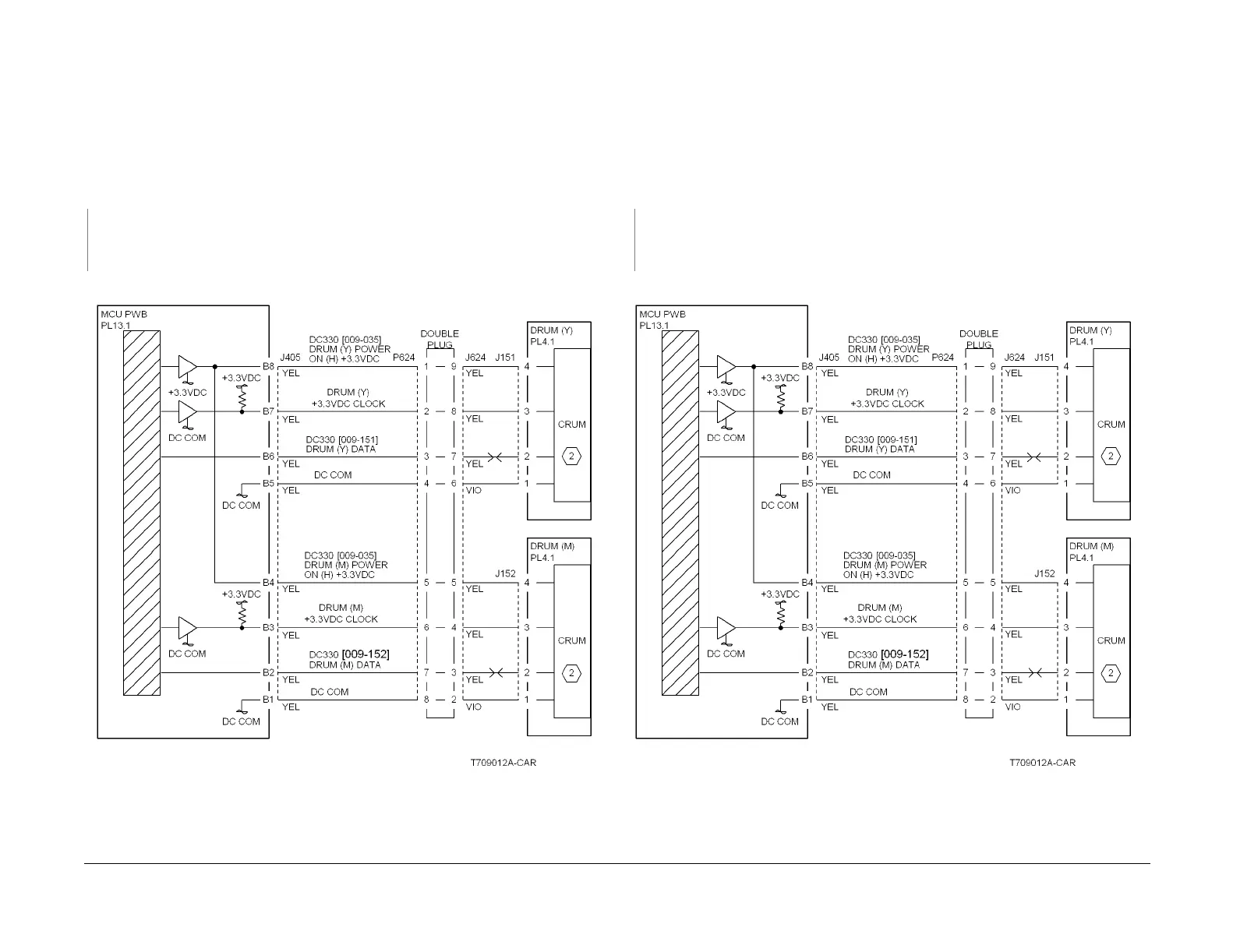

Figure 1 9-932 Rap Circuit Diagram - Drum M Communication
9-933 Yellow Drum Cartridge Not Detected
The machine logic detected that the Yellow Drum Cartridge is not installed.
Initial Actions
• Ensure Yellow Drum Cartridge is installed correctly.
• Switch the power off, then on.
Procedure
Swap Yellow Drum Cartridge with Drum (K), (C) or (M). The problem is corrected.
YN
Check that P/J405 on the MCU PWB and P/J624 are connected. Go to Figure 1 and
check the wires for an open or short. If the check is OK, replace the MCU PWB (PL 13.1).
If the problem continues, replace the ESS PWB (PL 13.1).
Replace the defective Drum Cartridge (refer to Section 6, Machine Consumables).
Figure 1 9-933 Rap Circuit Diagram - Drum Y Communication
