Repairs and Adjustments
REP 9.12 IBT Steering Motor Assembly
Parts List on PL 1.3
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment activities with
the power switch on or electrical power applied to the machine.
1. Open Front Cover.
2. Remove Fuser Cover (REP 14.8).
3. Remove Dispenser Cover (REP 9.6).
4. Remove Steering Motor (Figure 1).
a. Disconnect connector.
b. Remove screws (3).
c. Pull out to remove using care to avoid damage to steering gear.

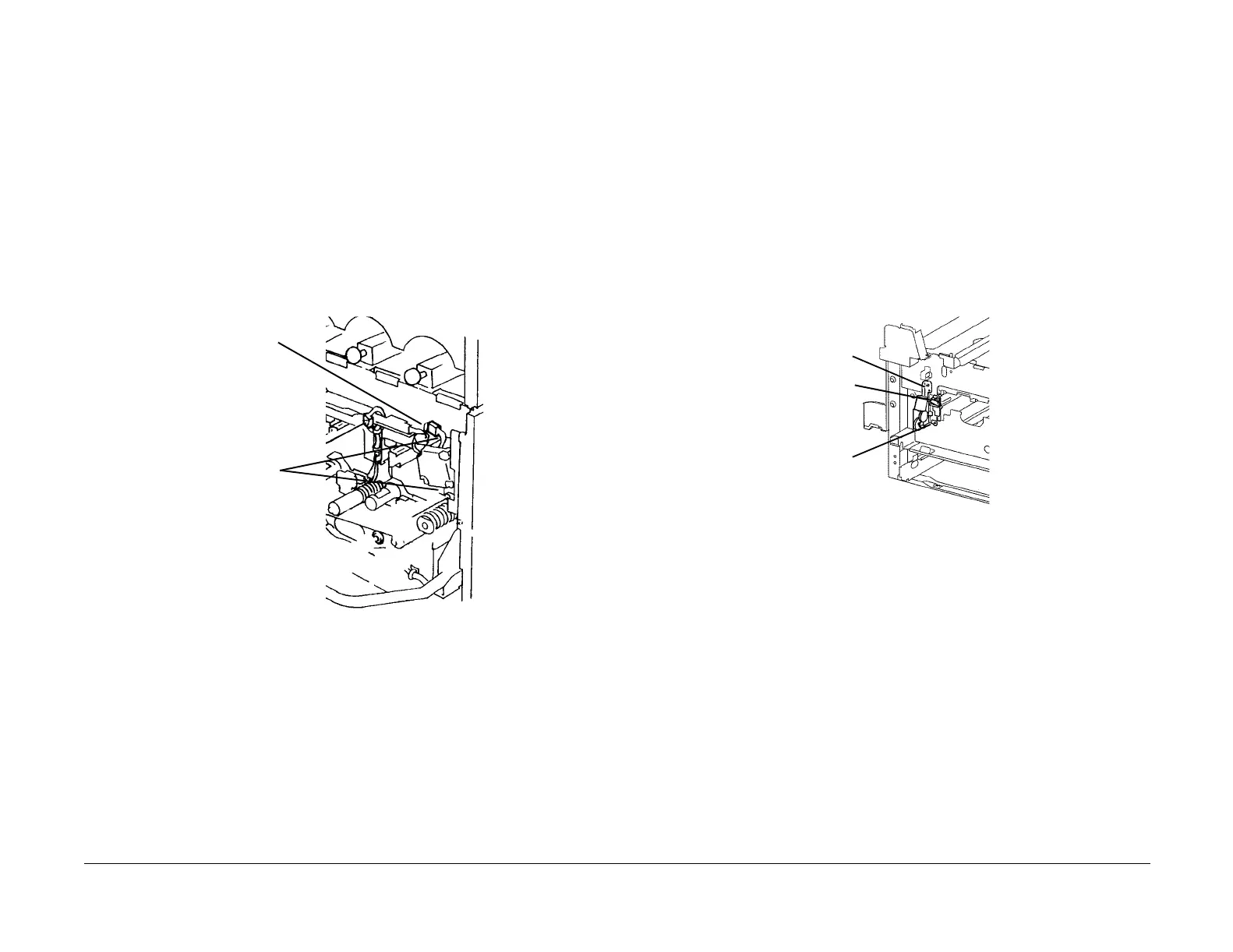

Figure 1 Removing Steering Motor
REP 9.13 Agitator Motor Assembly
Parts List on PL 4.1
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment activities with
the power switch on or electrical power applied to the machine.
1. Open Front Cover.
2. Remove Waste Toner Cartridge (REP 9.4).
3. Remove Fuser Cover (REP 14.8).
4. Remove Dispenser Cover (REP 9.6).
5. Remove Agitator Motor Assembly (Figure 1).
a. Disconnect connector.
b. Remove screws (2) and remove Agitator Motor Assembly.
Figure 1 Removing Waste Toner Agitator
Connector
Screws (3)
Screw
Connector
Screw
To Next Page
