Xerox DocuColor 2240 Service Manual

09/03
5-82
DC 3535/2240/1632, WC M24
PL 17.6
Initial issue
Parts List

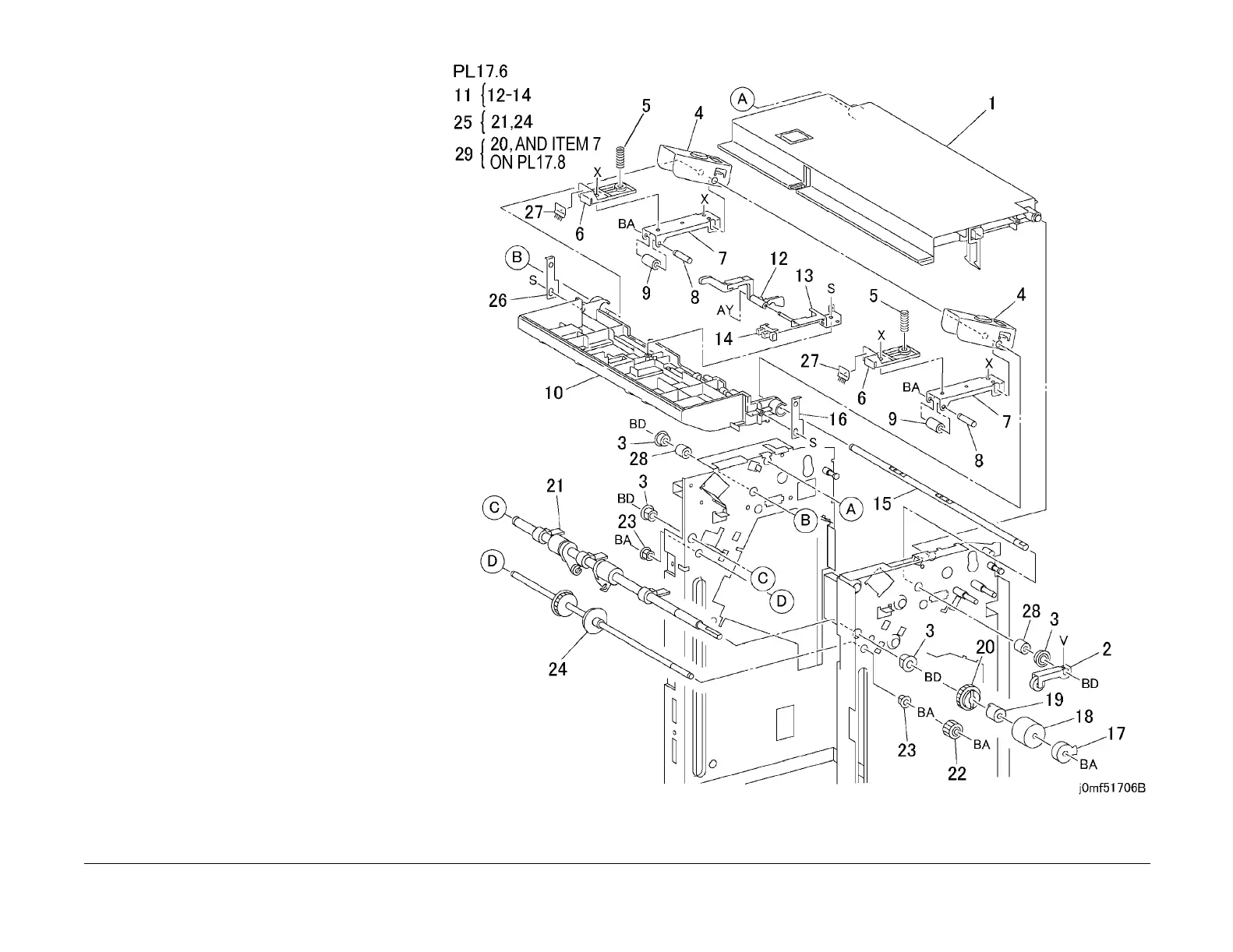

PL 17.6 Top Cover and Eject Roll
Item Part Description
1 802K28571 Top Cover
2 – Arm (Not Spared)
3 – Bearing (Not Spared)
4 – Bracket (Not Spared)
5 – Spring (Not Spared)
6 830E81670 Support
7 – Bracket (Not Spared)
8 – Shaft (Not Spared)
9 022K61480 Eject Pinch Roll
10 – Eject Chute (Not Spared)
11 130K61920 Stack Height Sensor Assembly
(REP 12.5)
12 – Actuator (P/O PL 17.6 Item 11)
13 – Bracket (P/O PL 17.6 Item 11)
14 130E82530 Stack Height Sensor
15 – Shaft (Not Spared)
16 – Link (Not Spared)
17 120E20970 Actuator
18 005E16220 Clutch
19 005E16510 Collar
20 – Gear (P/O PL 17.6 Item 29) (34Z)
(DC2240/1632/WC24)
– 007E76930 Gear (34Z) (DC3535)
21 – Eject Roll (P/O PL 17.6 Item 25)
22 007K86910 Gear (20T)
23 013E20240 Bearing
24 – Eject Shaft (P/O PL 17.6 Item 25)
25 006K21730 Eject Roll Assembly (REP 12.6)
26 – Link (Not Spared)
27 – Static Eliminator (Not Spared)
28 – Collar (Not Spared)
29 604K09720 Eject Gear Kit
(DC2240/1632/WC24)
