09/03
4-27
DC 3535/2240/1632, WC M24
REP 5.6
Repairs and Adjustments
Initial issue
REP 5.6 Nudger Roll
Parts List on PL 20.4
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment activities with
the power switch on or electrical power applied to the machine.
1. Remove DADF Inner Cover (Figure 1).

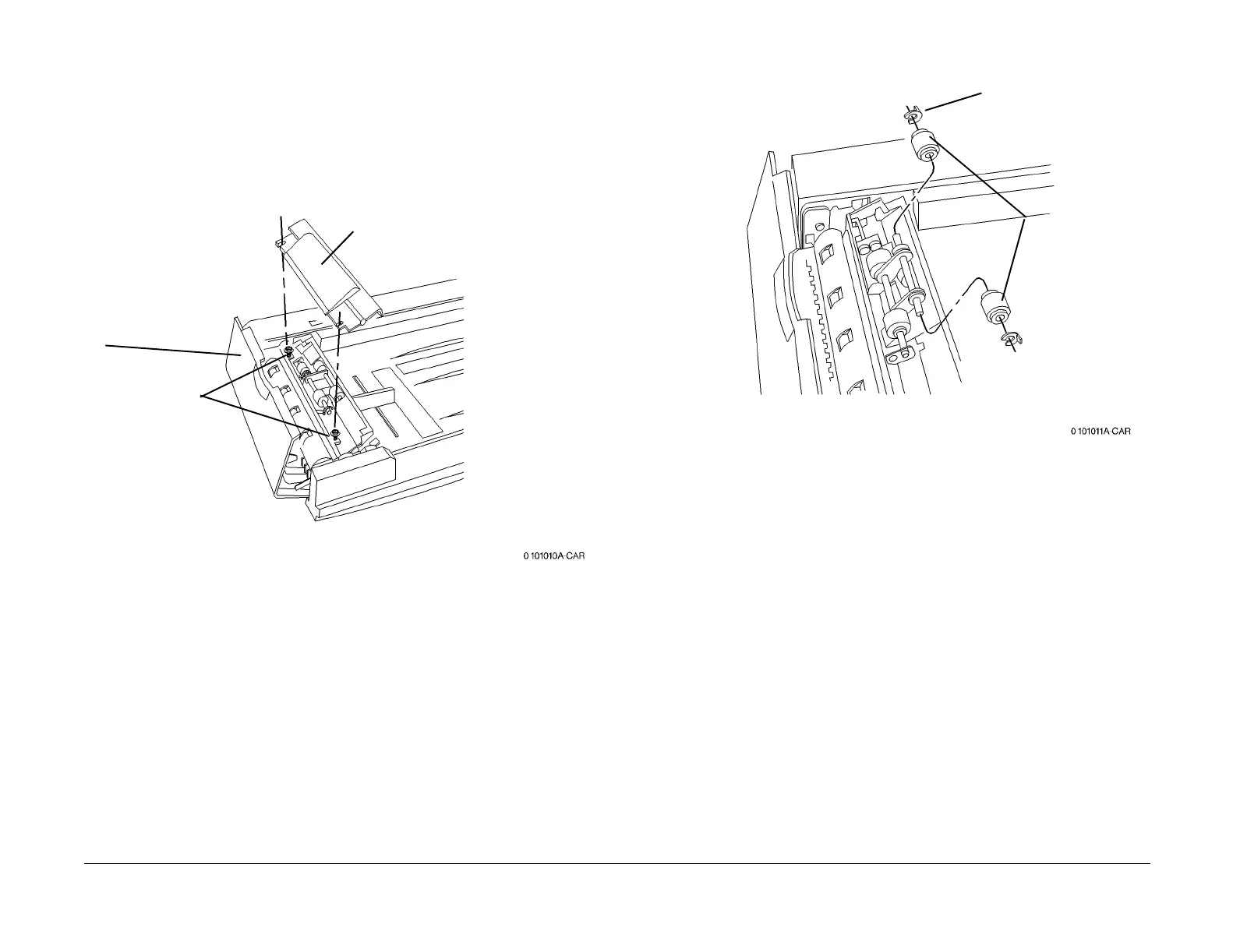

Figure 1 Removing Inner Cover
2. Remove Nudger Rolls (Figure 2).
Figure 2 Remove Nudger Rolls
Replacement
Ensure that both Nudger Rolls rotate freely in the direction of document movement.
1
Open Top Cover
2
Loosen
screws
3
Remove Inner Cover
1
Remove Clips (2)
2
Remove Nudger
Rolls
To Next Page
