09/03
5-51
DC 3535/2240/1632, WC M24
PL 15.2
Parts List
Initial issue

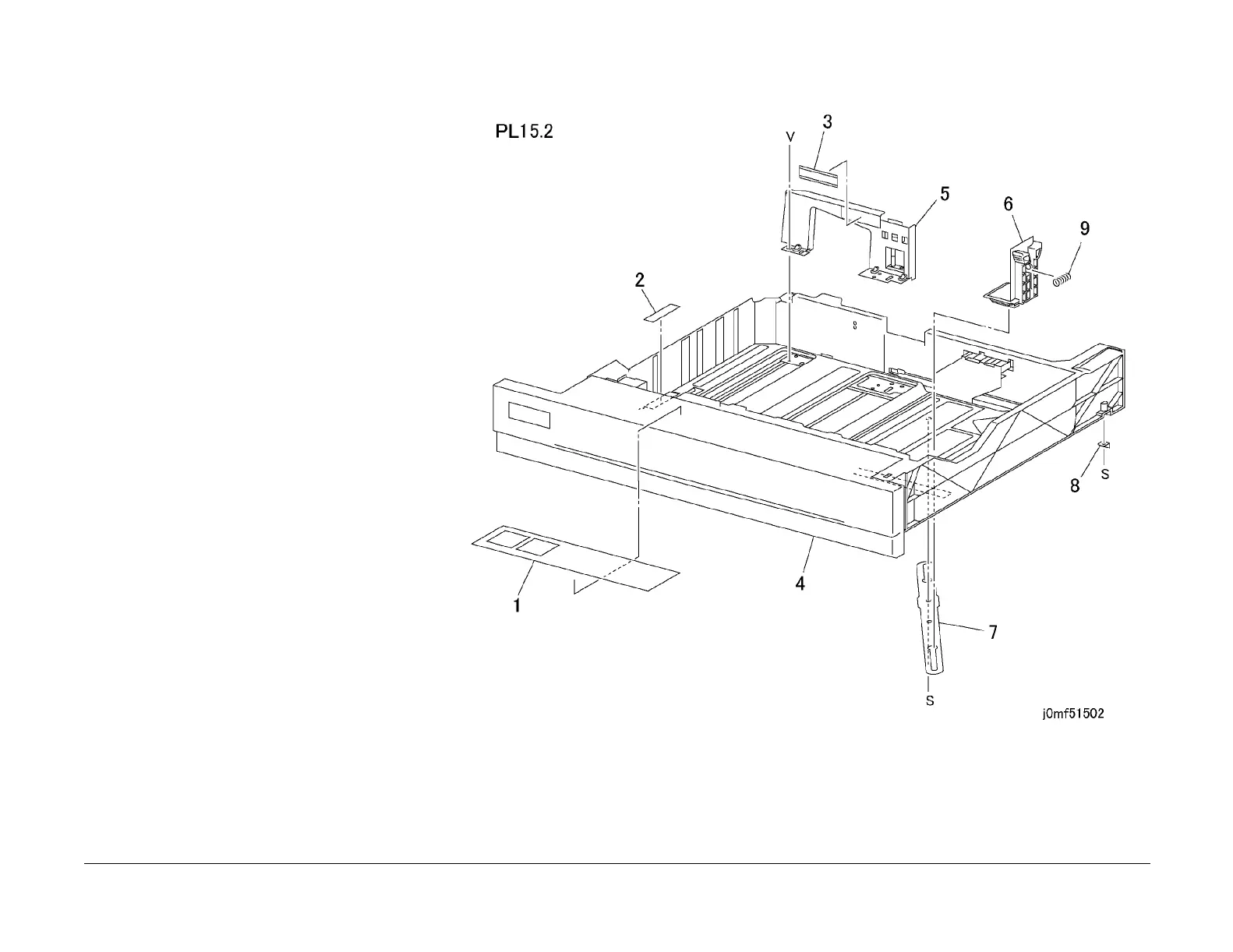

PL 15.2 Tray Assembly
Item Part Description
1 892E90351 Instruction Label (DC3535/WC24)
– 892E13310 Instruction Label (DC2240/1632)
2 – Pad (Not Spared)
3 – Max Label (Not Spared)
4 – Tray (Not Spared)
5 – Side Guide (Not Spared)
6 – End Guide (Not Spared)
7 – Link (Not Spared)
8 – Stop (Not Spared)
9 – Spring (Not Spared)
