09/03
5-84
DC 3535/2240/1632, WC M24
PL 17.8
Initial issue
Parts List

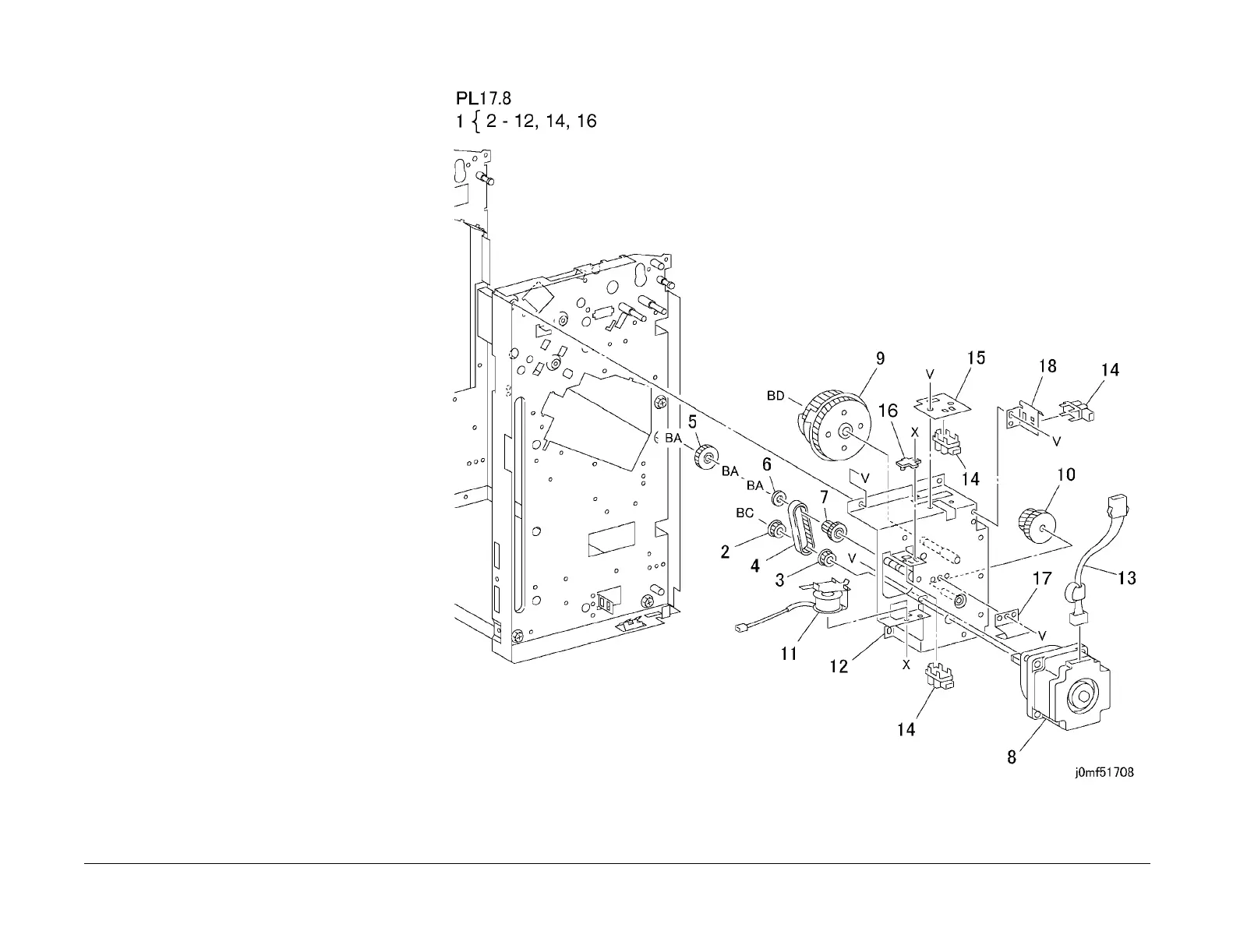

PL 17.8 Paper Transportation: 2 of 2
Item Part Description
1 604K11150 Finisher DR Repair Kit
2 020E34970 Pulley
3 007E67780 Gear (15Z)
4 423W28054 Belt
5 007E67810 Gear (30Z)
6 – Collar (P/O PL 17.8 Item 1)
7 – Gear Pulley (P/O PL 17.6 Item 29)
(23Z,16T) (DC2240/1632/WC24)
– 007E76940 Gear Pulley (23Z,16T) (DC3535)
8 127K32870 Eject Motor
9 007E67800 Cam Gear
10 007E67770 Gear (42Z/27Z)
11 121K24620 Set Clamp Solenoid
12 – Bracket (P/O PL 17.8 Item 1)
13 – Wire Harness (Not Spared)
14 130E82540 Home Sensor
15 – Plate (Not Spared)
16 – Stop (P/O PL 17.8 Item 1)
17 – Spring (Not Spared)
18 – Bracket (Not Spared)
To Next Page
