Xerox DocuColor 2240 Service Manual

09/03
4-150
DC 3535/2240/1632, WC M24
REP 14.12
Initial issue
Repairs and Adjustments
REP 14.12 Left Lower Cover
Parts List on PL 16.16 (TTM), PL 15.11 (3TM)
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment activities with
the power switch on or electrical power applied to the machine.
1. Remove the Left Lower Cover (Figure 1).

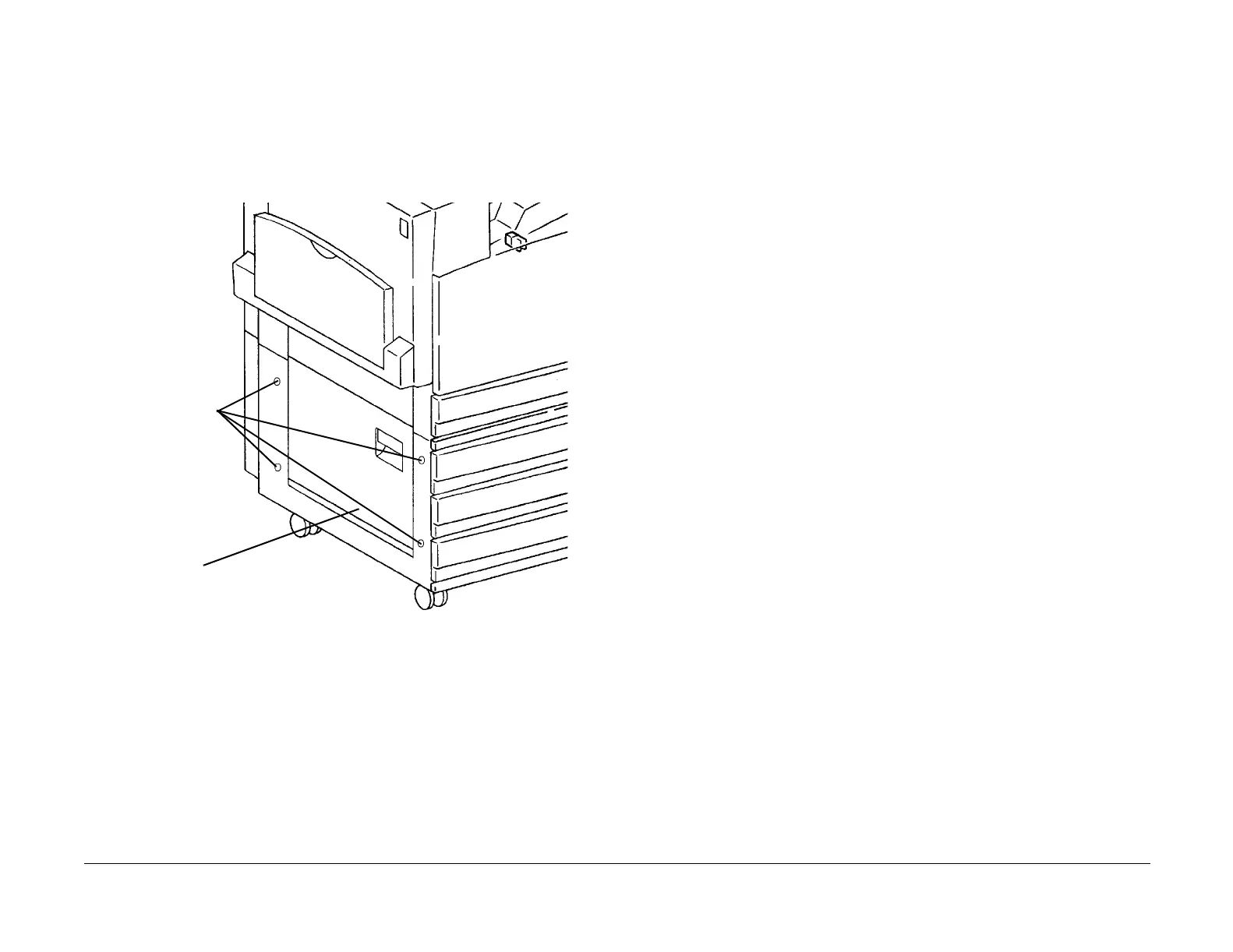

Figure 1 Removing the Left Lower Cover
1
Open the Left
Cover Assembly
2
Remove
Screws (4)
