Repairs and Adjustments
REP 1.12 ESS PWB
Parts List on PL 13.1
Removal
1. Gather all available settings information. This includes the NVM log, the Machine Settings
floppy, Configuration Report, etc. If possible save the current Machine Settings to disk.
WARNING
To avoid personal injury or shock, do not perform repair or adjustment activities with
the power switch on or electrical power applied to the machine.
2. Remove the Right Cover (REP 14.3).
3. Remove the Top Cover (REP 14.1).
4. Remove the Rear Cover (REP 14.2).
5. Remove the ESS Top Cover (PL 13.1).
CAUTION
Protect the Hard Drive harness. The Hard Drive is mounted to ESS Top Cover; the har-
ness remains connected to the ESS PWB while removing the cover.
a. Remove screws (11) from ESS Top Cover.
b. Lift ESS Top Cover and place it upside down on Toner Cartridges.
c. Disconnect the Hard Drive harness from the ESS PWB.
NOTE: If the machine is equipped with a Token Ring and / or Fax Module, (DC2240/1632
and WC24 only) proceed with steps 6 - 9. If the machine is not equipped with Token Ring
/ Fax Module, proceed with step 9.
6. Remove the Token Ring and / or Fax Interface PWB (Figure 1).

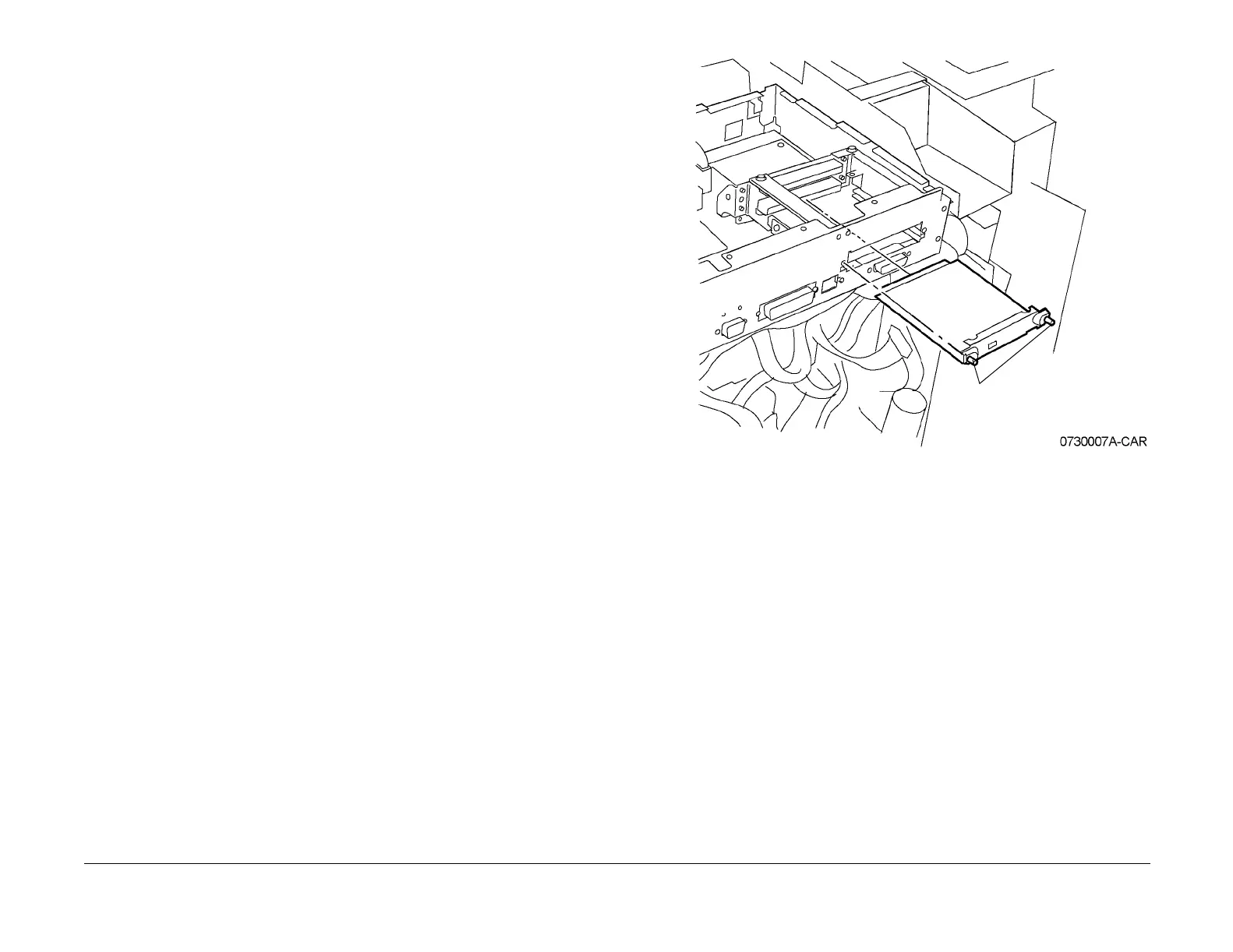

Figure 1 Removing Token Ring / Fax Interface PWB
7. Remove the Guide Bracket and the Plate (Figure 2).
1
Loosen thumb-
screws (2)
2
Slide out
Token Ring
and / or Fax
Interface
PWB
To Next Page
