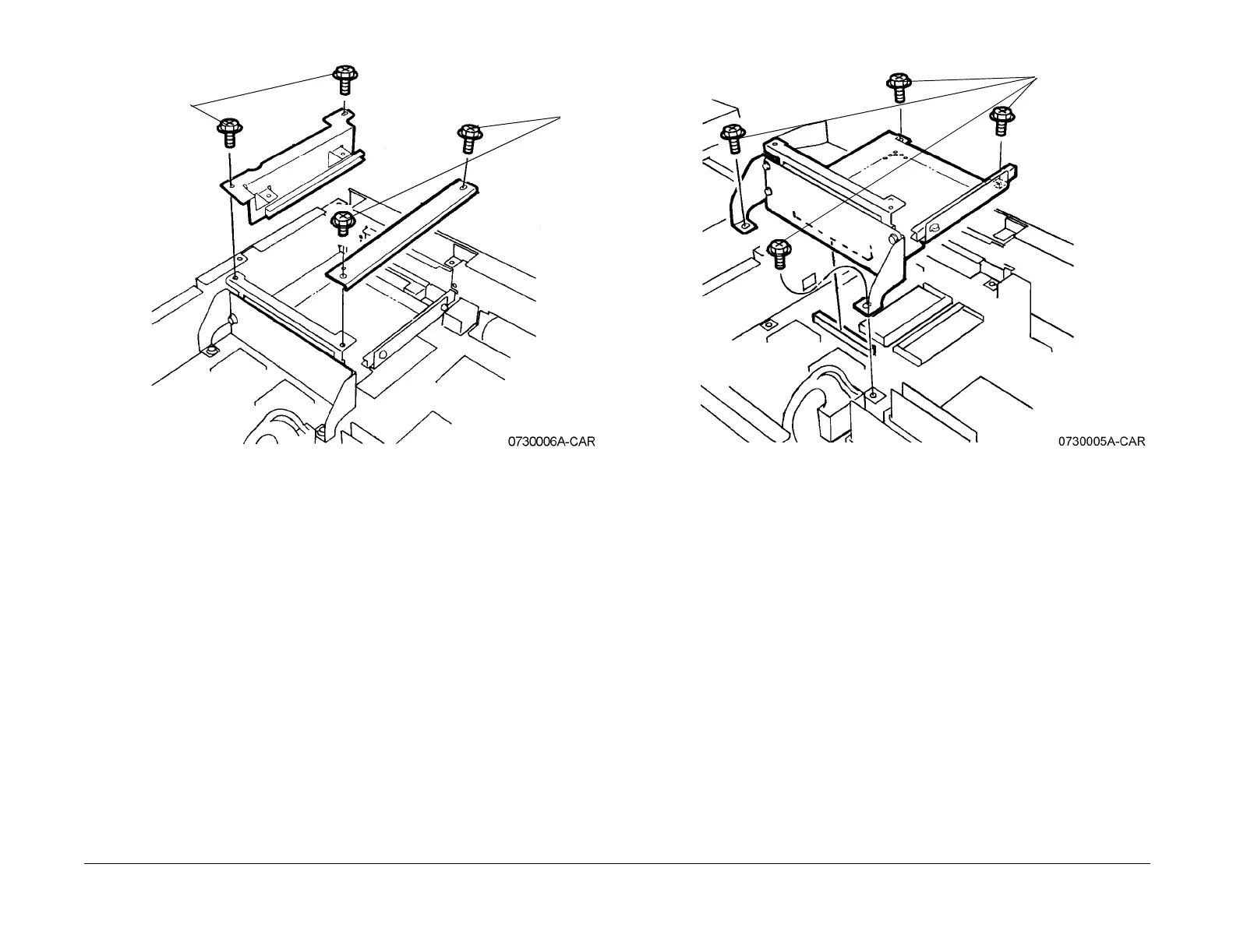

Figure 2 Removing Guide Bracket and Plate
8. Remove the Chassis Assembly Riser (Figure 3).
Figure 3 Removing the Chassis Assembly Riser
CAUTION
PWBs can be damaged by electrostatic discharge. Observe all ESD procedures.
9. Remove the ESS PWB (Figure 4).
1
Remove screws
(2) securing the
Guide Bracket
2
Remove screws (2)
securing the Plate
1
Remove screws (4)
2
Lift riser to
disconnect
from the
ESS
