09/03
5-61
DC 3535/2240/1632, WC M24
PL 16.1
Parts List
Initial issue

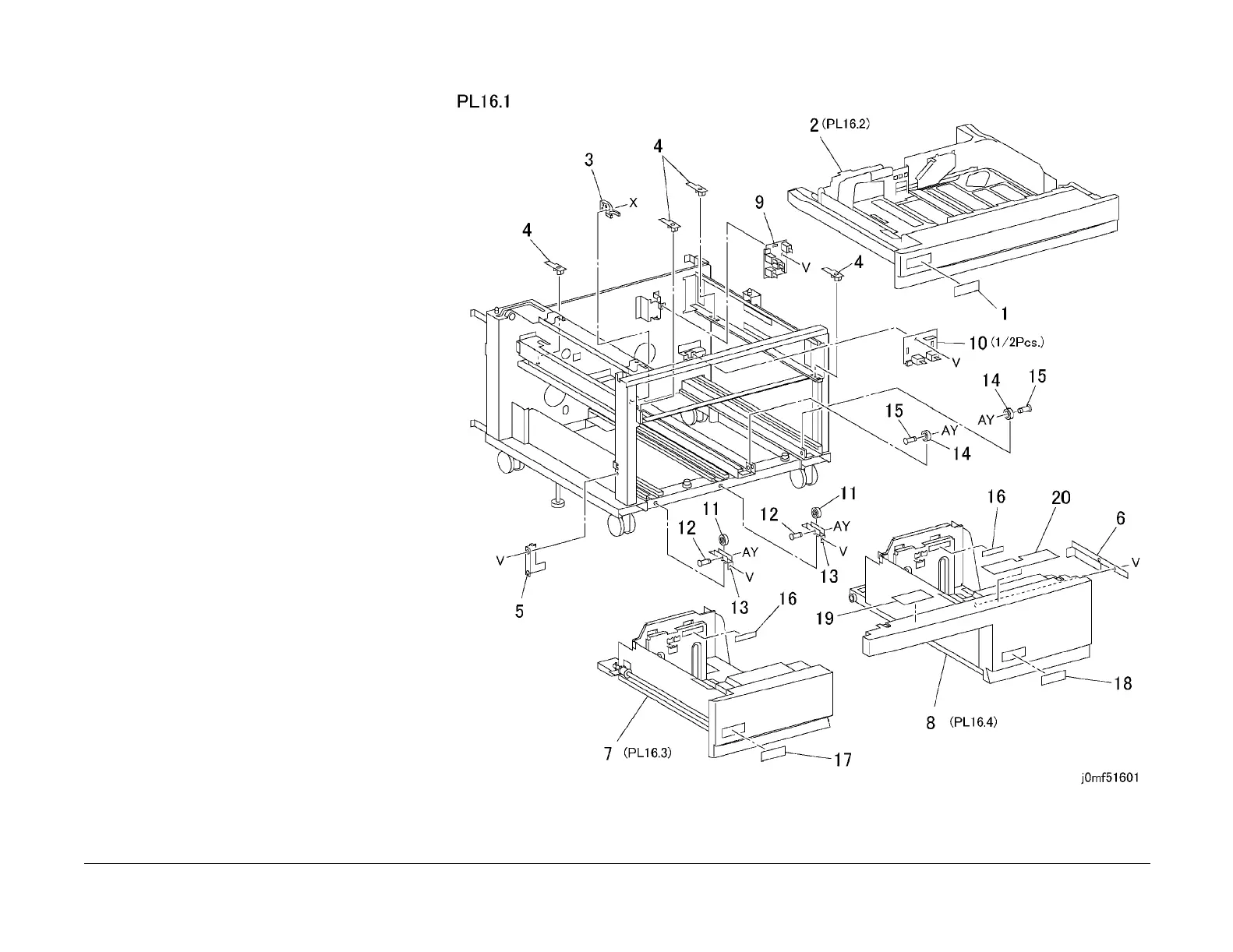

PL 16.1 Tray 2/3/4 Assembly
Item Part Description
1 891E49060 Label (Tray 2) (DC2240/1632)
– 892E89190 Label (Tray 2) (DC3535/WC24)
2 050K48171 Tray 2 (DC2240/1632) (REP 7.9)
– 050K48981 Tray 2 (DC3535/WC24) (REP 7.9)
3 003E23672 Stop (Tray 2)
4 014E42850 Spacer (Tray 2)
5 – Stop (Not Spared) (Tray 3)
6 – Stop (Not Spared) (Tray 4)
7 050K49050 Tray 3 (DC3535/WC24) (REP 7.6)
– 050K43130 Tray 3 (DC2240/1632) (REP 7.6)
8 050K49060 Tray 4 (DC3535/WC24) (REP 7.7)
– 050K43120 Tray 4 (DC2240/1632) (REP 7.7)
9 110K08541 Tray 2 Paper Size Sensor
10 110K10880 Tray 3/4 Paper Size Sensor
11 059E95930 Roll
12 – Shaft (Not Spared)
13 – Bracket (Not Spared)
14 – Roll (Not Spared)
15 – Shaft (Not Spared)
16 – Max Label (Not Spared)
17 891E49510 Label (Tray 3) (DC2240/1632)
– 892E89200 Label (Tray 3) (DC3535/WC24)
18 891E49520 Label (Tray 4) (DC2240/1632)
– 892E89210 Label (Tray 4) (DC3535/WC24)
19 892E28491 Label
20 – Instruction Label (Not Spared)
To Next Page
