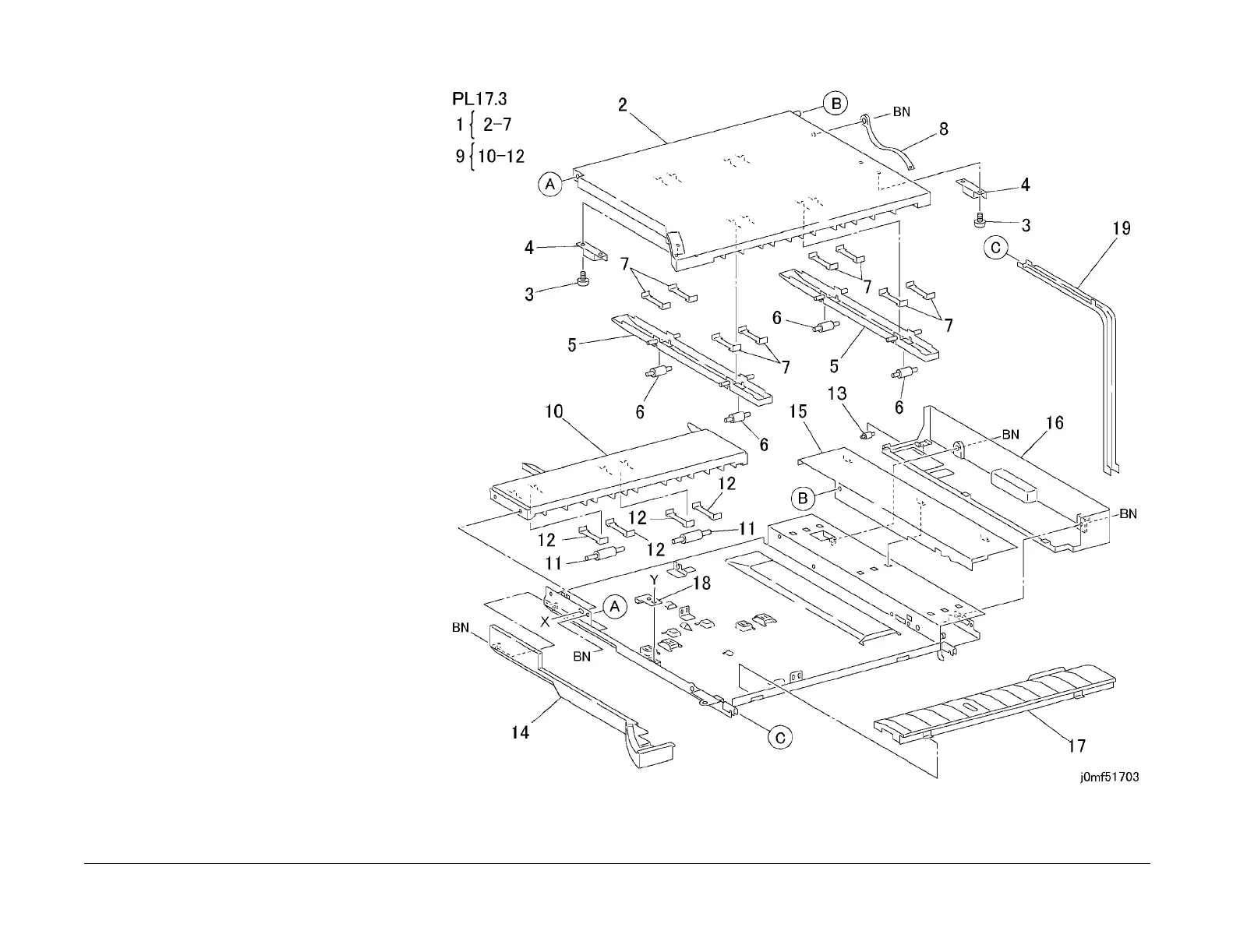

PL 17.3 H-Transport Assembly: 1 of 2
Item Part Description
1 802K28600 H-Transport Cover Assembly
2 – H-Transport Cover (P/O PL 17.3
Item 1)
3 – Screw (P/O PL 17.3 Item 1)
4 121E89780 Magnet
5 – Guide (P/O PL 17.3 Item 1)
6 – Roll (P/O PL 17.3 Item 1)
7 – Spring Plate (P/O PL 17.3 Item 1)
8 – Stop (Not Spared)
9 802K28590 Entrance Upper Cover Assembly
10 – Entrance Upper Cover (P/O PL
17.3 Item 9)
11 – Roll (P/O PL 17.3 Item 9)
12 – Spring Plate (P/O PL 17.3 Item 9)
13 – Roll (Not Spared)
14 – Front Cover (Not Spared)
15 – Upper Rear Cover (Not Spared)
16 – Rear Cover (Not Spared)
17 – Exit Guide (Not Spared)
18 – Stop (Not Spared)
19 849E04830 Support
