09/03
4-79
DC 3535/2240/1632, WC M24
REP 9.8
Repairs and Adjustments
Initial issue
REP 9.8 Plate Assembly
Parts List on PL 4.2
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment activities with
the power switch on or electrical power applied to the machine.
1. Remove Front Cover (REP 14.7).
2. Remove Drum Cartridges (REP 9.1).
3. Remove Waste Toner Cartridge (REP 9.4).
4. Remove Waste Toner Cartridge Cover (REP 9.3).
5. Remove Fuser Cover (REP 14.8).
6. Remove Dispenser Cover (REP 9.6).
7. Remove all Toner Dispenser (REP 9.7).
CAUTION
Note position of harnesses. Correct harness routing is required for assembly.
NOTE: In next step, do not remove sensor.
8. Remove housing for Full Toner Sensor (REP 9.5).
9. Disconnect Developer housing connectors, 4 large and 4 small (small not shown).
Position wires straight out from machine. Wires remain stationary while removing Plate
Assembly (Figure 1).

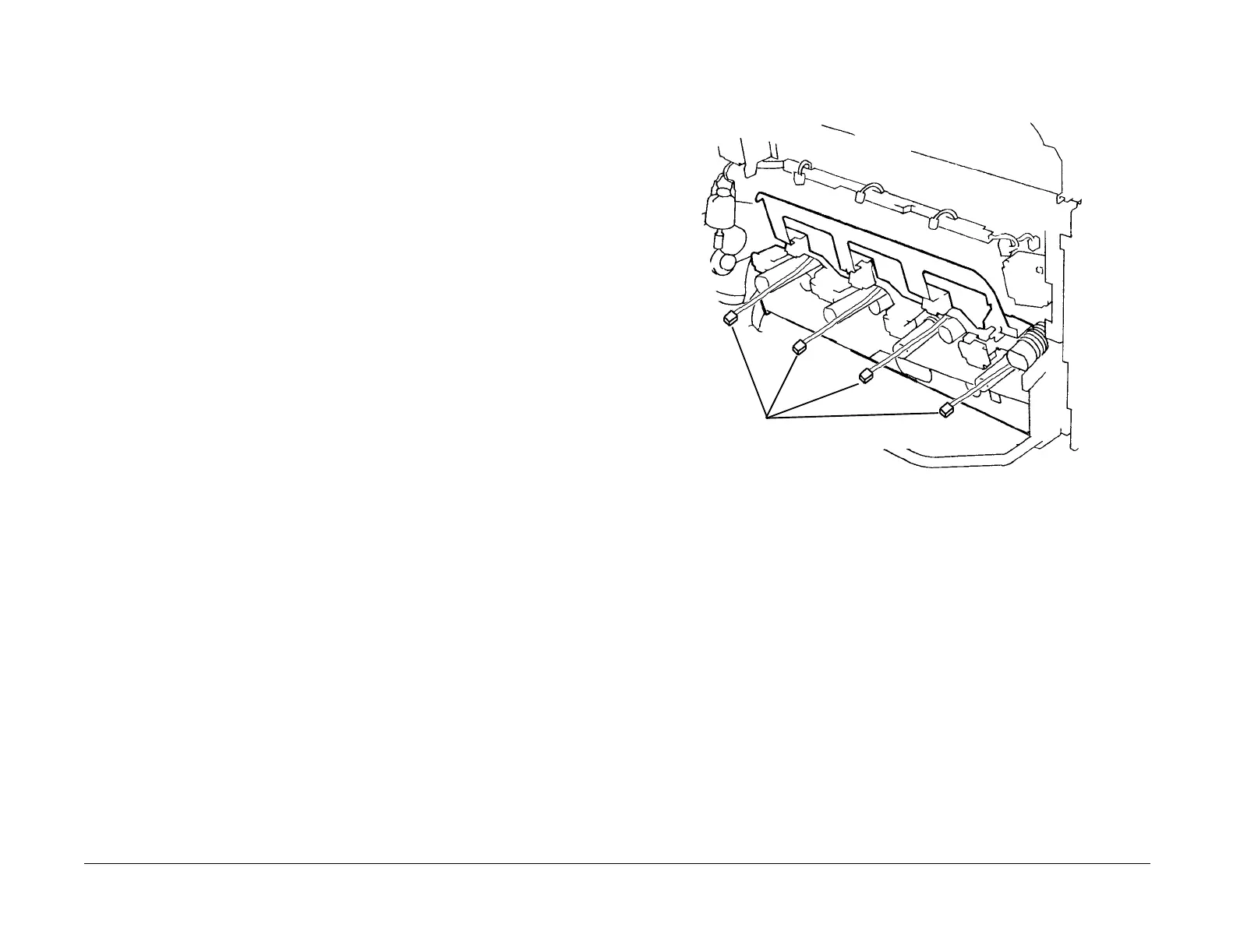

Figure 1 Disconnecting Developer Housing Connectors
Developer Housing
connectors (4 Large)
To Next Page
