09/03
4-106
DC 3535/2240/1632, WC M24
REP 12.4
Initial issue
Repairs and Adjustments
REP 12.4 Finisher
Parts List on PL 17.5
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment activities with
the power switch on or electrical power applied to the machine.
1. Separate IIT and IOT.
2. Remove the following parts:
a. H Transport Assembly (REP 12.1)
b. Stacker Tray (PL 17.1)
c. Right Cover (PL 17.1)
3. Disconnect the Finisher power and signal cable.
CAUTION
It is recommended to have two people available to remove the Finisher. The Finisher Unit
weighs more than 16Kg.
When only one person is available, take extreme care to avoid lower back injury.
4. Remove the Finisher from the Rack (Figure 1).

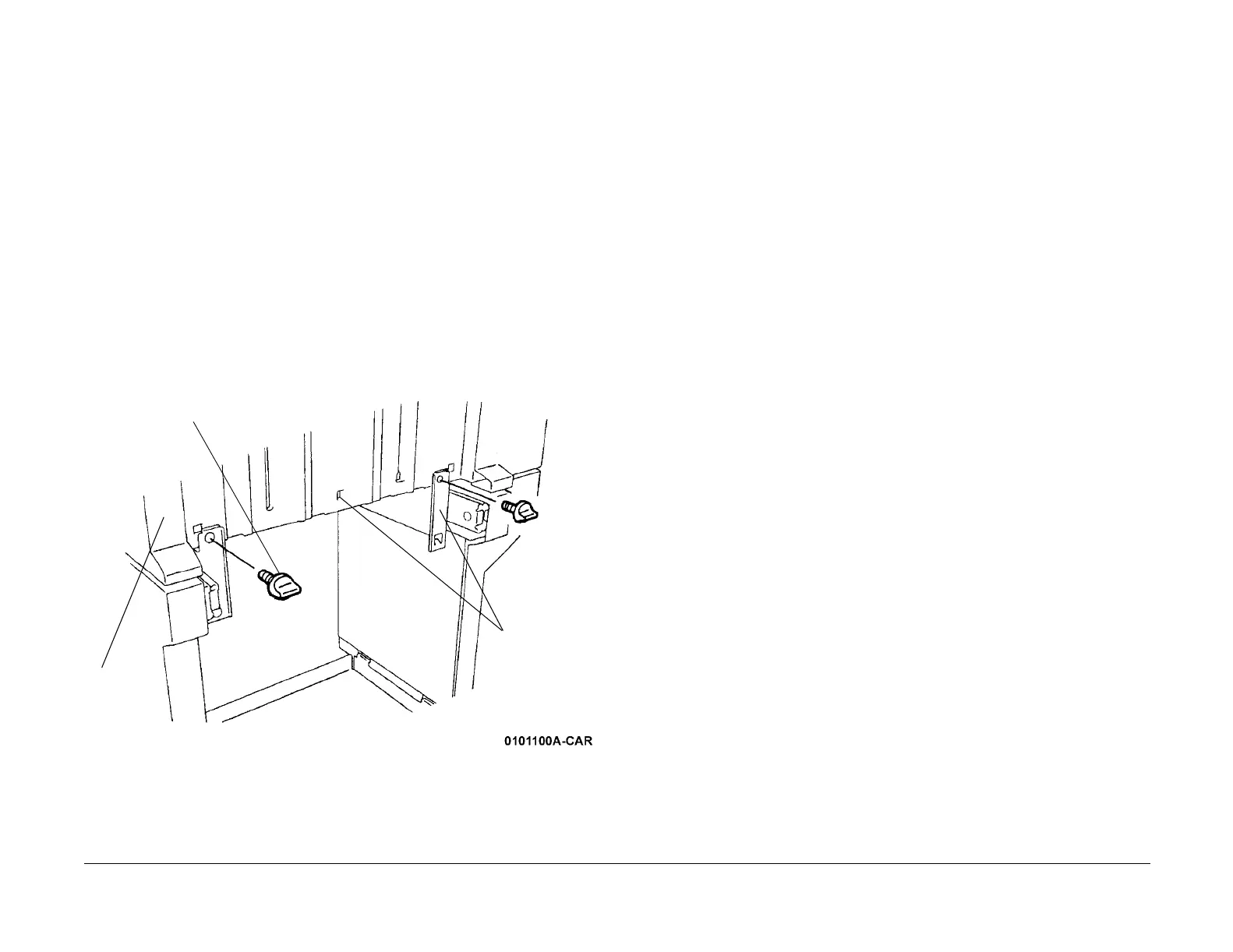

Figure 1 Removing Finisher from Rack
1
Remove Thumb-
screws (2)
2
Push Finisher
away from Rack
to disengage
Finisher
3
Lift to
Remove
Finisher
To Next Page
