09/03
4-108
DC 3535/2240/1632, WC M24
REP 12.6
Initial issue
Repairs and Adjustments
REP 12.6 Eject Roll Assembly
Parts List on PL 17.6
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment activities with
the power switch on or electrical power applied to the machine.
1. Remove the following parts:
a. Rear Cover (PL 17.5)
b. Stacker Tray (PL 17.1)
c. Right Cover (PL 17.1)
d. Front Cover (PL 17.5)

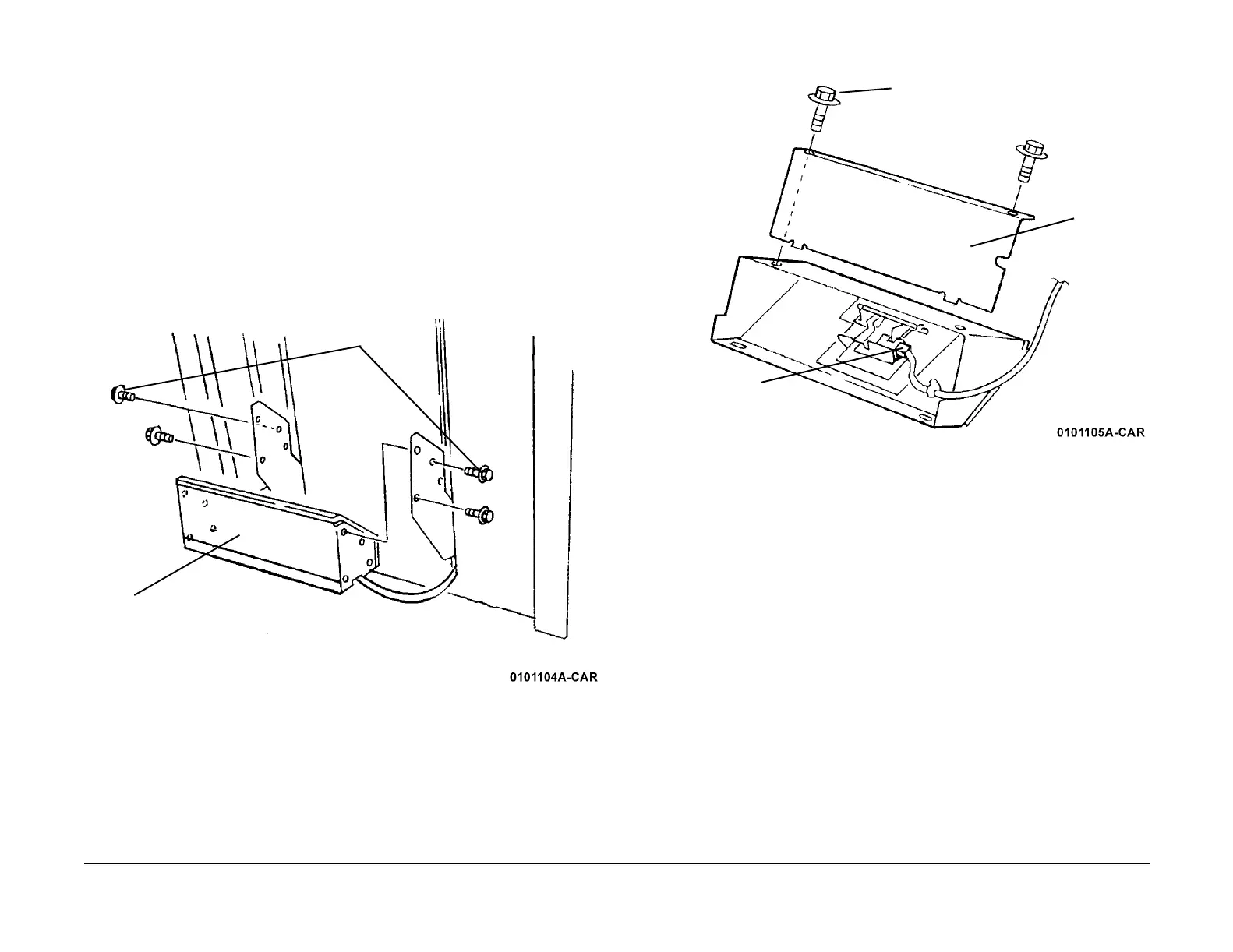

2. Remove the Bracket (Figure 1).
Figure 1 Remove the Bracket
3. Disconnect the connector (Figure 2).
Figure 2 Disconnecting the Connector
1
Remove
Screws (4)
2
Remove
Bracket
1
Remove
Screws (2)
2
Remove
Plate
3
Disconnect
Connector
To Next Page
