09/03
4-78
DC 3535/2240/1632, WC M24
REP 9.7
Initial issue
Repairs and Adjustments
REP 9.7 Toner Dispenser
Parts List on PL 6.1
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment activities with
the power switch on or electrical power applied to the machine.
1. Open Front Cover.
2. Remove Fuser Front Cover (REP 14.8).
3. Release Lever and move half way down.
4. Remove Dispenser Cover (REP 9.6).
5. Remove Drum Cartridges (REP 9.1).
CAUTION
Yellow dispenser must be removed first, followed in order by Magenta, Cyan, then Black. They
must be reinstalled in reverse order of removal.
6. Prepare to remove Toner Dispenser (Figure 1).
a. Carefully pull out toner outlet door while holding housing back to shut off toner outlet.

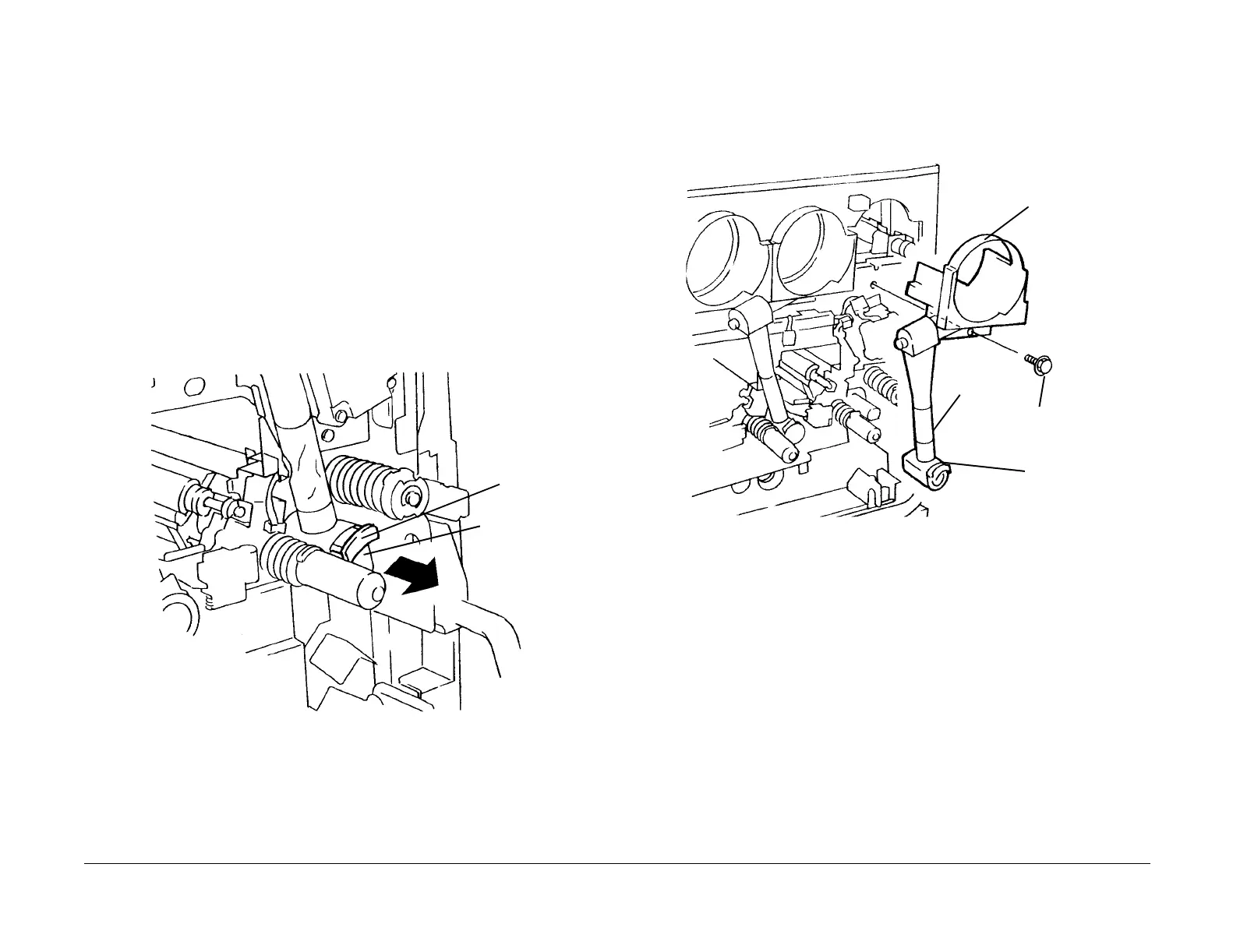

Figure 1 Closing Toner Outlet
7. Remove Toner Dispenser (Figure 2).
a. Remove Screw,
CAUTION
Connection tube may separate from upper or lower housing.
Agitator may disconnect if flex coupling is compressed enough so agitator hits inside bot-
tom of lower housing
b. Pull out Upper and Lower Housings together while ensuring flexible connection tube
remains connected.
Figure 2 Removing Toner Dispenser
Toner
Outlet
Door
Housing
Upper
Housing
Lower
Housing
Screw
Connection
Tube
To Next Page
