Xerox DocuColor 2240 Service Manual

09/03
5-15
DC 3535/2240/1632, WC M24
PL 2.6
Parts List
Initial issue

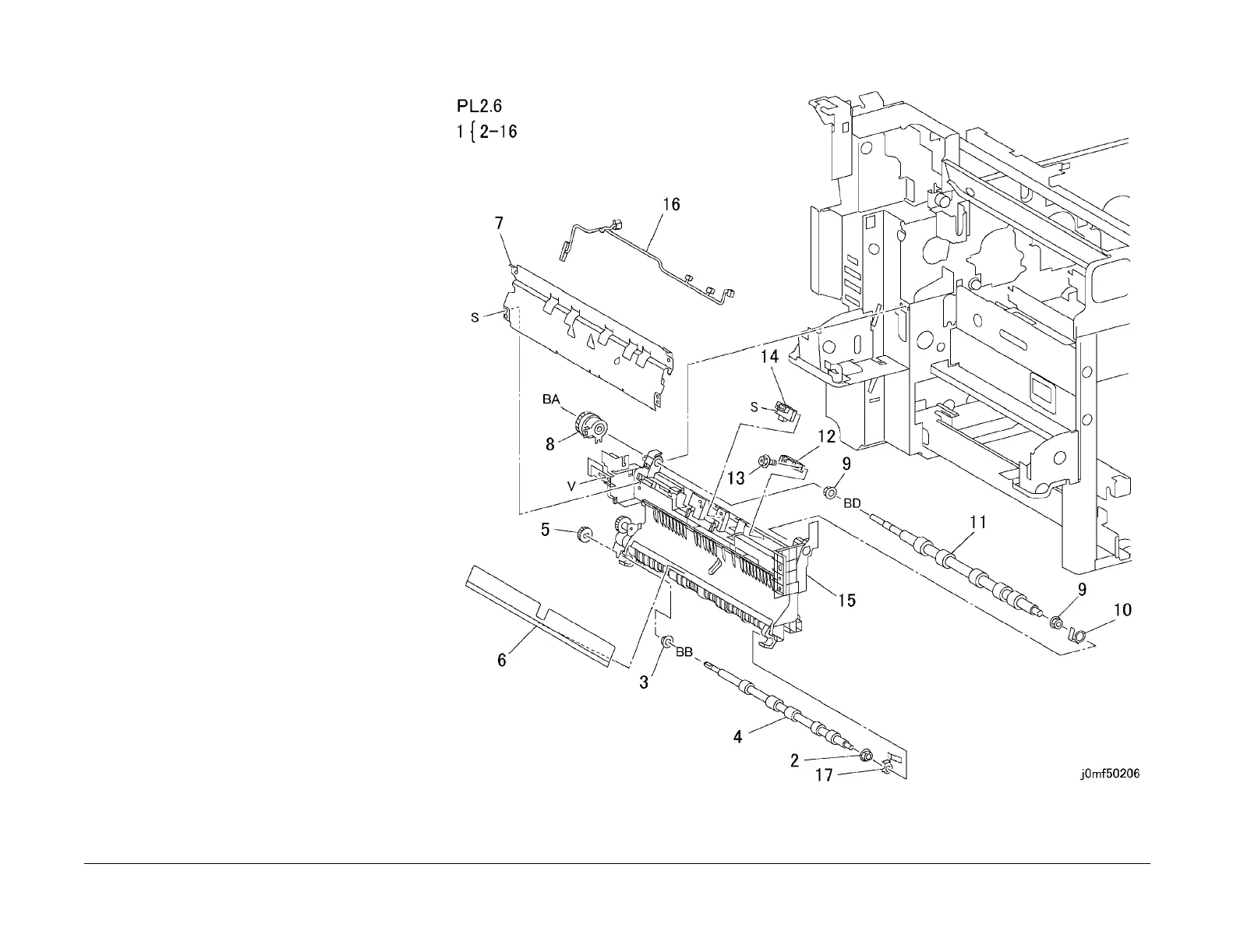

PL 2.6 Registration Transport
Item Part Description
1 059K24661 Registration Transport Assembly
(REP 8.6)
2 – Bearing (P/O PL 2.6 Item 1)
3 – Bearing (P/O PL 2.6 Item 1)
4 – Takeaway Roll (P/O PL 2.6 Item 1)
5 – Gear (22T) (P/O PL 2.6 Item 1)
6 – Paper Guide (P/O PL 2.6 Item 1)
7 – Registration Chute (P/O PL 2.6
Item 1)
8 121K22220 Registration Clutch
9 – Bearing (P/O PL 2.6 Item 1)
10 – Ground Plate (P/O PL 2.6 Item 1)
11 – Registration Roll (P/O PL 2.6 Item
1)
12 130E82650 Registration Sensor
13 – Screw (P/O PL 2.6 Item 1)
14 160K46290 OHP Sensor
15 – Registration Support (P/O PL 2.6
Item 1)
16 – Wire Harness (P/O PL 2.6 Item 1)
17 – Ground Plate (Not Spared)
