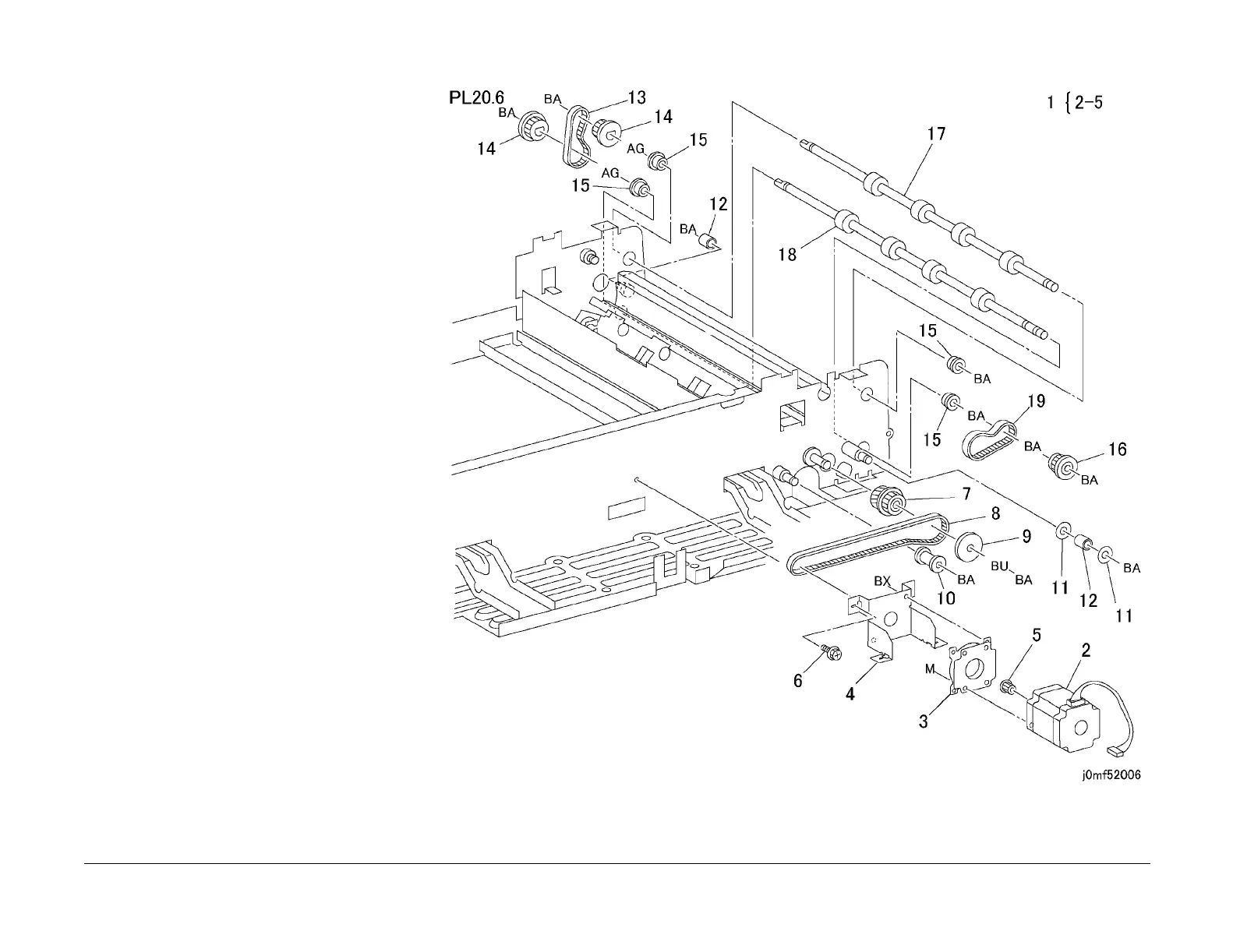

PL 20.6 DADF Belt Motor, Duplex Roll
Item Part Description
1 127K32690 DADF Belt Motor Assembly (REP
5.13)
2 – DADF Belt Motor (P/O PL 20.6 Item
1)
3 – Damper (P/O PL 20.6 Item 1)
4 – Bracket (P/O PL 20.6 Item 1)
5 – Pulley (P/O PL 20.6 Item 1)
6 – Screw (Not Spared)
7 007K86700 Gear Pulley
8 023E19990 Belt
9 – Spacer (Not Spared)
10 – Tension Roll (Not Spared)
11 – Spacer (Not Spared)
12 – Tension Roll (Not Spared)
13 023E20010 Belt
14 020E21050 Pulley
15 – Bearing (Not Spared)
16 020K91230 Pulley
17 022K37080 Upper Duplex Roll
18 022K37070 Lower Duplex Roll
19 023E12230 Belt
