DC 3535/2240/1632, WC M24
PL 2.5
Initial issue
Parts List

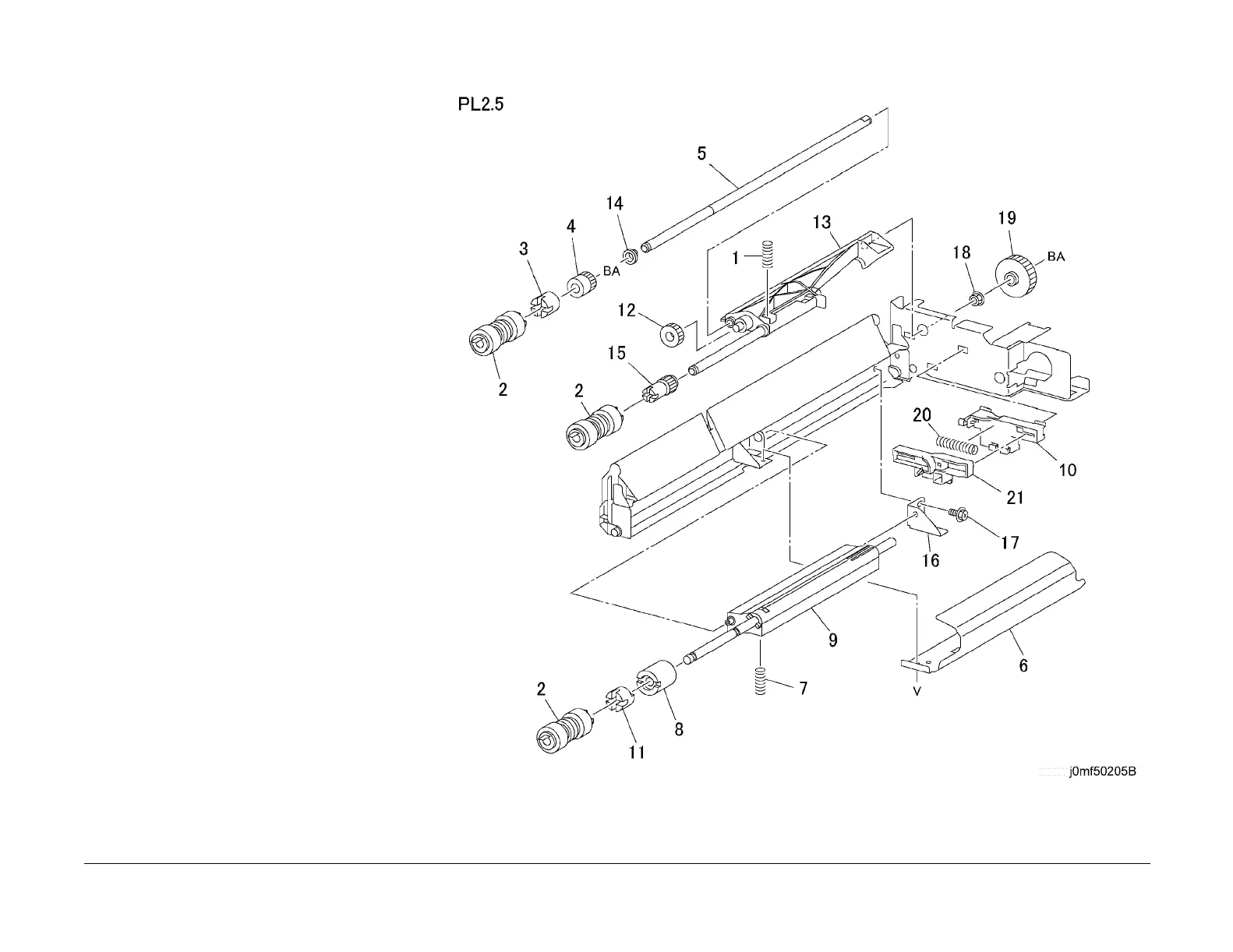

PL 2.5 Tray 1 Feeder: 2 of 2
Item Part Description
1 – Spring (Not Spared)
2 600K78460 Roll Kit (3 Rolls/Kit)
3 005K05890 One-way Clutch
4 – Gear (Not Spared)
5 – Shaft (Not Spared)
6 – Chute (Not Spared)
7 – Spring (Not Spared)
8 – Friction Clutch (Not Spared)
9 – Support (Not Spared)
10 – Holder (Not Spared)
11 – Spacer (Not Spared)
12 – Gear (31T) (Not Spared)
13 – Support (Not Spared)
14 – Bearing (Not Spared)
15 – Gear (Not Spared)
16 – Support (Not Spared)
17 – Screw (Not Spared)
18 – Bearing (Not Spared)
19 – Gear (35T) (Not Spared)
20 – Spring (Not Spared)
21 – Lever (Not Spared)
To Next Page
